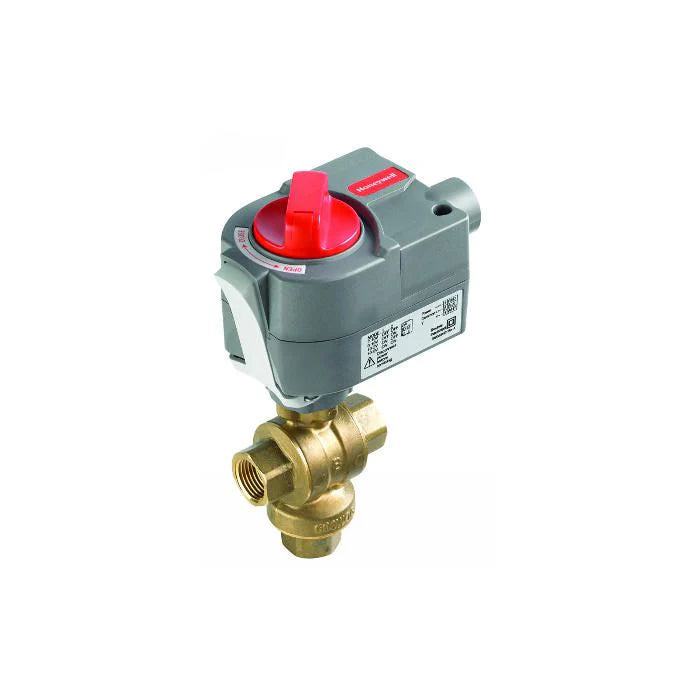

Honeywell VBN3AJPA3001 Ball Valve Assembly 3 Way 1/2 in NPT

Product Description

The Honeywell VBN3AJPA3001 is a three-way ball valve assembly designed for HVAC control. With a half-inch NPT connection, this valve is suitable for managing hot and chilled water and glycol solutions. It features a characterized control valve with an eight Cv rating, ensuring efficient flow control.

• Sizes available from one-half inch to three inches with internal female NPT connections.
• Field configurable for normally open or normally closed fail-safe position.
• Removable manual operating handle to control valve during installation or in case of power failure.

Product Highlights

The valve is designed to install in a globe valve T-pattern without the need for extra elbows or piping. It supports a wide range of Cv choices, ensuring flexibility in various HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VBN3AJPA3001

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Hot and chilled water with glycol solutions up to fifty percent
• Power Consumption: 6 VA
• Flow Characteristic: Equal percentage
• Operating Conditions: -4 F to 131 F (-20 C to 55 C)
• Electrical Connection: Field wiring 18 to 20 AWG to screw terminals, located under the removable access cover
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Maximum Safe Operating Rating: 360 psi
