Product Description

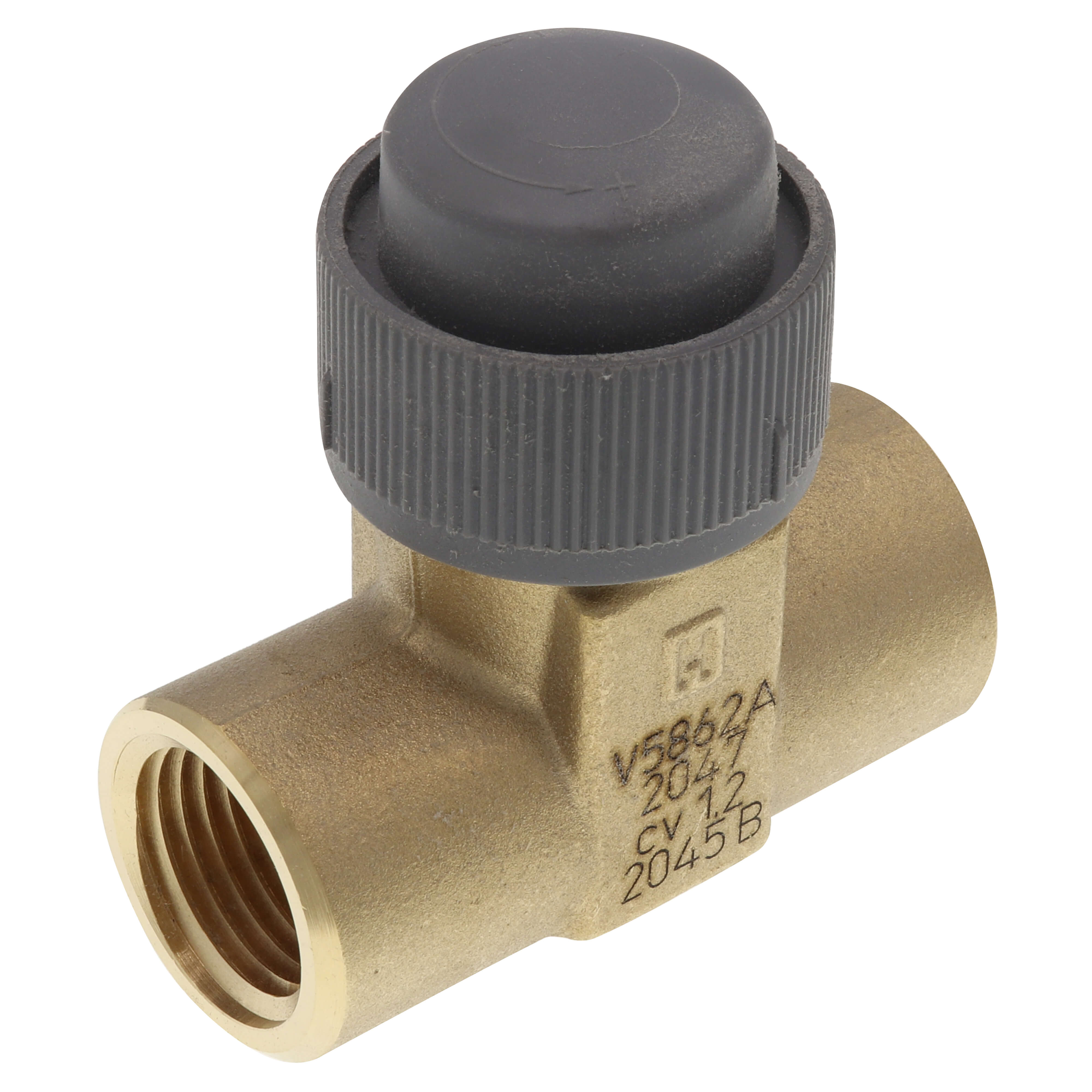

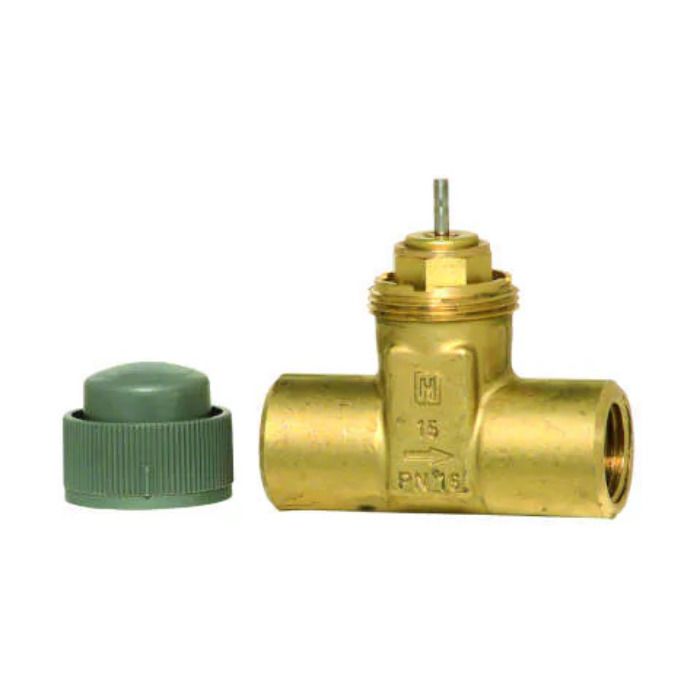

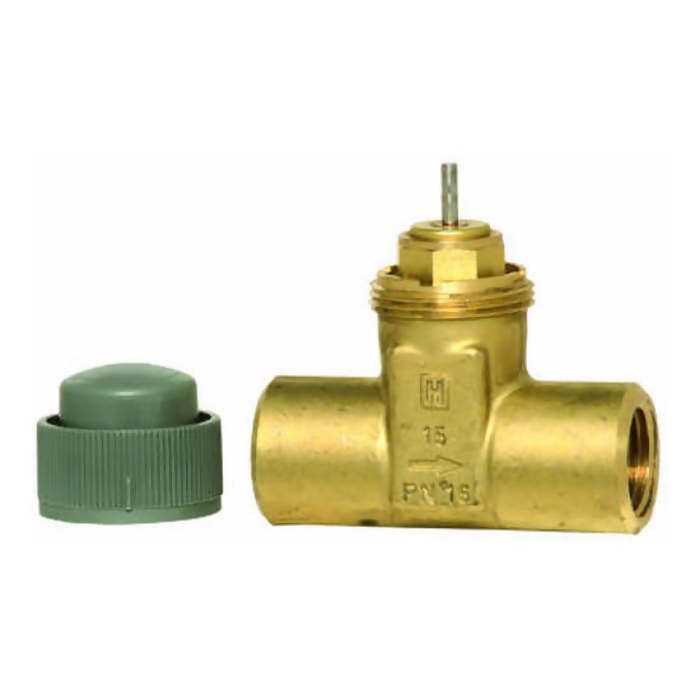

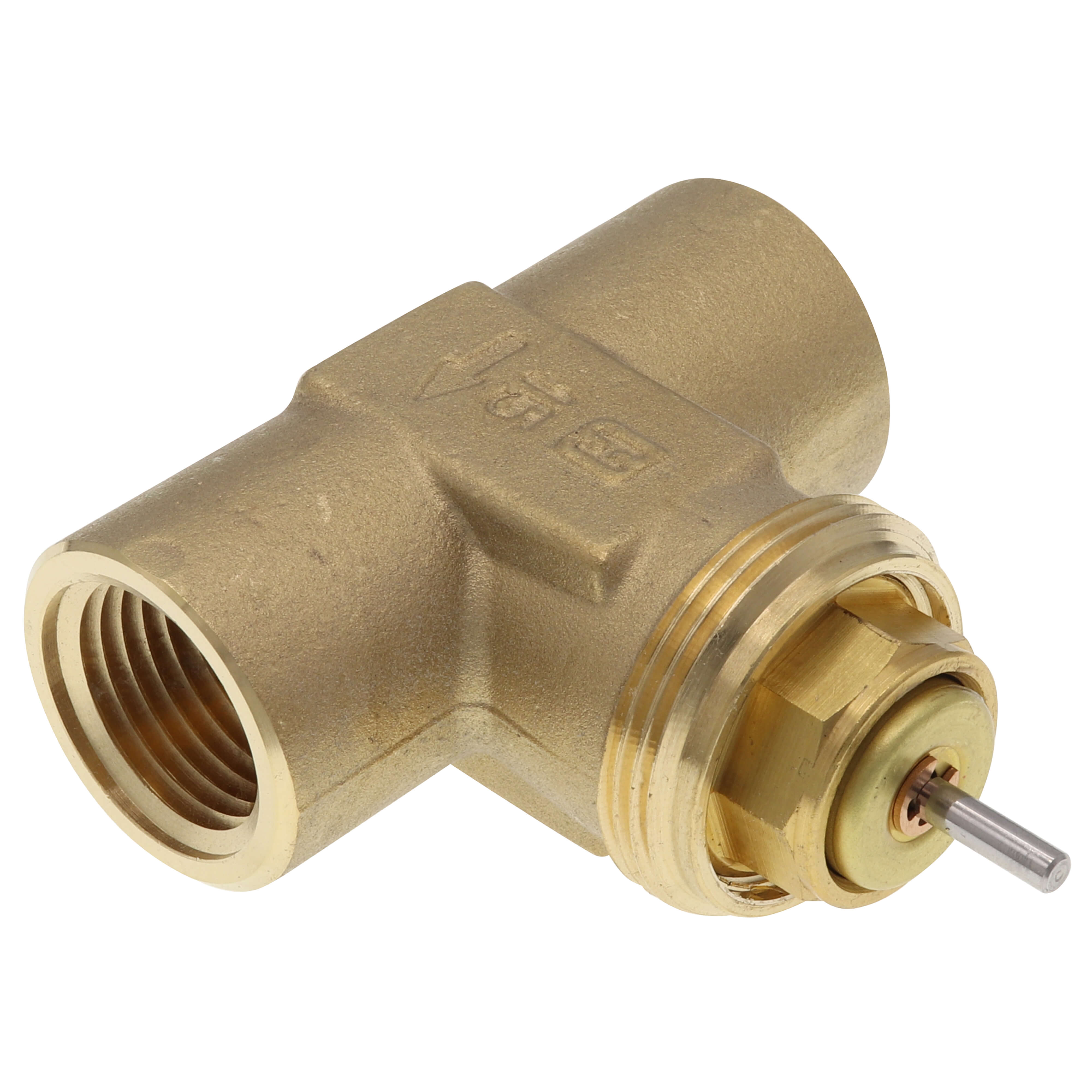

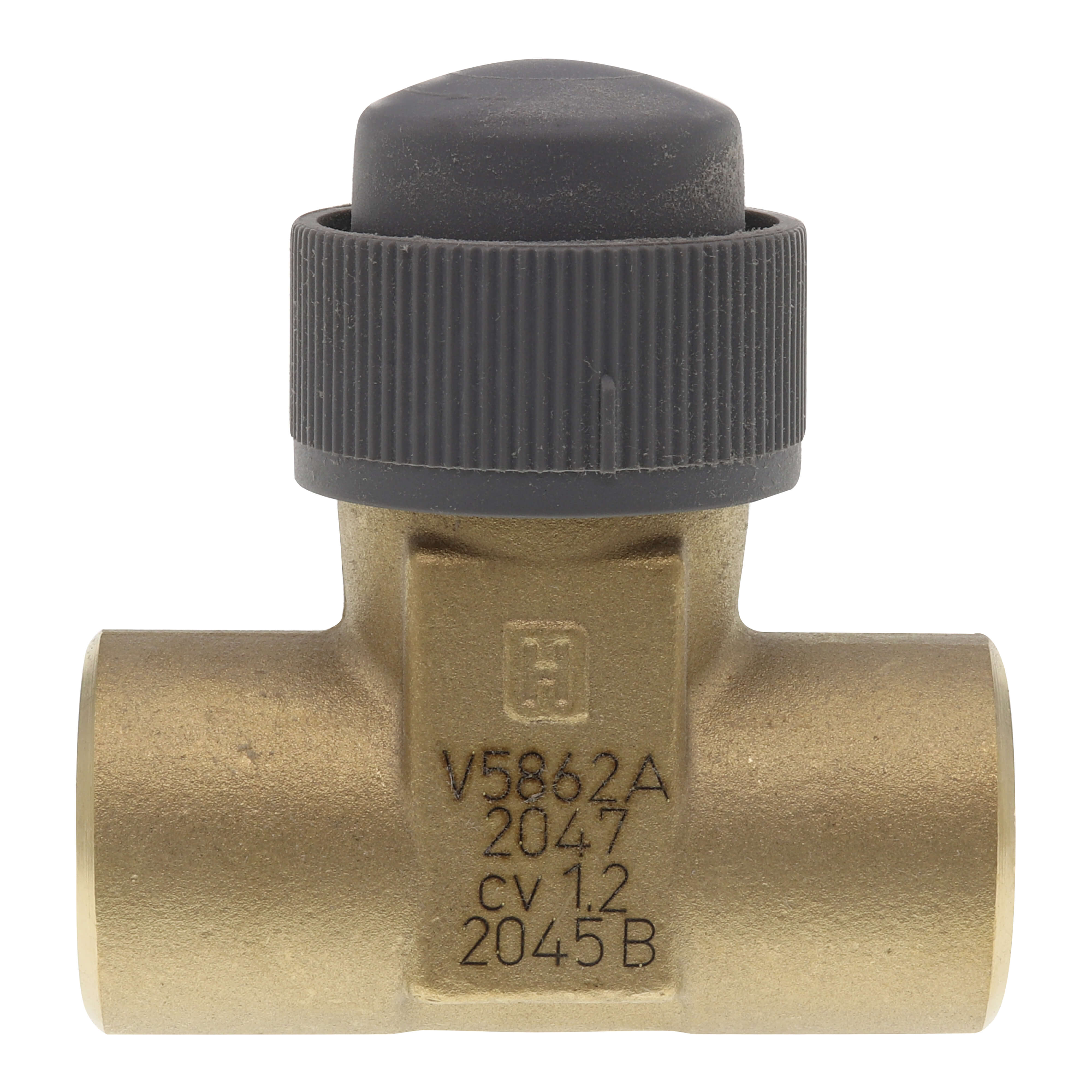

The HONEYWELL V5862A2047 is a two-way, 1/2 in NPT valve with a Cv of 1.2. This cartridge globe valve controls hot and chilled water for VAV terminal units, fan coil units, and small reheaters. It features a downward stem for close valve action and is used with M6410 and M7410 actuators.
- 1/2" NPT connection
- Flow capacity of 1.2 CV
- Controls hot and/or chilled water
Product Highlights
This two-way valve is designed for precise regulation of hot and chilled water in HVAC systems.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: V5862A2047
-
Country of Origin: Germany
Technical Specifications
-
Part Number: V5862A2047
-
Brand: Honeywell
-
Manufacturer: Honeywell, Inc.
-
Product Type: VALVE
-
UPC: 085267149389
-
MPN: V5862A2047
-
Category: Commercial Building Controls
-
Product: Valves and Valve Actuators
-
Style: Valves and Valve Actuators
-
Item Number: V5862A2047
-
Model: V5862A
-
Valve Size: 1/2"
-
Valve Connection: NPT
-
Piping Configuration: Straight
-
Body Material: Brass
-
Valve Application: Water
-
Max Pressure: 125 psi WOG
-
Valve Type: Cartridge Globe Valve
-
Body Pattern: Two-way
-
Flow Characteristic: Equal Percentage
-
Controlled Medium: Chilled or hot water with up to 50% Glycol
-
Connection Type: NPT (Female)
-
Max. Safe Operating Pressure: 235 psi
-
Valve Action: Stem down to close
-
Actuation: Must be purchased separately
-
Stem Travel: 1/4 in.
-
Ambient Temperature: 36 to 230 F
-
Leakage Rating: ANSI Class IV (0.01% of Cv maximum)
-
Used with: M6410A1029; M7410F1000; M6435A1004; M7435F1001; MP958
-
Service: Hot Water, Cold Water, And Glycol Solutions Up To 50% Concentration
-
Close Off Pressure: 174 psi
-
Operating Temperature: 32° to 140°F (0° to 60°C)
-
Flow Capacity (Cv): 1.2
-
Maximum Pressure: 174 psi
-
Product Group: BISS
-
Number of Items: 1.0
-
Type: 2-Way, Cartridge
-
For Use With: Water or Glycol Solution 50% Max
-
Agency Compliance: CRN
-
Coefficient of Volume: 1.2
-
Safe Working Water PSI: 240 psi
-
Max. Water Temp. (Deg. F): 36 to 248
-
Connection Type/Size (In.): (F)NPT 1/2
-
Description/Special Features: For Use With Series 1000 Actuators: M6410, M7410, M6435, M7435 & Mp958 Pneumatic Actuator
-
Country of Origin (subject to change): Germany
-
Materials Of Construction: Brass valve body and trim,
stainless steel stem
-
Media Compatibility: Hot or chilled water, 50% maximum
glycol
-
Media Temperature Range: 36° to 230°F (2° to 110°C)
-
Fluid Temperature - Minimum: 36 °F
-
Fluid Temperature - Maximum: 230 °F
-
Fluid Service: Water-Glycol Solution to 50%
-
Seat Material: Brass
-
Stem Material: Stainless Steel
-
Cartridge Material: Brass
-
Configuration: Straight-Thru
-
Specific Valve Action: Stem Down to Close
-
Leakage Rate: 0.01%
-
Rangeability: 100:1
-
ANSI Rating: ANSI Leakage Class IV
-
Compatible With Series: V58
-
Size: 1/2 in
-
Connections: FNPT
-
Stroke: 1/4"
-
Pattern: 2-way
