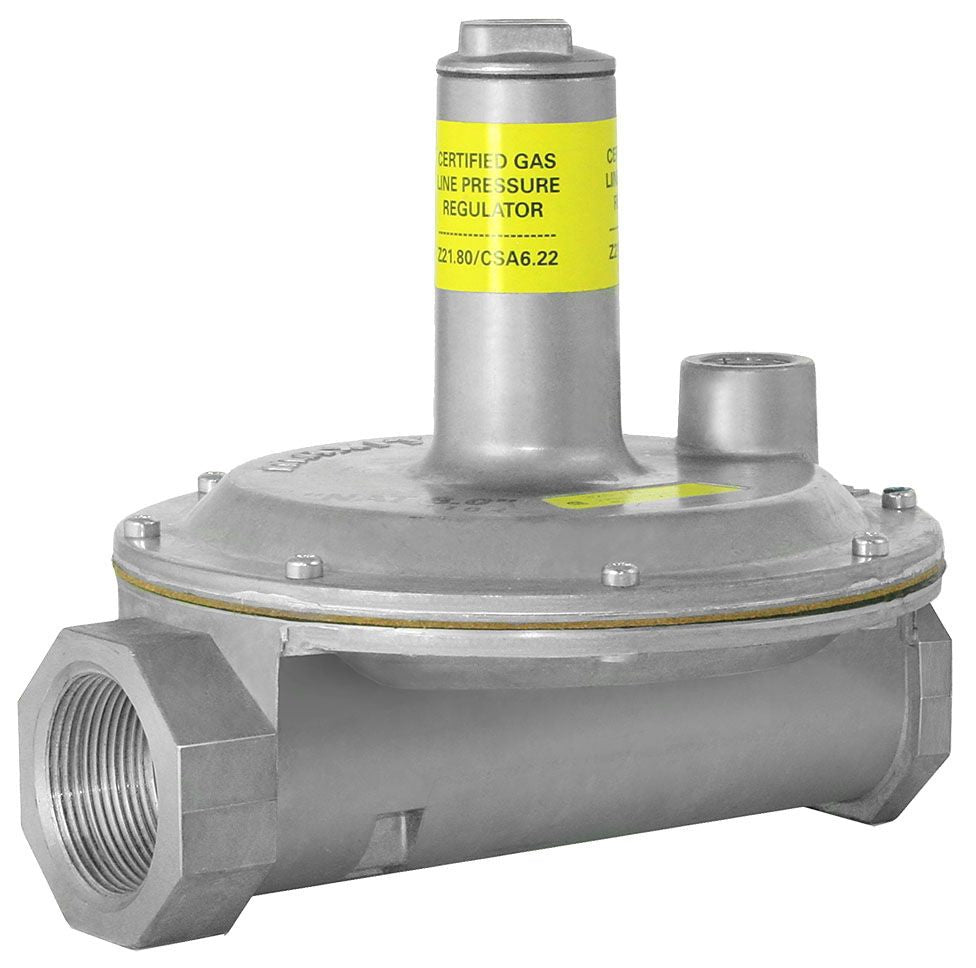

Maxitrol 325-3L-1/2 Line Regulator Aluminum 2 PSI Inlet Pressure

Product Description

The Maxitrol 325-3L-1/2 Line Regulator is an essential component for HVAC, plumbing, and industrial applications. Designed by Maxitrol, it features an aluminum body and a 2 PSI inlet pressure capability.

• Precise regulation from full flow to pilot flow
• Certified for various gases
• Includes linkage assembly for positive lock-up

Product Highlights

Maxitrol's 325-3L-1/2 regulator offers reliable and accurate pressure control, ideal for residential, commercial, and industrial applications.

Product Information

Standard Information

• Brand: Maxitrol
• MPN: 325-3L-1/2
• Product Name: Line Regulator
• Size: 1/2 Inch
• Body Material: Aluminum

Technical Specifications

• Inlet Pressure: 2 PSI
• Outlet Pressure: 7-11 WC
• BTU Capacity: 140,000 BTU/hr for single
• BTU Capacity (multiple): 250,000 BTU/hr
• Temperature Range: -40 to 205 deg F
• Connection Type: Threaded x Threaded (NPT)
• Standards: ISO7-1, CSA, CE, ANSI Z21.80/CSA 6.22
• Vent Connection Size: 1/8 Inch
• Mounting Type: Horizontal Upright
