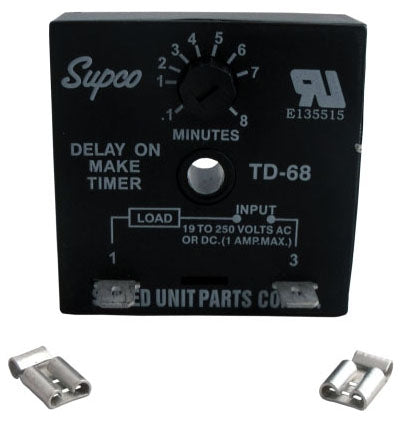

Supco TD68 Tile Delay On Make Timer 19 to 250 VAC 50/60 Hz

Product Description

Supco TD68 is a tile delay on make timer that operates with an AC/DC voltage range of nineteen to two hundred fifty volts at fifty to sixty hertz. It has an adjustable timing range from six seconds to eight minutes, and fixed timings at three or five minutes.

• Contains two quarter-inch male quick connect terminals.
• Supports non-positional one-hole mounting.
• UL approved for safety and reliability.

Product Highlights

This timer is designed for applications in air conditioning, refrigeration, heat pumps, and HVAC/R system compressors. It prevents damage from short cycling by ensuring a delay in operation.

Product Information

Standard Information

• Manufacturer: Supco
• Part Number: TD68

Technical Specifications

• Coil Voltage: 19 to 250 Volt AC 50/60 Hertz
• Contact Current Rating: 1 Amp (Load), 10 Amp (Inrush)
• Timing Mode: On Delay
• Timing Range: 6 Seconds to 8 Minutes (Adjustable), 3 or 5 Minutes (Fixed)
• Mounting: Non-Positional, 1-Hole
• Terminal Type: (2) 1/4 Inch Male Quick Connect Terminal
• Size: 2 Inch x 2 Inch x 0.75 Inch
• Operating Temperature Rating: 0 to 160 Deg F
• Initiate Time: 70 Millisecond
