SUPCO SUP-SM670 Utility Blower Motor Kit 120 VAC Replacement MPN

Product Description

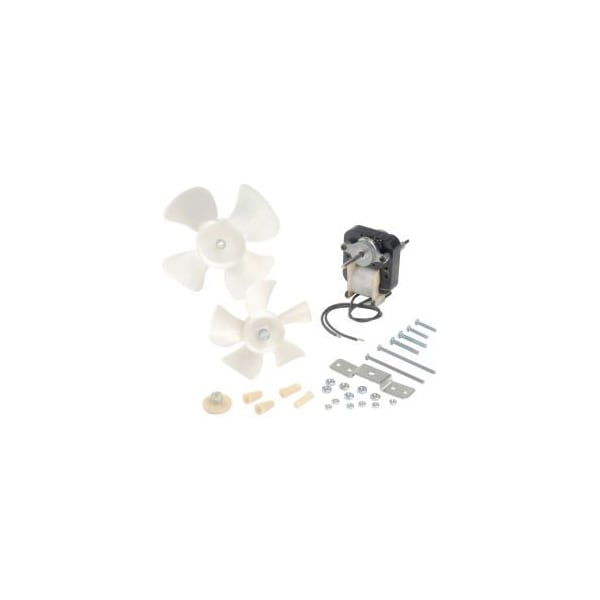

The SUPCO SUP-SM670 utility motor kit is designed for replacement of C-frame and 3.5 round style motors. This kit operates at one hundred twenty VAC and three thousand RPM. The motor allows for reversible rotation and utilizes a shaded pole design. This product is suitable for various applications including evaporators, exhaust fans, electric unit heaters, and range hoods.

• Includes fan blades FB402 and FB550
• Features impedance protection
• Includes mounting bracket, hub adapter, and 1/4 & 5/16 shaft adapters

Product Highlights

A comprehensive kit for HVAC professionals, featuring a reversible motor with a shaded pole design.

Product Information

Standard Information

• Brand: SUPCO
• MPN: SUP-SM670

Technical Specifications

• Voltage: 120 VAC
• RPM: 3000
• Shaft Diameter: 0.1875 inches
• Shaft Length: 1.25 inches
• Rotation: Reversible
• Motor Type: Shaded Pole
• Mounting Type: Universal
• Full Load Amps: 0.55
• Cycle/Hertz: 50/60 Hz
• Duty: Continuous Running Duty
• Lead Length: 8 inches
• Maximum Ambient Temperature: Not Rated in this application
• Insulation Class: Unrated
• Number of Bearings: 2
• Approvals: CSA Certified, UL Recognized
• Weight: 1.4 lbs
• Dimensions: 3.5 x 3.5 x 3.5 inches
• Country of Origin: Brazil
