SUPCO SUP-IG4000 Universal Flat Silicon Carbide Igniter Kit

Product Description

The SUPCO SUP-IG4000 is a universal flat igniter kit optimized for various heating applications. It features a silicon carbide construction and is compatible with numerous OEM furnace and boiler igniters. This kit comes complete with brackets and hardware for straightforward installation. It is specifically designed to replace all Robertshaw igniter part numbers.

• Replaces hundreds of OEM furnace and boiler igniters.

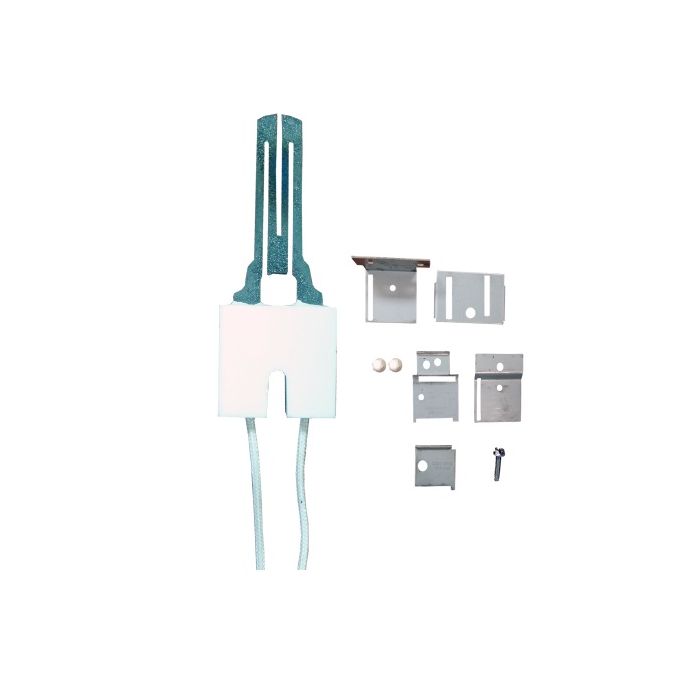

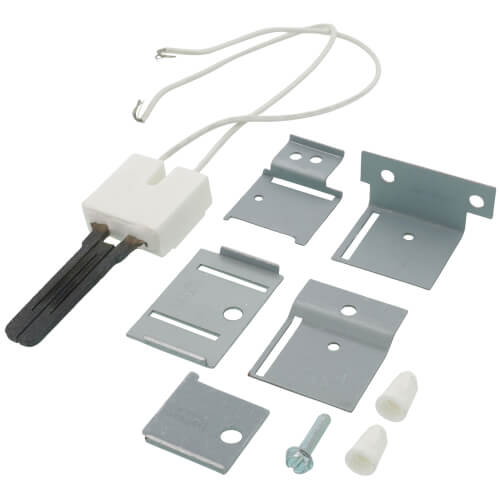

• Includes brackets and hardware for installation.
• Features a silicon carbide design for durability.

Product Highlights

Ideal for replacing igniters in a variety of heating systems.

Product Information

Standard Information

• Brand: SUPCO
• MPN: SUP-IG4000

Technical Specifications

• Voltage: 120 VAC
• Current: 3.5 to 5.0 Amps
• Cold Resistance: 40-100 Ohms at 75°F +/- 10°F
• Minimum Temperature: 1800°F / 980°C at 98 Volts
• Maximum Temperature: 3100°F / 1705°C at 132 Volts
• Time to Temperature: less than 17 seconds at 115 +/- 10 VAC
• Resistance: 50 to 1100 Ohms
• Igniter Material: Silicon Carbide
• Applications: Pool heaters, Unit heaters, Water heaters, Boilers, Furnaces
