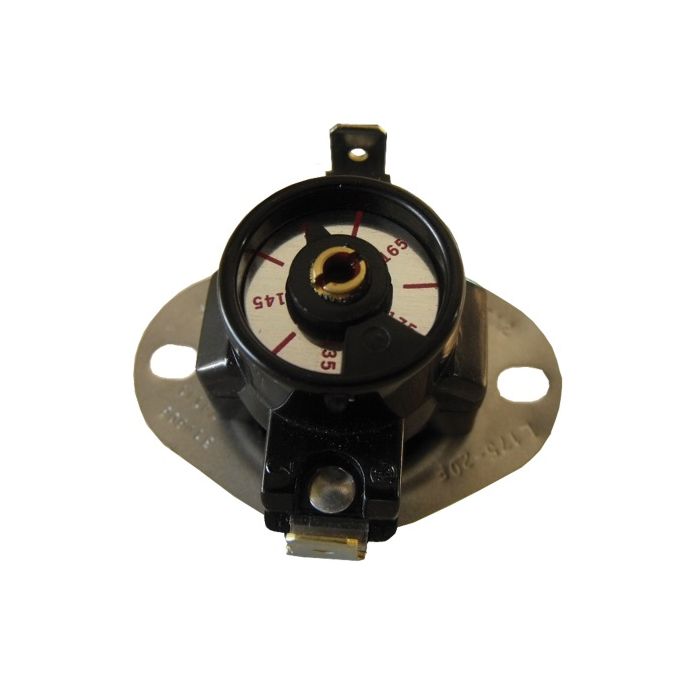

SUPCO SUP-AT013 Adjustable Fan or Limit Thermostat

Product Description

The SUPCO SUP-AT013 is an adjustable thermostat designed for fan or limit operation. It features a bimetal disc that measures temperature accurately. This thermostat is suitable for various electrical applications, particularly for heaters and dryers.

• Adjustable operating temperature range from one hundred seventy-five degrees Fahrenheit to two hundred fifteen degrees Fahrenheit.
• Offers a forty-degree adjustable range.
• Equipped with convenient one-quarter quick connect terminals.

Product Highlights

This thermostat is built for reliability in temperature control, making it essential for trade professionals.

Product Information

Standard Information

• Brand: Supco
• Manufacturer: Supco

Technical Specifications

• Supplier Part #: AT013
• Alt Part #: SEAT013
• Operating Temperature Range: 175°F to 215°F (79.4°C - 101.6°C)
• Differential: 40°F
• Voltage: 120/240 VAC
• Resistive Amps @ 120/240V: 25A
• FLA @ 120V/240V: 14A/10A
• LRA @ 120V/240A: 72A/60A
• Cycle/Hertz: 60 Hz
• Phase: Single
• Switch Action: Adjustable
• Approvals: UL Recognized
• Prop 65: Yes
