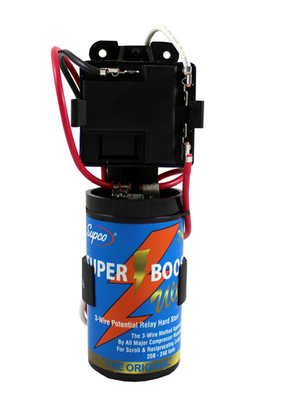

SUPCO SUP-3W1 3-Wire Hard Start Kit

Product Description

The SUPCO SUP-3W1 is a hard start kit designed for applications where additional starting power is needed. This product includes a potential relay and a start capacitor, offering a reliable 3-wire solution. It is suitable for hard starting compressors and low voltage conditions. Ideal for any single-phase air conditioner or refrigeration unit, the kit helps facilitate quick restarts and provides voltage sensing capabilities.

• Includes EZ snap bracket for easy installation.
• Features a mechanical potential relay.
• Provides a true 3-wire solution.

Product Highlights

Product Information

Standard Information

• Brand: SUPCO
• MPN: SUP-3W1

Technical Specifications

• Capacitor Voltage: 330 VAC
• Range (HP): 1 to 3 HP
• Capacitor (MFD): 88 to 108 MFD
• Operating Voltage: 208 to 277 VAC
• Vmax @ 40°C: 332 VAC
• Resistance +/- 10% at 25°C: 5600 ohms
• Pick Up: 162-175 @ 25°C
• Drop Out: 40-90 @ 25°C
• Applications: Hard starting compressors, low voltage situations, suitable for any single-phase air conditioner or refrigeration unit
