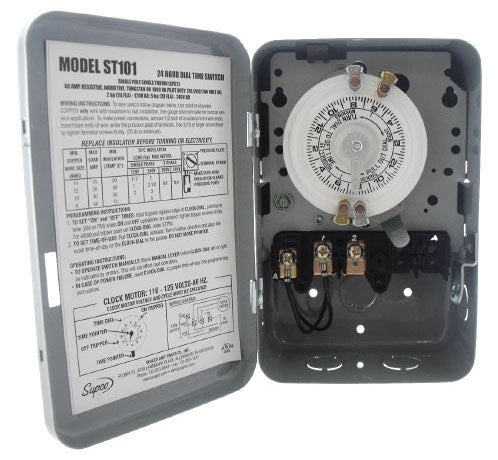

Supco ST101 120 V, 40 A, 2 HP, 1000 VA, SPST, NEMA 1, Steel, 10-Operation, 24 Hr, Electromechanical Timer Switch

Product Description

The Supco ST101 is a 120 Volt, 40 Amp, 2 Horsepower, 1000 VA, SPST Electromechanical Timer Switch. Designed for versatile applications, it provides reliable time controls for various electrical loads.

• Compatible with multiple applications including pool filter pumps, lighting, and greenhouse ventilation.
• Features a manual ON/OFF switch for easy operation.
• Offers a maximum of 10 operations with a minimum ON time of one hour and minimum OFF time of two hours.

Product Highlights

This timer switch is suitable for indoor and outdoor use, ensuring proper scheduling of equipment and appliances.

Product Information

Standard Information

• Brand: Supco
• MPN: ST101

Technical Specifications

• Voltage Rating: 120 Volt
• Current Rating: 40 Amp (Resistive/Tungsten)
• Power Rating: 2 HP at 120 Volt, 5 HP at 240 Volt, 1000 Volt Amp (Pilot Duty)
• Maximum Number of Operations: 10
• Minimum ON Time: 1 Hour
• Minimum OFF Time: 2 Hour
• Operating Temperature: -22 to 158 Degrees Fahrenheit
• Enclosure: NEMA 1
• Material: Steel
• Size: 5.3 Inches Width x 3 Inches Depth x 7.9 Inches Height
• Approval: UL
• Applications: Off-Cycle Defrost, Pool Filter Pump and Heater, Indoor and Outdoor Lighting, Sprinkler Systems, General Purpose Timer Switch
