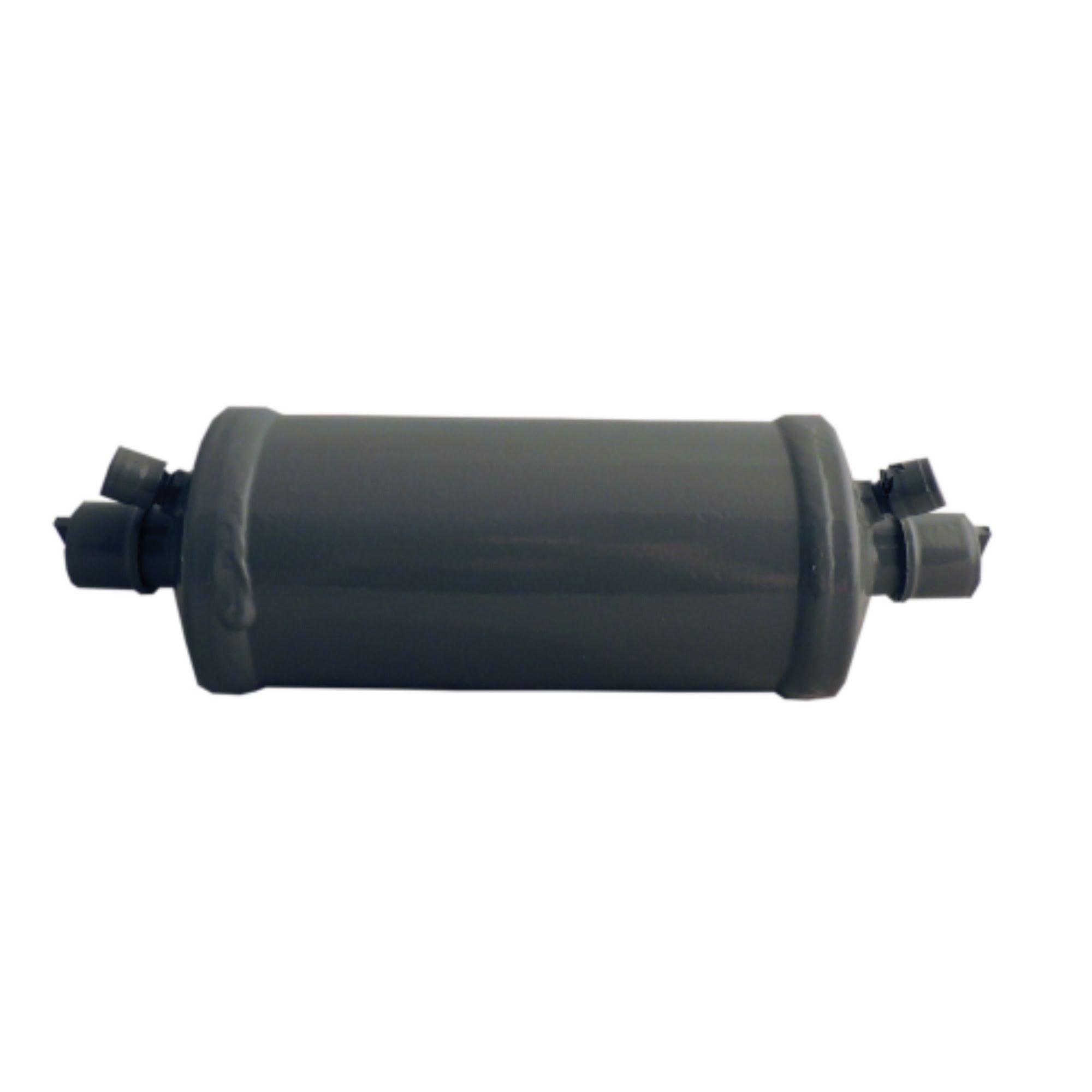

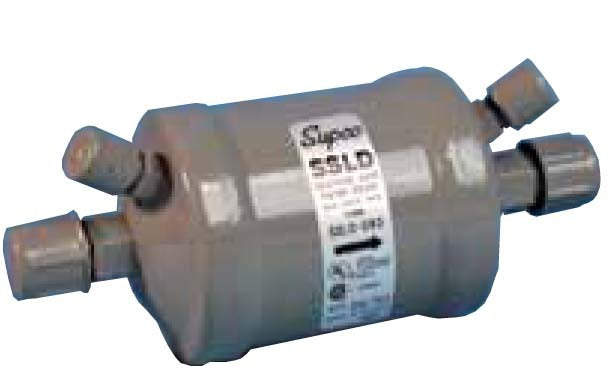

Supco SSLD165S Suction Line Drier 5/8 Odf (16 cu in) replaces 20149

Product Description

The Supco SSLD165S is a suction line filter-drier designed to remove moisture and solid contaminants from refrigeration and air conditioning suction lines. It features a 5/8 in Odf connection, 16 cubic inch moisture capacity, and 40 micron filtration to protect compressors in 1 to 3-1/4 ton systems. Construction details include a 500 psig pressure rating, epoxy powder-coated finish, dual access valves, and solid copper fittings.

• 5/8 in Odf connection with 16 cu in moisture capacity and 40 micron filtration
• 500 psig maximum working pressure; dimensions approximately 2-1/2 in diameter x 6-9/16 in length
• Epoxy powder-coated finish with solid copper fittings and dual access valves; compatible with refrigerants including R290

Product Highlights

Suction line filter-drier, 5/8 in Odf, 16 cu in volume, 40 micron filtration, 500 psig

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SSLD165S
• Country of Origin: China
