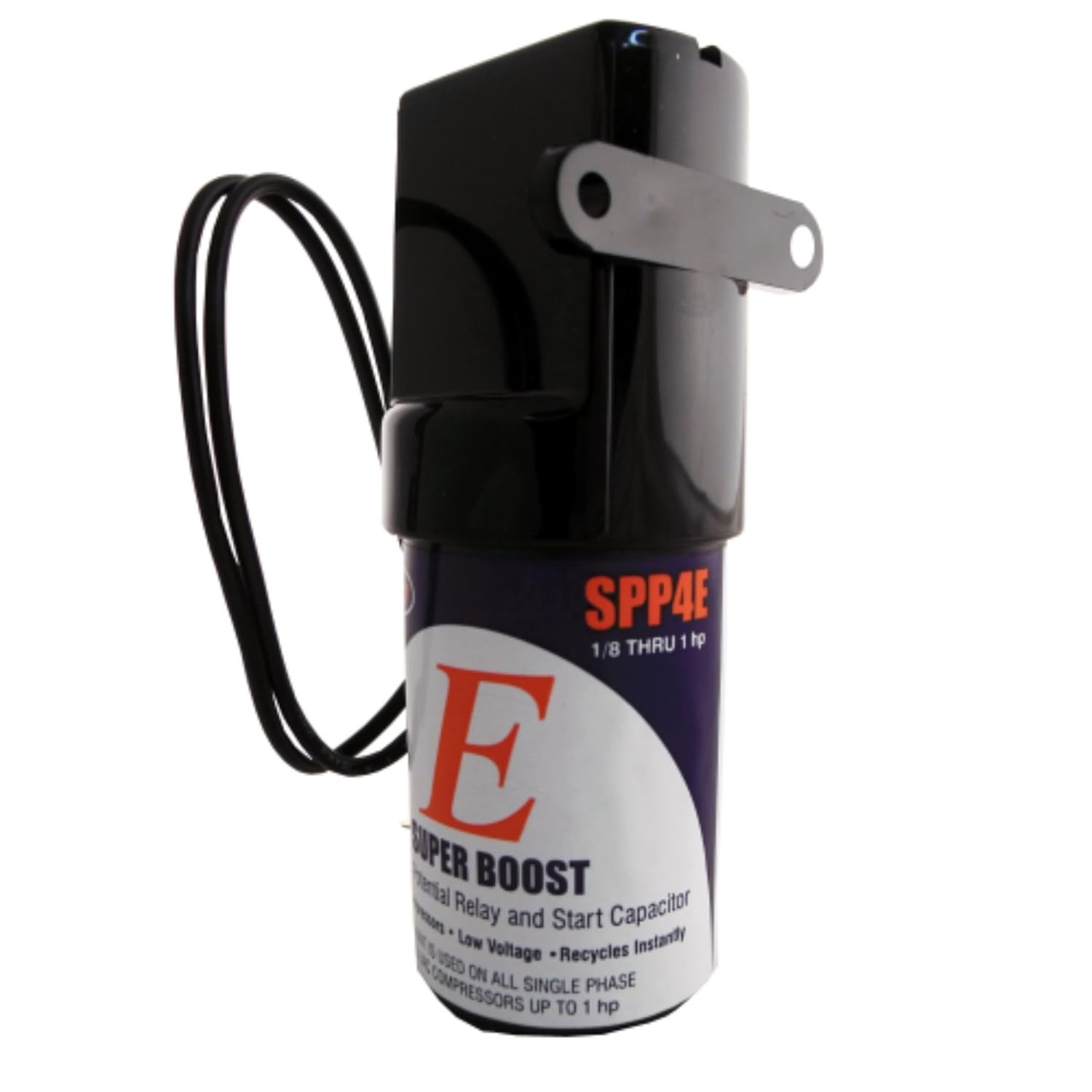

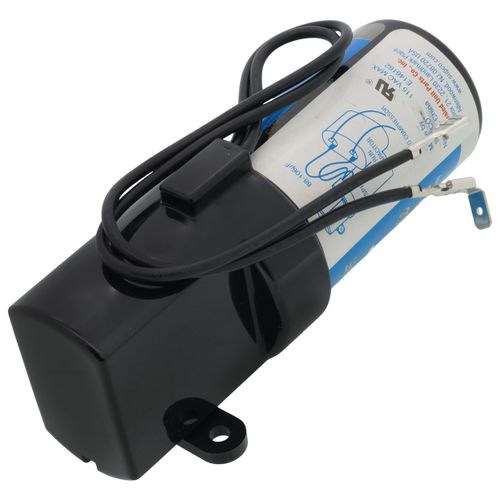

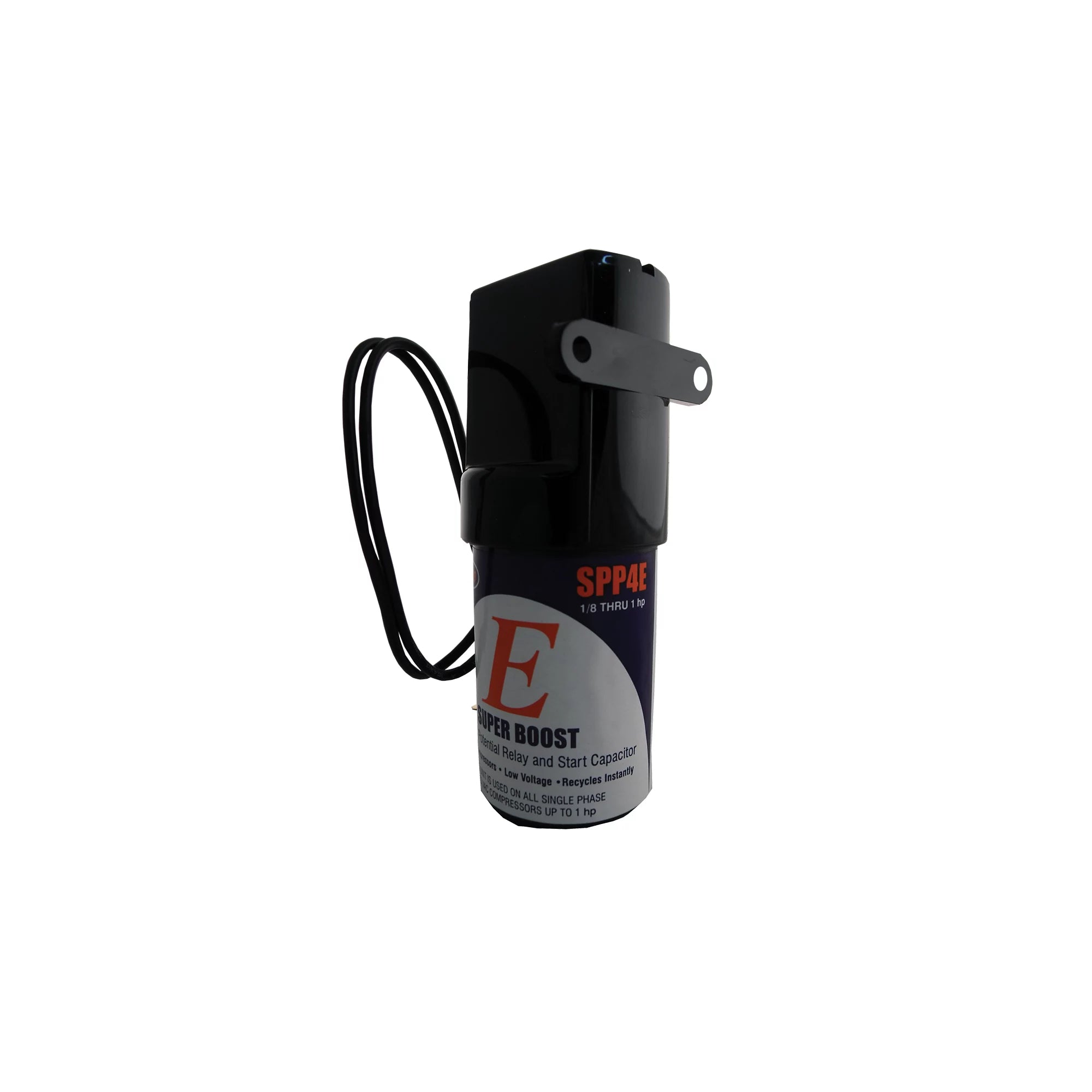

Supco SPP4E electronic potential relay/start capacitor hard start kit 1/8 - 1 hp

Product Description

The SUPCO SPP4E is an Electronic Potential Relay/Start Capacitor Combination Hard Start Kit designed for 1/8 - 1 Hp applications. This kit features an electronic timing circuit and state-of-the-art electronic potential relay technology, providing enhanced reliability for hard-starting compressors. It operates within a voltage range of 90-277 VAC and is suitable for single-phase air conditioner and refrigeration units, including PSC/CSIR types.

• Electronic Potential Relay Technology
• Backup electronic timing circuit to protect the compressor
• Easy 2-wire installation

Product Highlights

Enhances compressor startup performance with reliable electronic potential relay technology.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SPP4E
• Country of Origin: Brazil

Technical Specifications

• Manufacturer: Supco
• Brand: Supco
• Model Number: SPP4E
• Capacitance: 88-106 uF
• Frequency: 50/60 Hz
• Application: 1-Phase Air Conditioner/Refrigerant Unit, Hard Starting Compressor, Low Voltage Situation
• Phase: Single
• Relay Type: Electronic Potential Relay
• Type: EPR Relay
• Certifications: UL Recognized, NATE
• Input Voltage: 90-277 VAC
• Horsepower: 1/8 to 1 HP
• Compatible Compressor Types: PSC/CSIR
• Series: E Series
