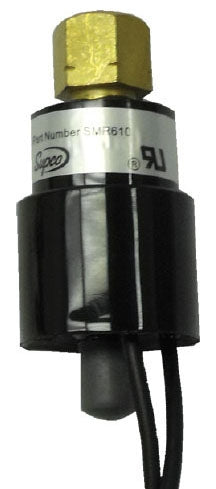

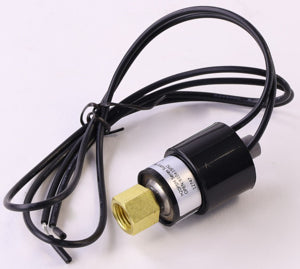

Supco SMR610 High Pressure Switch 610 PSI Manual Reset

Product Description

The Supco SMR610 is a high pressure switch designed for refrigeration systems, air conditioning systems, and heat pump systems. This pressure switch operates with voltages of 24, 120, or 240 AC and can handle up to 650 PSI. The SMR610 is equipped with a manual reset feature and a SPST (Single Pole Single Throw) contact configuration.

• Operating Pressure Range: 0 to 650 PSI
• Connection Type: 1/4 Inch SAE Female Flare
• Voltage Rating: 24/120/240 Volt AC

Product Highlights

This product is ideal for HVAC applications and provides reliable performance under pressure conditions. Its manual reset function ensures safety and control during operation.

Product Information

Standard Information

• Brand: Supco
• MPN: SMR610

Technical Specifications

• Type: Encapsulated, Non-Adjustable, High Pressure Open on Pressure Rise
• Operating Pressure Rating: 0 to 650 PSI
• Cut-Out Pressure Rating: 610 PSI (Open)
• Maximum Surge Pressure Rating: 5000 PSI
• Contact Rating: 12 to 28 Volt AC/DC 10 Amp, 48 Volt AC/DC 5 Amp
• Cycle Life: 100000 Average at Rated Load
• Lead Length: 18 inches
• Temperature Rating: 20 to 176 Deg F (Ambient), 60 to 250 Deg F (Fluid)
