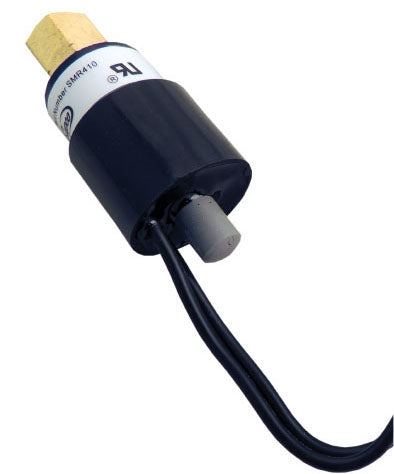

Supco SMR410 Pressure Switch 24/120/240 VAC Operating 410 PSI Open

Product Description

The Supco SMR410 is a pressure switch designed for HVAC applications. This device operates at 24, 120, or 240 volts AC and can handle up to 10 amps, making it suitable for various refrigeration and air conditioning systems. The operational pressure ranges from zero to six hundred fifty PSI with a maximum open setting at four hundred ten PSI. This switch is encapsulated and non-adjustable, featuring a manual reset function.

• Operates at voltages of 24, 120, or 240 VAC
• Rated for a maximum of 10 amps
• Includes manual reset feature for safety

Product Highlights

The SMR410 ensures reliable operation in refrigeration and air conditioning systems, maintaining safety and efficiency.

Product Information

Standard Information

• Brand: Supco
• Model: SMR410

Technical Specifications

• Operating Voltage: 24/120/240 VAC
• Operating Pressure Range: 0 to 650 PSI
• Cut-Out Pressure Rating: 410 PSI (Open)
• Connection Type: 1/4 Inch SAE Female Flare
• Contact Configuration: SPST
• Contact Rating: 12 to 28 Volt AC/DC 10 Amp
• Maximum Surge Pressure Rating: 5000 PSI
• Temperature Rating: 20 to 176 Degrees F (Ambient), 60 to 250 Degrees F (Fluid)
• Life Cycle at Rated Load: 100000 Average
• Lead Length: 18 Inches
