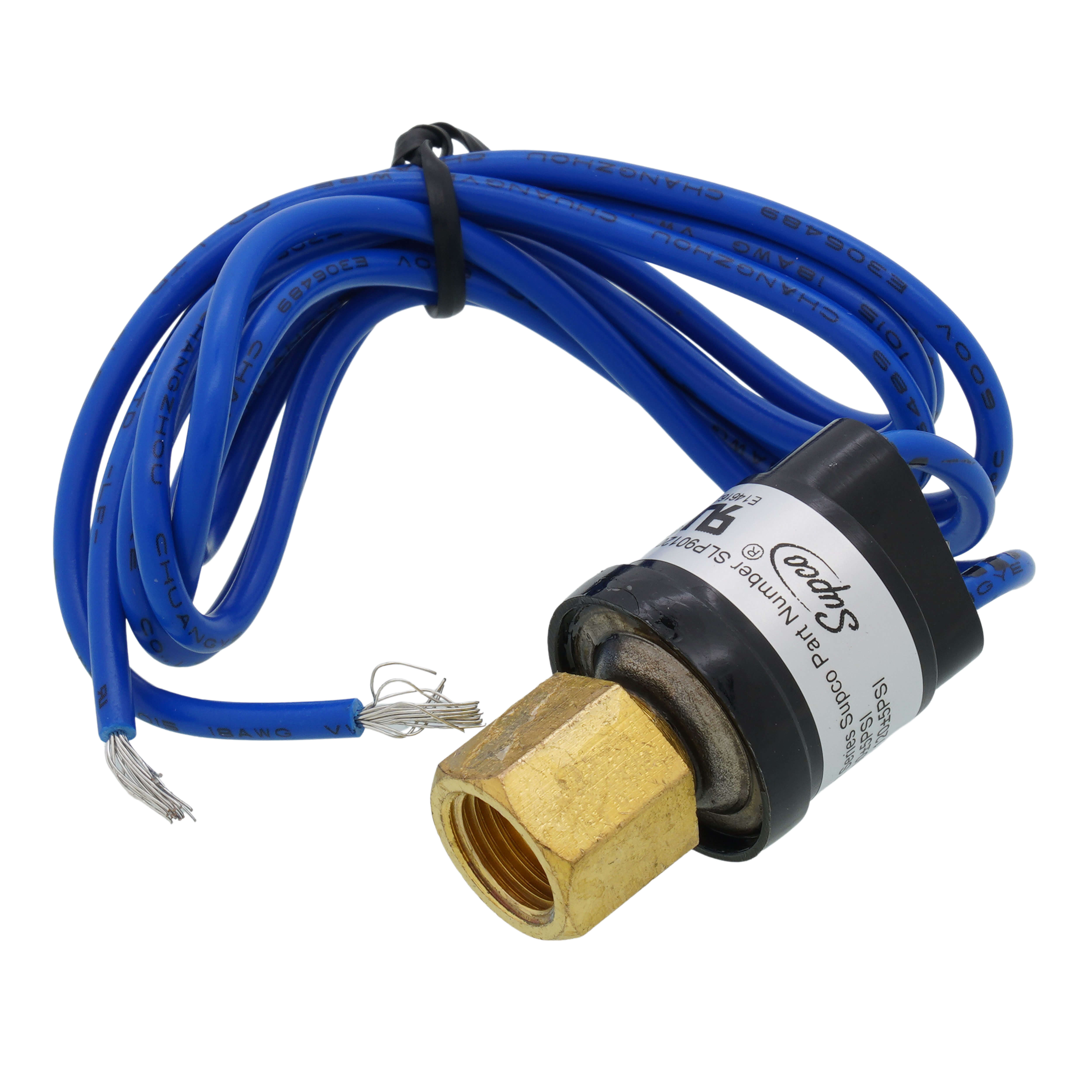

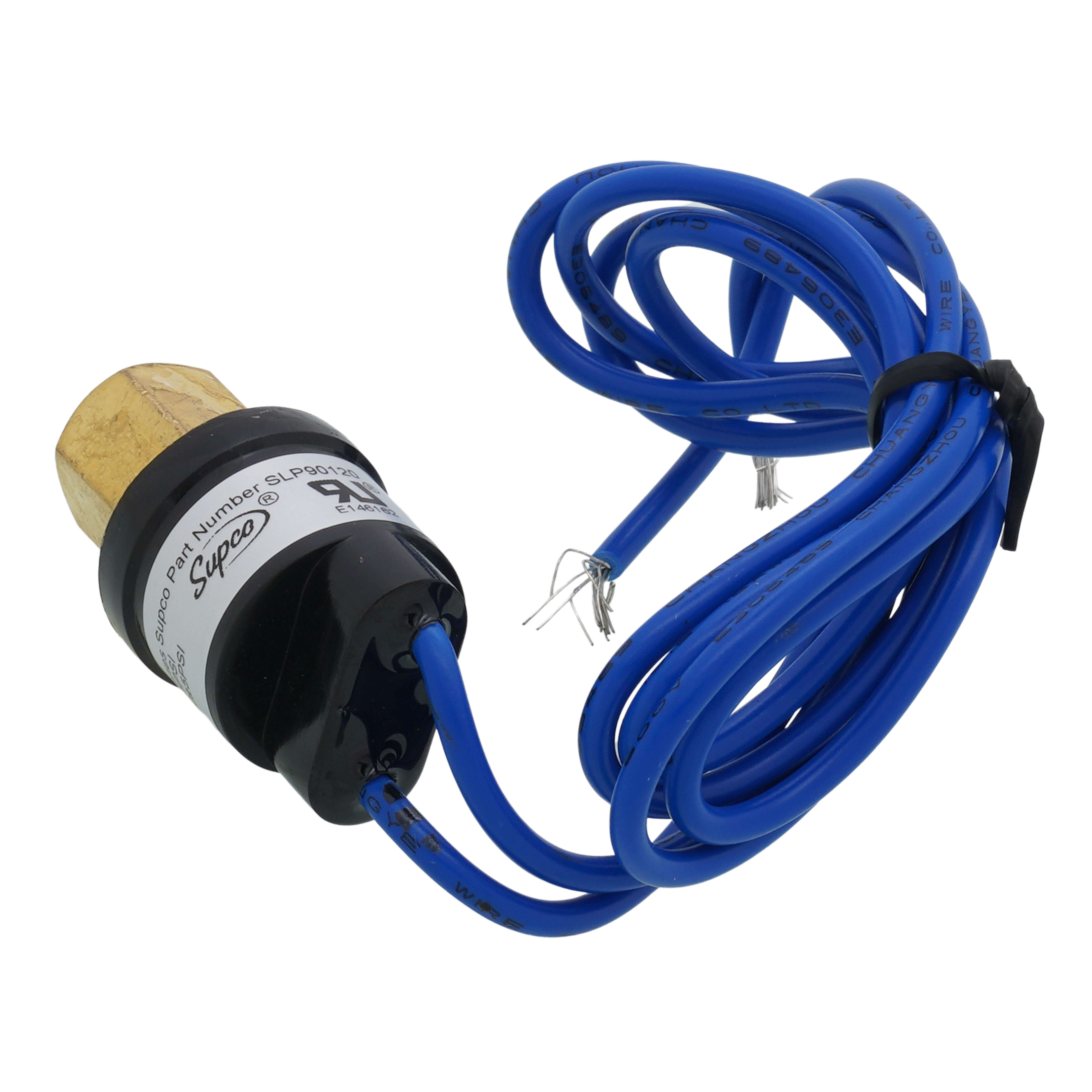

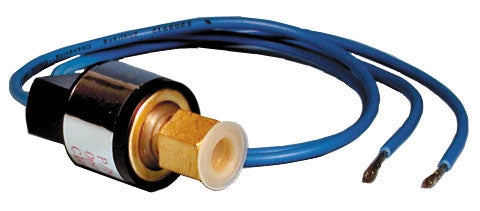

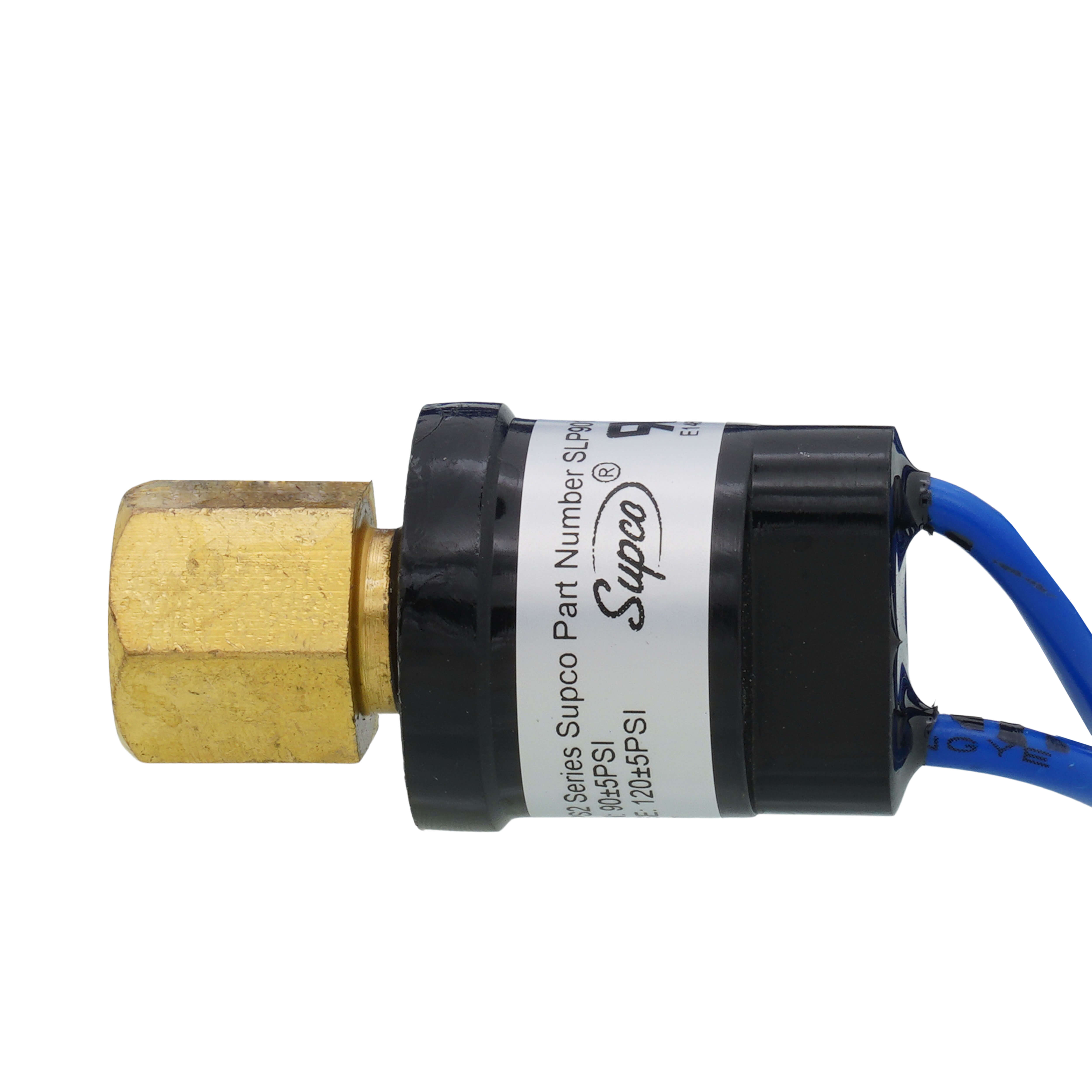

Supco SLP90120 Pressure Switch 24/120/240 VAC 10 A 1/4 SAE Female Flare

Product Description

The Supco SLP90120 is a pressure switch designed for refrigeration and air conditioning systems. It operates at 24/120/240 VAC and handles up to 10 A. The switch has an operational pressure range of zero to six hundred fifty PSI. It opens at ninety PSI and closes at one hundred twenty PSI. This switch features a one-quarter SAE female flare connection, is encapsulated, and is non-adjustable with an automatic reset.

• SPST configuration for simple operation
• Durable construction for longevity
• Suitable for a variety of cooling applications

Product Highlights

The SLP90120 ensures reliable operation in critical pressure management tasks. It is ideal for HVAC professionals working with refrigeration systems, heat pumps, and air conditioning setups.

Product Information

Standard Information

• Manufacturer: Supco
• UPC: 687152196784

Technical Specifications

• Voltage Rating: 24/120/240 VAC
• Contact Configuration: SPST
• Operating Pressure Range: 0 to 650 PSI
• Cut-Out Pressure: 90 PSI
• Cut-In Pressure: 120 PSI
• Maximum Surge Pressure: 5000 PSI
• Wire Size: 18 AWG
• Temperature Rating: 20°F to 176°F (Ambient), 60°F to 250°F (Fluid)
