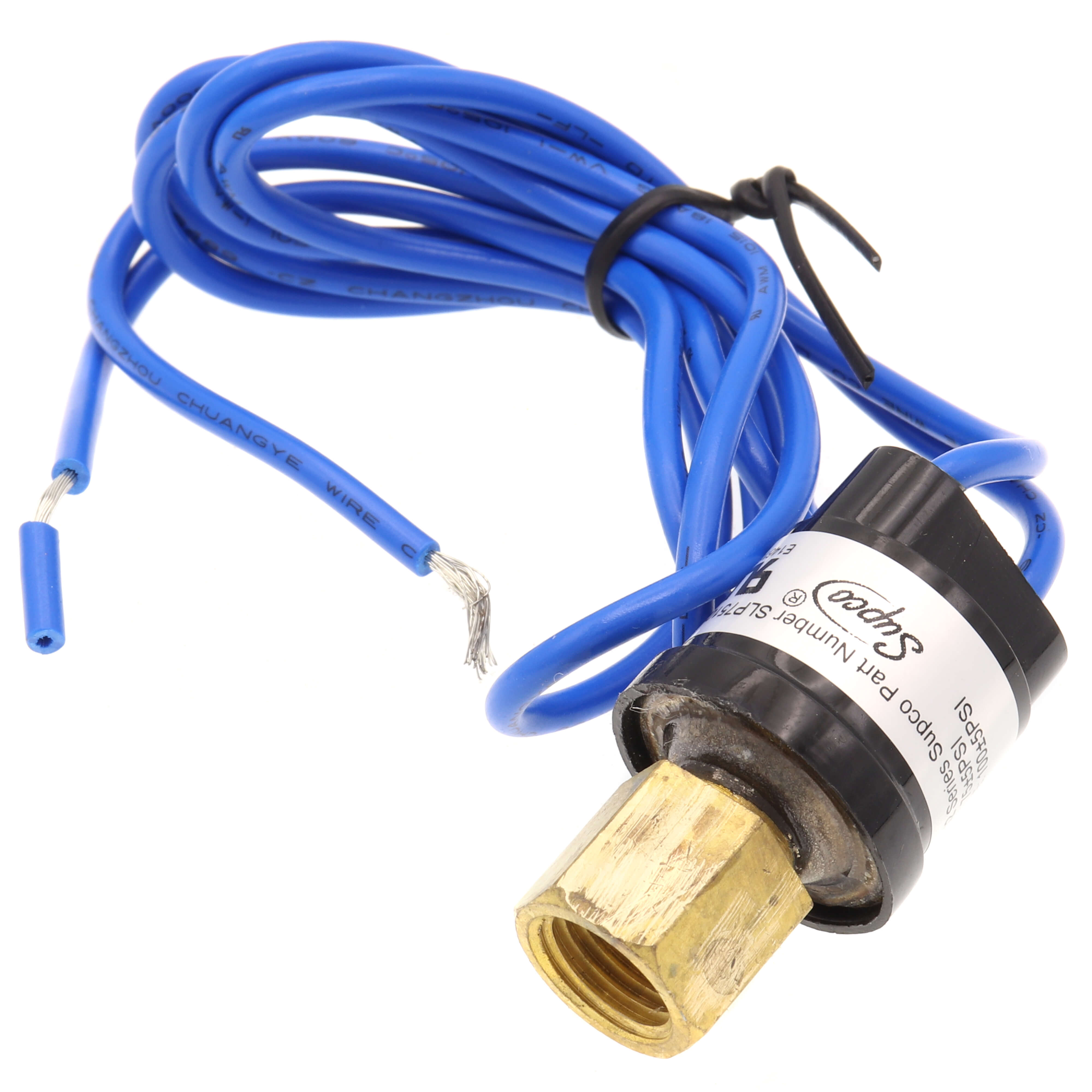

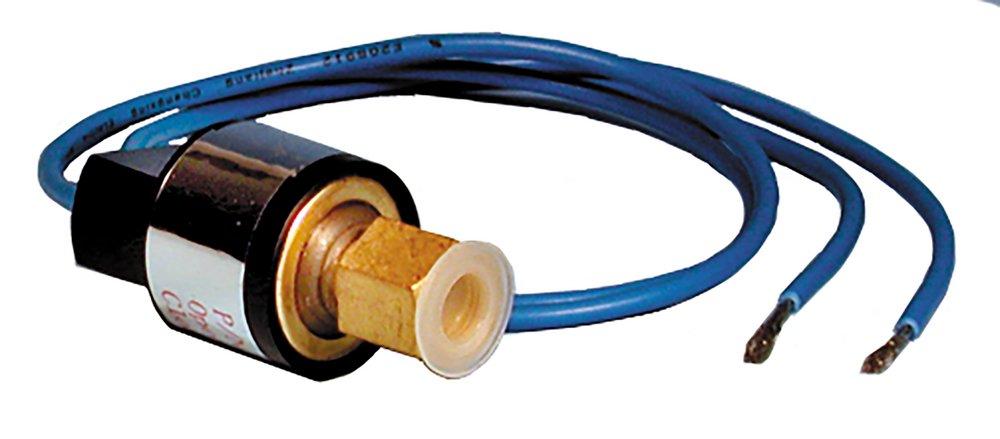

Supco SLP75100 Mars 33342 and 43353 Switches 24/240V 1 in. HVAC Fan Control

Product Description

The Supco SLP75100 is a pressure switch designed for monitoring and controlling HVAC systems. This model operates at both twenty-four and two hundred forty volts. It is suitable for various applications in both residential and commercial environments.

• Pressure range: zero to six hundred fifty psi
• Temperature range: ambient from negative twenty degrees Fahrenheit to one hundred seventy-six degrees Fahrenheit
• Durable stainless steel sensor

Product Highlights

This low-pressure switch features a snap-acting design that opens on pressure drop, ensuring reliable performance.

Product Information

Standard Information

• Brand: Supco
• MPN: SLP75100

Technical Specifications

• Pressure range: 0 to 650 psi
• Burst pressure: 5000 psi
• Low pressure action: SPST open on pressure drop
• Temperature ranges: Fluid from negative fifty degrees Celsius to one hundred twenty degrees Celsius
• Electrical rating: Rated for fifty to sixty Hz
• Connection type: 1/4 female flare fitting with valve core depressor
• Operating life: 100,000 cycles at rated load
