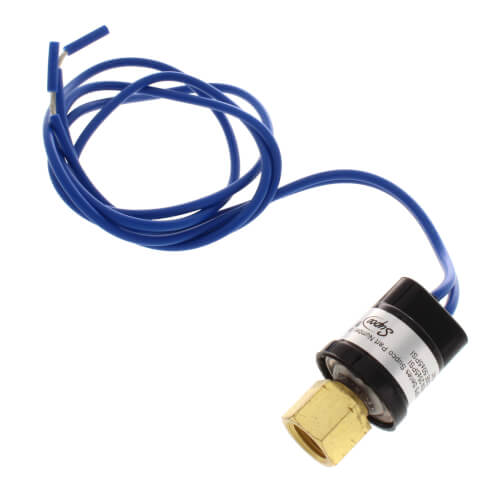

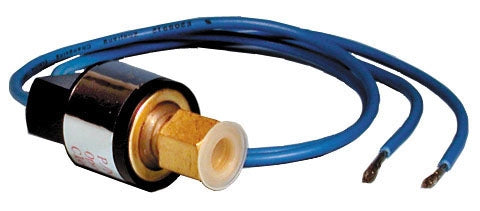

Supco SLP2550 Pressure Switch 24/120/240 VAC 25 PSI Open 50 PSI Close

Product Description

The Supco SLP2550 is a pressure switch designed for HVAC and refrigeration applications. This unit operates at voltages of twenty-four, one hundred twenty, and two hundred forty volts AC. It features a pressure range from zero to six hundred fifty PSI and is ideal for use in refrigeration systems, air conditioning systems, and heat pump systems.

• Operating Pressure Rating: Zero to six hundred fifty PSI
• Cut-Out Pressure: Twenty-five PSI
• Cut-In Pressure: Fifty PSI

Product Highlights

The unit is encapsulated and non-adjustable with automatic reset capabilities. It is constructed to handle various refrigerants including HFC and HCFC.

Product Information

Standard Information

• Manufacturer: Supco
• Part Number: SLP2550

Technical Specifications

• Voltage Rating: Twenty-four, one hundred twenty, two hundred forty volts AC
• Amperage Rating: Ten amps at twelve to twenty-eight volts AC/DC
• Contact Configuration: SPST
• Connection Type: One-fourth inch SAE female flare
• Material: Stainless steel
• Temperature Rating: Twenty to one hundred seventy-six degrees Fahrenheit (ambient)
• Lead Length: Eighteen inches
• Life Cycle Rating: One hundred thousand average cycles
