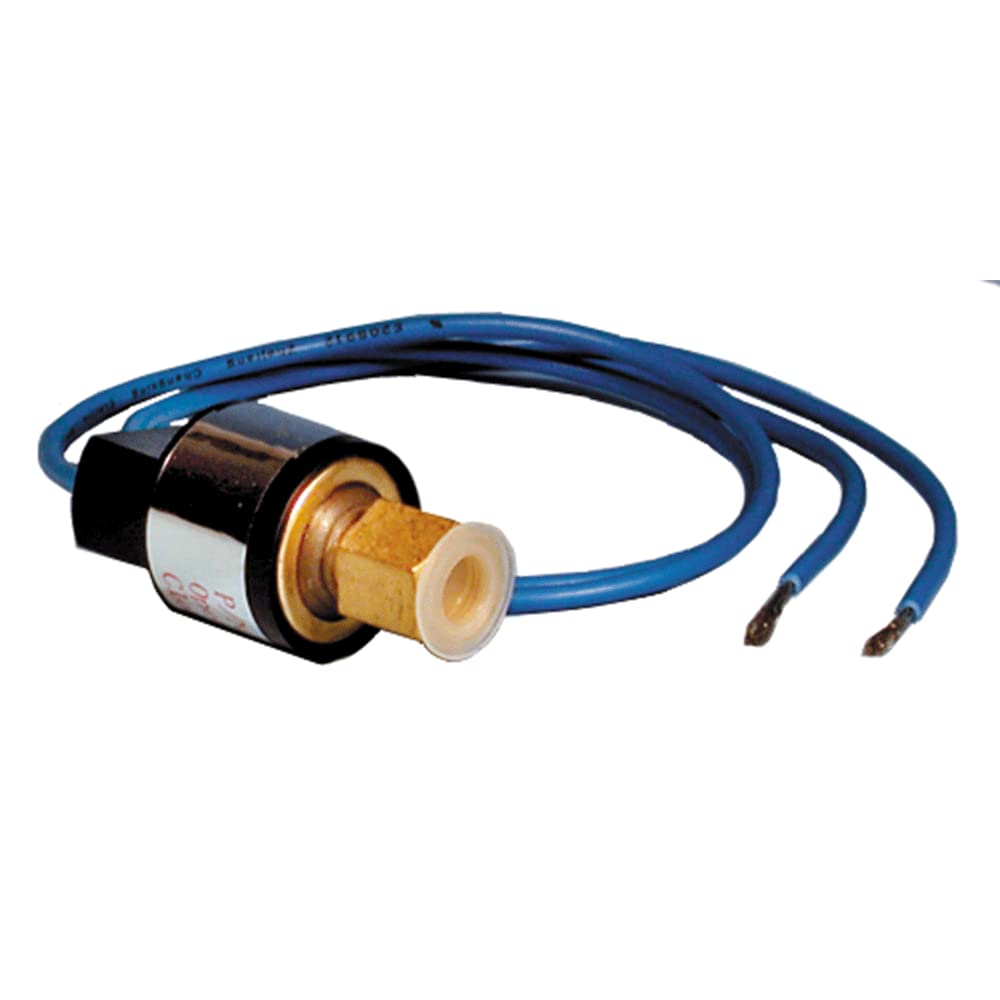

Supco SLP1025 Pressure Switch, 10-25 psi Range, 18 Lead Length

Product Description

The Supco SLP1025 is a pressure switch designed for HVAC applications. It operates within a pressure range of ten to twenty-five psi. The switch features an eighteen-inch lead length for easy installation.

• Pressure Settings: Opens at ten psi and closes at twenty-five psi
• Durable design made from stainless steel
• Compact size suitable for direct mounting

Product Highlights

High precision control for low pressure systems, making it ideal for HVAC technicians. This unit ensures reliable operation in a variety of environments.

Product Information

Standard Information

• Manufacturer: Sealed Unit Parts Co., Inc
• Model Number: SLP1025

Technical Specifications

• Pressure Rating: 10 psi Open, 25 psi Close, 0 - 650 psi Operating
• Voltage Rating: 120/240 VAC
• Amperage Rating: 5.8 A at 120 VAC, 2.9 A at 240 VAC
• Temperature Rating: 20 to 176 deg F Ambient
• Material: Stainless Steel
• Connection Type: 1/4 in SAE Female Flared
• Contact Configuration: SPST
• Operating Cycles: 100000
• Switching Action: Snap
• Standards: RU file E200318, UL 1015 listed, CE approved
• Applications: Compatible with HFC, HCFC and CFC refrigerants
