Supco SIG101 120 VAC, 4 A at 132 VAC, Silicon Carbide, Round, Hot Surface, Furnace Igniter

Product Description

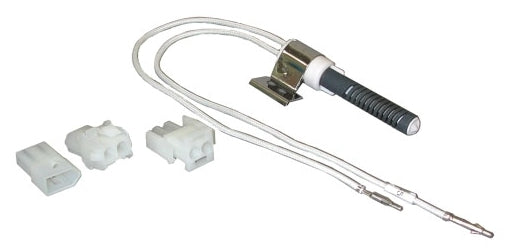

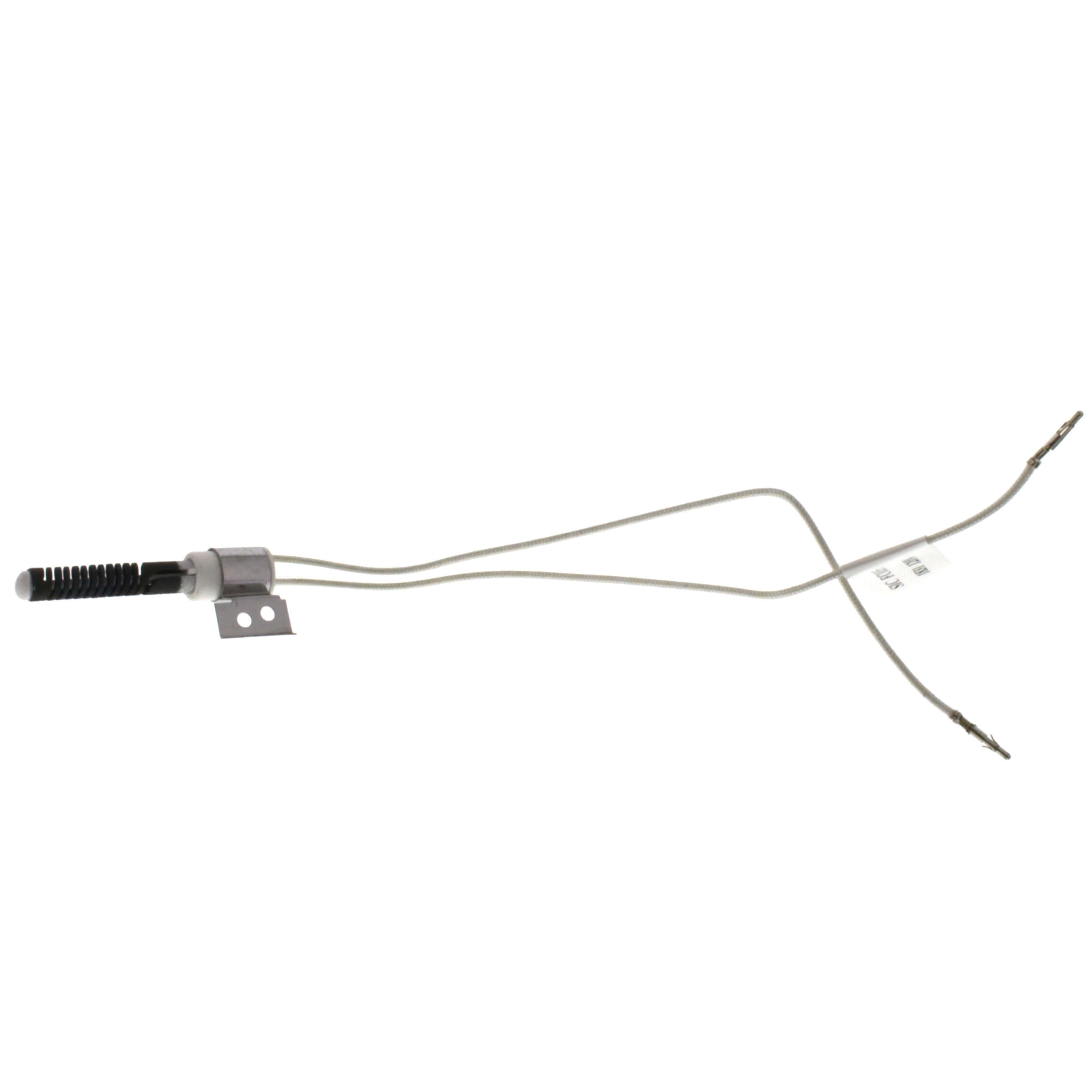

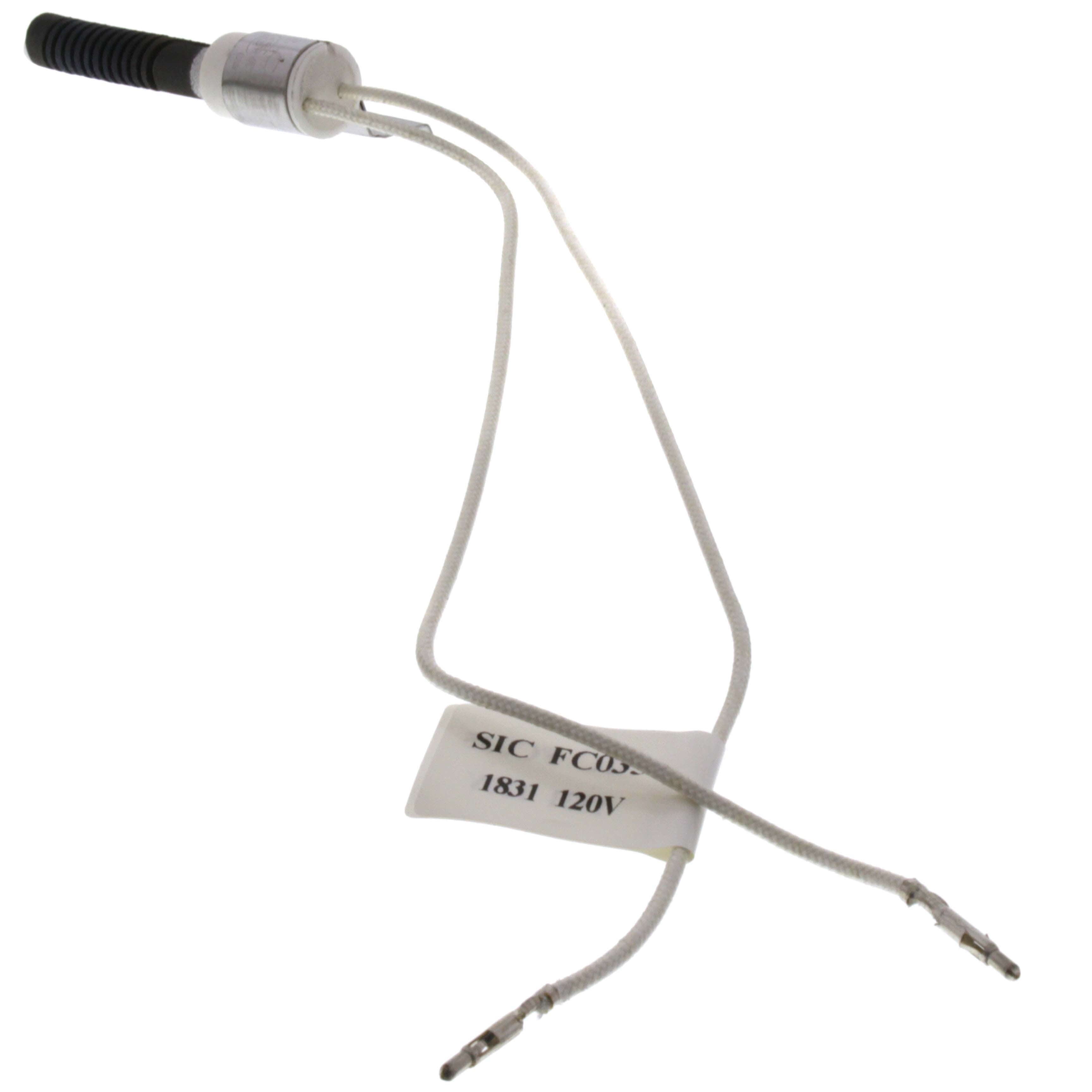

The Supco SIG101 is a round hot surface ignitor designed for use in various heating applications. It operates on 120 volts and has a current rating of 4 amps at 132 volts. Made from durable silicon carbide, this ignitor provides efficient heating for furnaces, boilers, water heaters, unit heaters, and pool heaters.

• Voltage Rating: 120 VAC
• Current Rating: 4 A at 132 VAC
• Cold Resistance: 40 to 100 Ohm at 75 Deg F ± 10 Deg F

Product Highlights

This ignitor offers superior gas lighting ability with lower power consumption. The 18 gauge copper high-temperature fiberglass insulated lead wires enhance safety and durability. With a faster response time to temperature, the Supco SIG101 ensures reliable operation across various heating units.

Product Information

Standard Information

• Manufacturer: Supco
• UPC: 687152153657

Technical Specifications

• Product ID: 63263
• Description: SLD SIG101 ROUND HOT SURF IGNITER IG101
• Type: Igniter, Round, Hot Surface
• Used On: Furnace, Boiler, Water Heater, Unit Heater, Pool Heater
• Series/Model: SIG100
