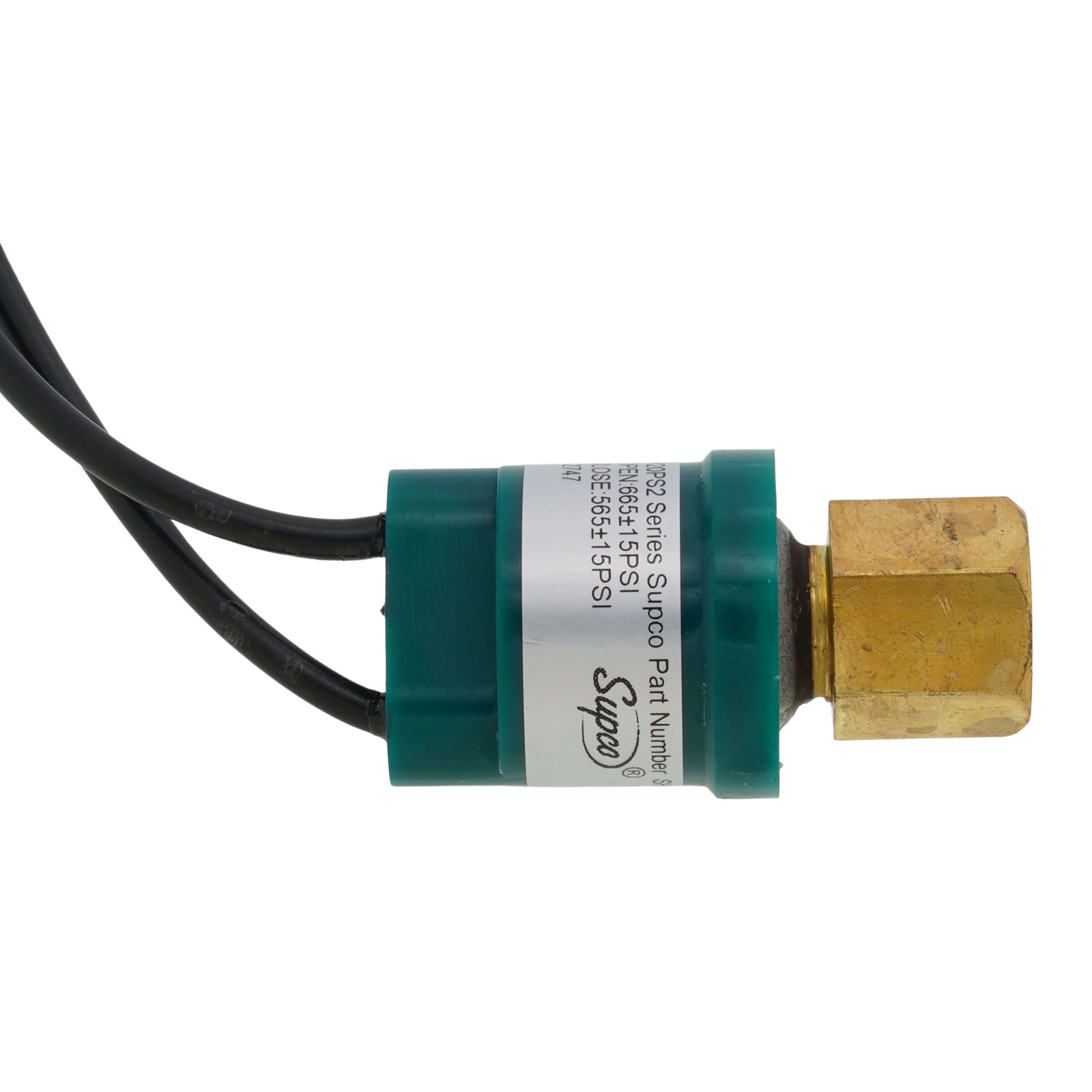

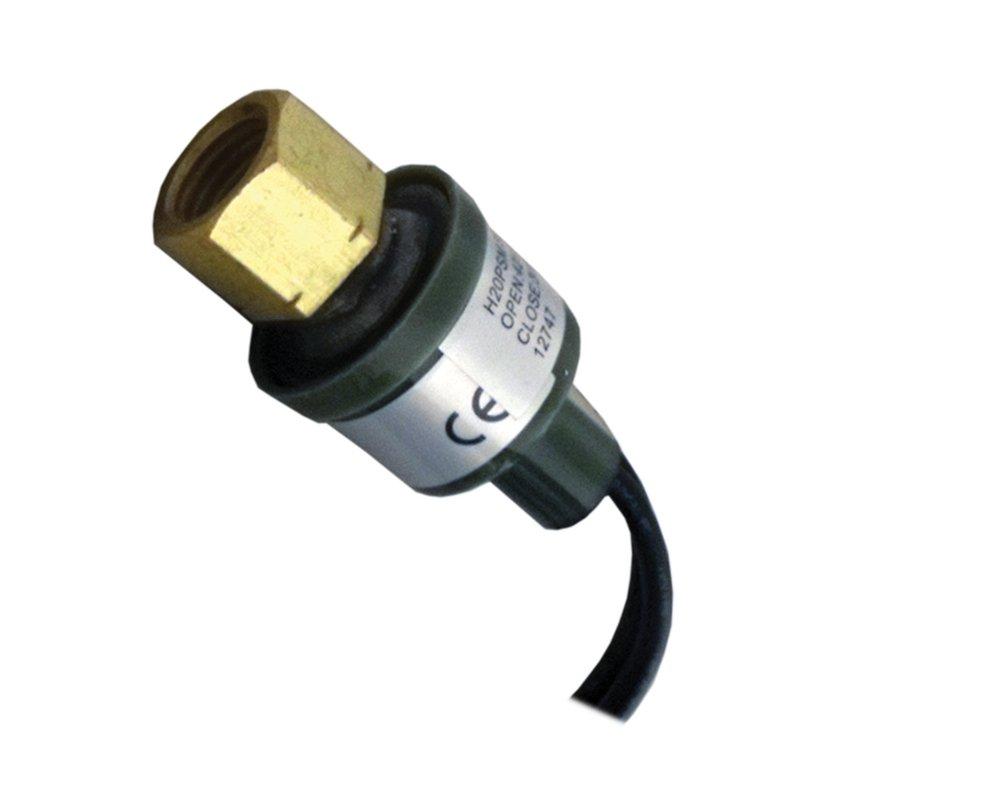

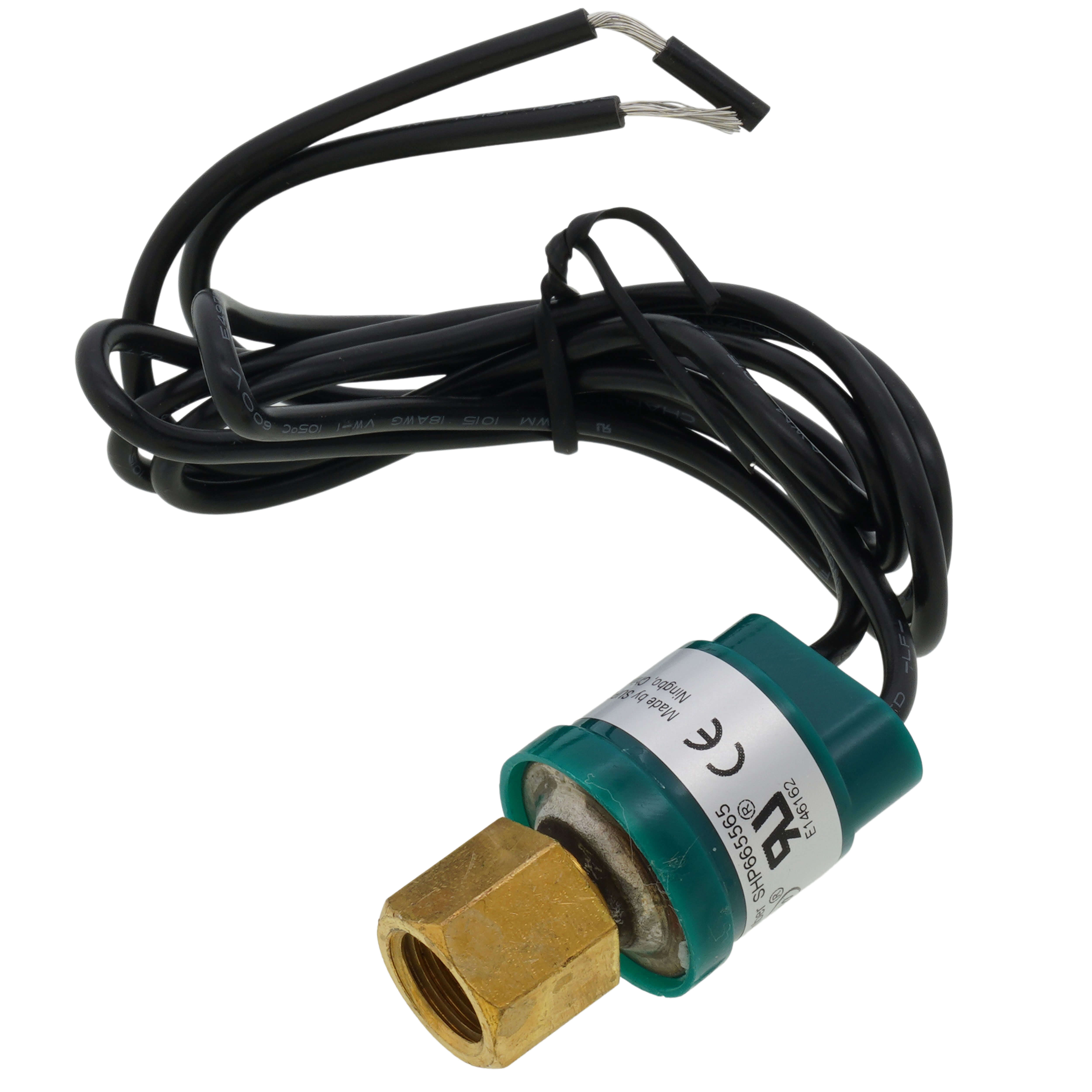

Supco SHP665565 Pressure Switch 24/120/240 VAC 10 A at 12 to 28 VAC/VDC 0 to 650 PSI Operating

Product Description

The Supco SHP665565 is a pressure switch designed for HVAC applications. It operates at voltages of twenty-four, one hundred twenty, and two hundred forty volts alternating current. This switch supports a contact rating of ten amps at twelve to twenty-eight volts AC or DC, making it suitable for various systems.

• Operating pressure range: zero to six hundred fifty PSI
• Cut-out pressure: six hundred sixty-five PSI, cut-in pressure: five hundred sixty-five PSI
• Includes valve core depressor and connects via a quarter-inch SAE female flare

Product Highlights

This switch is ideal for refrigeration systems, air conditioning units, and heat pumps. It is encapsulated, non-adjustable, and features an automatic reset mechanism for safety and reliability.

Product Information

Standard Information

• Brand: Supco
• Manufacturer Part Number: SHP665565

Technical Specifications

• Voltage Rating: 24/120/240 VAC at 50/60 Hertz
• Life Cycle at Rated Load: 100,000 average cycles
• Wire Size: 18 AWG
• Temperature Rating: 20 to 176 degrees Fahrenheit (ambient), 60 to 250 degrees Fahrenheit (fluid)
• Approval: UL, CE
• Lead Length: 18 inches
