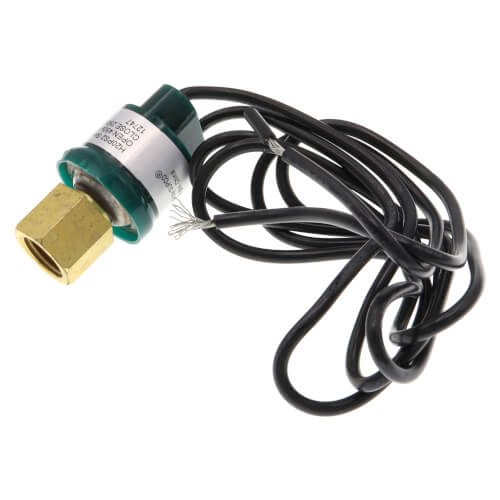

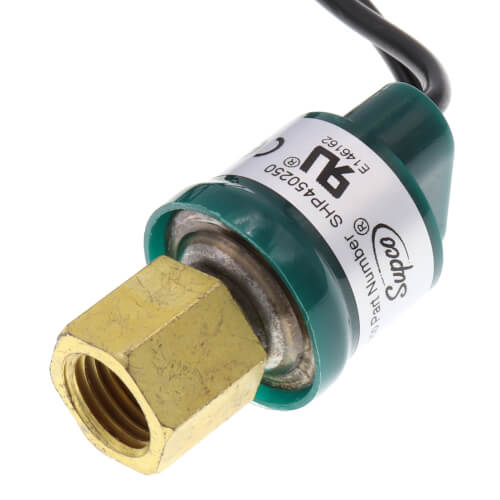

Supco SHP450250 24/120/240 VAC, 10 A at 12 to 28 VAC/VDC High Pressure Open on Pressure Rise 450 PSI Close 250 PSI

Product Description

The Supco SHP450250 is a pressure switch that operates at 24/120/240 VAC with a contact rating of 10 A at 12 to 28 VAC/VDC. This product has a range of pressure ratings, including an operating pressure of up to 650 PSI and a cut-out pressure of 450 PSI. It also features a cut-in pressure of 250 PSI, making it suitable for various HVAC applications such as refrigeration and air conditioning systems.

• Automatic reset for ease of use
• Encapsulated design ensures durability and protection
• Compatible with multiple refrigerants, including HFC and HCFC

Product Highlights

This pressure switch features a robust design with non-adjustable settings, ensuring reliable pressure control and stability.

Product Information

Standard Information

• Manufacturer: Supco
• MPN: SHP450250

Technical Specifications

• Operating Pressure Rating: 0 to 650 PSI
• Maximum Surge Pressure Rating: 5000 PSI
• Contact Configuration: SPST
• Voltage Rating: 24/120/240 Volt AC at 50/60 Hertz
• Life Cycle at Rated Load: 100,000 Average
• Cut-In Pressure Rating: 250 PSI
• Cut-Out Pressure Rating: 450 PSI
• Wire Size: 18 AWG
