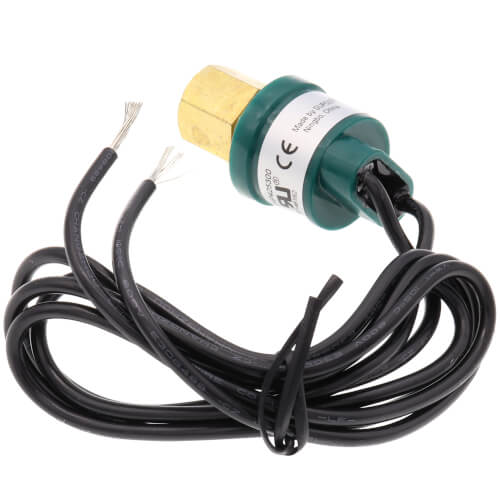

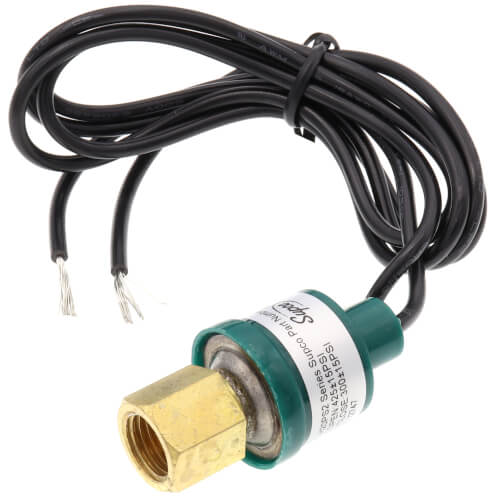

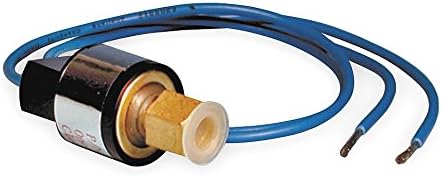

Supco SHP425300 425 PSI Pressure Switch

Product Description

The Supco SHP425300 is a high-performance 425 PSI High Pressure Switch, essential for ensuring optimal operation in various industrial environments. Engineered by Supco, this product offers reliability for systems requiring precise pressure monitoring.

• Pressure ratings of 425 psi open and 300 psi close.
• Stainless steel, hermetically sealed sensor ensures durability and accuracy.
• Direct mounting capability for easy installation.

Product Highlights

This pressure switch is recognized for its snap action and non-adjustable auto reset features, making it suitable for high-pressure applications in HVAC systems.

Product Information

Standard Information

• Brand: Supco
• MPN: SHP425300

Technical Specifications

• Pressure Rating: 425 psi Open, 300 psi Close, 0 - 650 psi Operating
• Connection Type: 1/4 in SAE Female Flared with Valve Core Depressor, 18 AWG/18 in L Lead Wire
• Contact Configuration: SPST
• Amperage Rating: 5.8 A at 120 VAC, 2.9 A at 240 VAC
• Frequency Rating: 50/60 Hz
• Operating Cycles: 100000 Cycles
• Switching Action: Snap
• Temperature Rating: 20 to 176 deg F Ambient, 60 - 250 deg F Fluid
