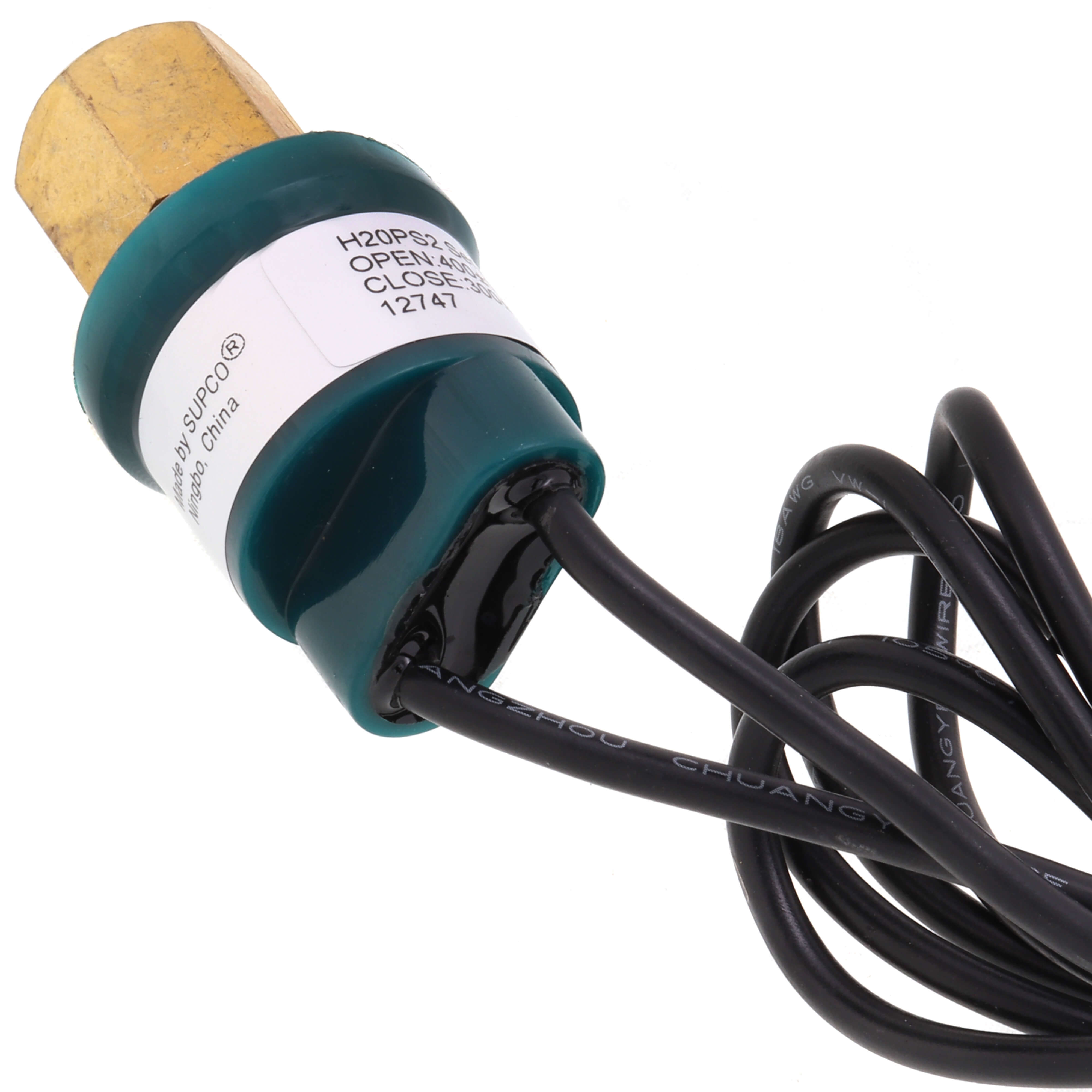

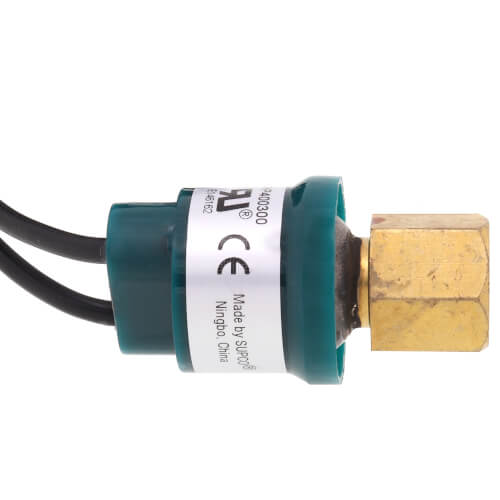

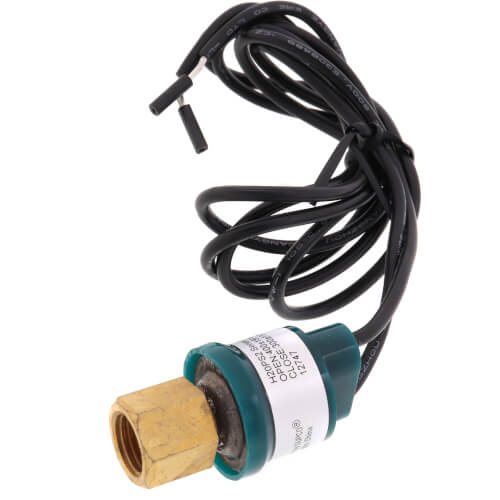

Supco SHP400300 High Pressure Switch 400 Open PSI 300 Close PSI

Product Description

The Supco SHP400300 is a high-pressure switch designed for industrial applications. It operates on pressures up to 400 PSI and is suitable for refrigeration, air conditioning, and heat pump systems. The switch features a cut-in pressure of 300 PSI and a cut-out pressure of 400 PSI, ensuring reliable operation in critical conditions.

• Operating pressure range: 0 to 650 PSI
• Compact design for easy installation
• UL and CE approved for safety

Product Highlights

Ideal for use in heating, cooling, and refrigeration systems where efficient monitoring of pressure is crucial.

Product Information

Standard Information

• Manufacturer: Supco
• Part Number: SHP400300

Technical Specifications

• Contact Configuration: SPST
• Connection Type: 1/4 Inch SAE Female Flare
• Operating Pressure Rating: 0 to 650 PSI
• Maximum Surge Pressure Rating: 5000 PSI
• Voltage Rating: 24/120/240 Volt AC
• Contact Rating: 12 to 28 Volt AC/DC 10 Amp
• Temperature Rating: 20 to 176 Deg F (Ambient)
• Lead Length: 18 Inch
