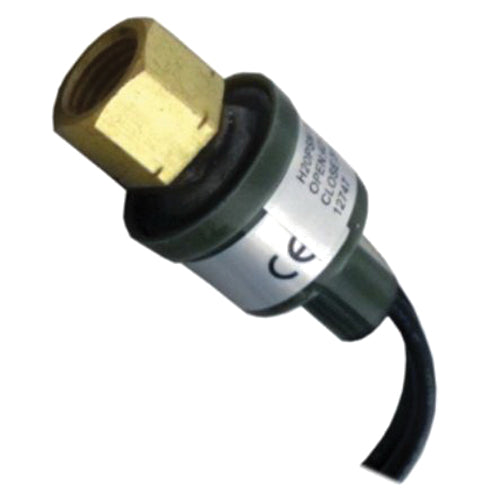

Supco SHP325225 Pressure Switch 325 psi Open 225 psi Close

Brand: SUPCO
SKU: SHP325225
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$21.99
$21.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Supco SHP325225 pressure switch is designed for various applications including refrigeration, air conditioning, and heat pump systems. This high-pressure switch is encapsulated, non-adjustable, and features an auto reset function, ensuring reliability and performance. It is set to open at 325 psi and close at 225 psi, with an operating range of 0 to 650 psi.

  • Functions in various HVAC systems
  • Encapsulated and non-adjustable
  • Auto reset feature

Product Highlights

Designed by Supco, the SHP325225 pressure switch offers excellent set-point repeatability and stability, making it a reliable choice for your HVAC needs.

Product Information

Standard Information

  • Brand: Supco
  • MPN: SHP325225

Technical Specifications

  • Amperage Rating: 5.8 A at 120 VAC, 2.9 A at 240 VAC
  • Connection Type: 1/4 in SAE Female Flared with Valve Core Depressor, 18 AWG/18 in L Lead Wire
  • Contact Configuration: SPST
  • Frequency Rating: 50/60 Hz
  • Item Name: High Pressure Switch
  • Material: Stainless Steel
  • Number of Poles: 1
  • Operating Cycles: 100000 Cycles
  • Pressure Rating: 325 psi Open, 225 psi Close, 0 - 650 psi Operating
  • Series: SHP
  • Switching Action: Snap
  • Temperature Rating: 20 to 176 deg F Ambient, 60 - 250 deg F Fluid
  • Type: Encapsulated, Non-Adjustable, Auto Reset
  • Voltage Rating: 120/240 VAC
  • Standards/Certifications: RU file E200318, UL 1015 listed, CE approved
