Supco SHP250180 High Pressure Switch Open: 250 PSI Close: 180 PSI HVAC Refrigeration

Product Description

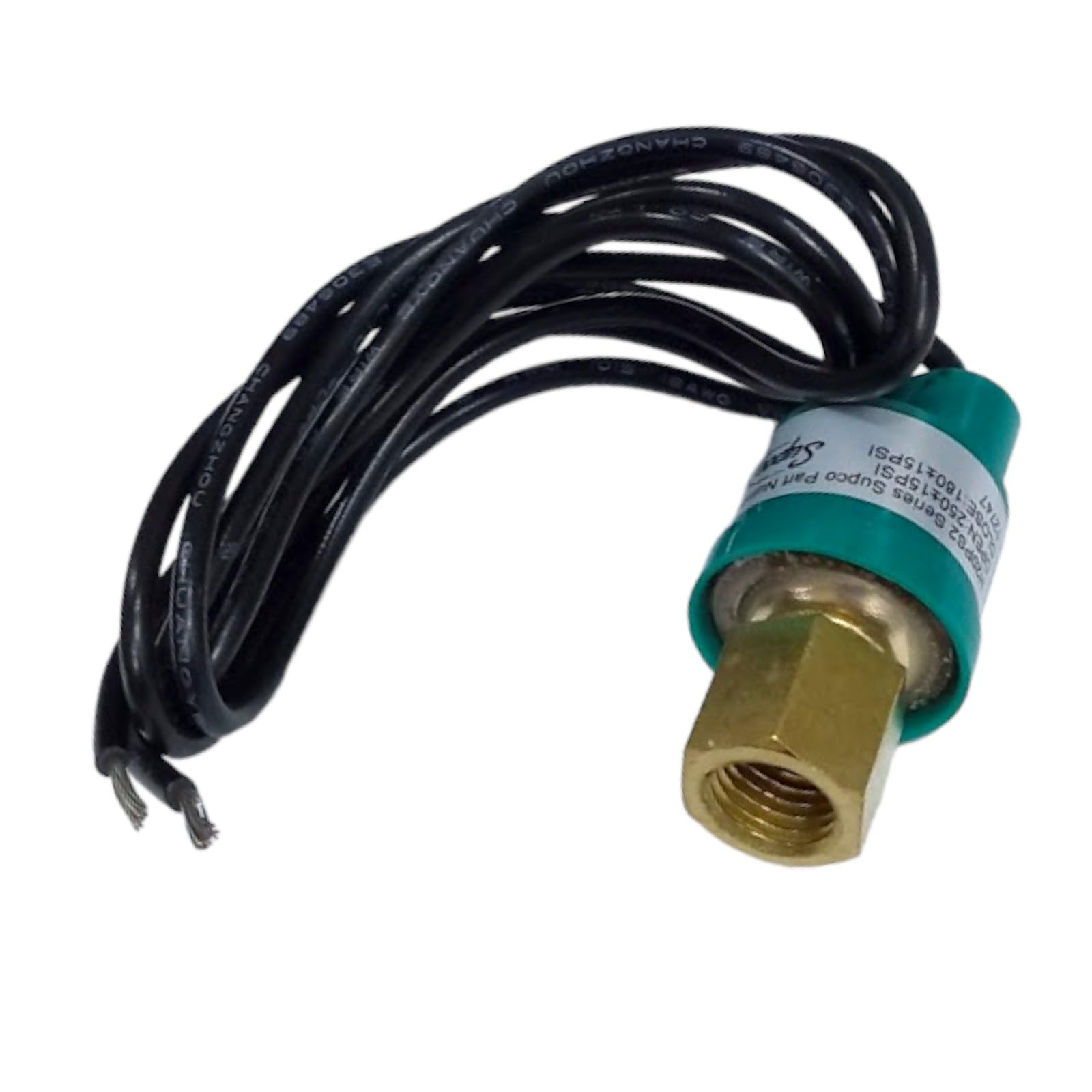

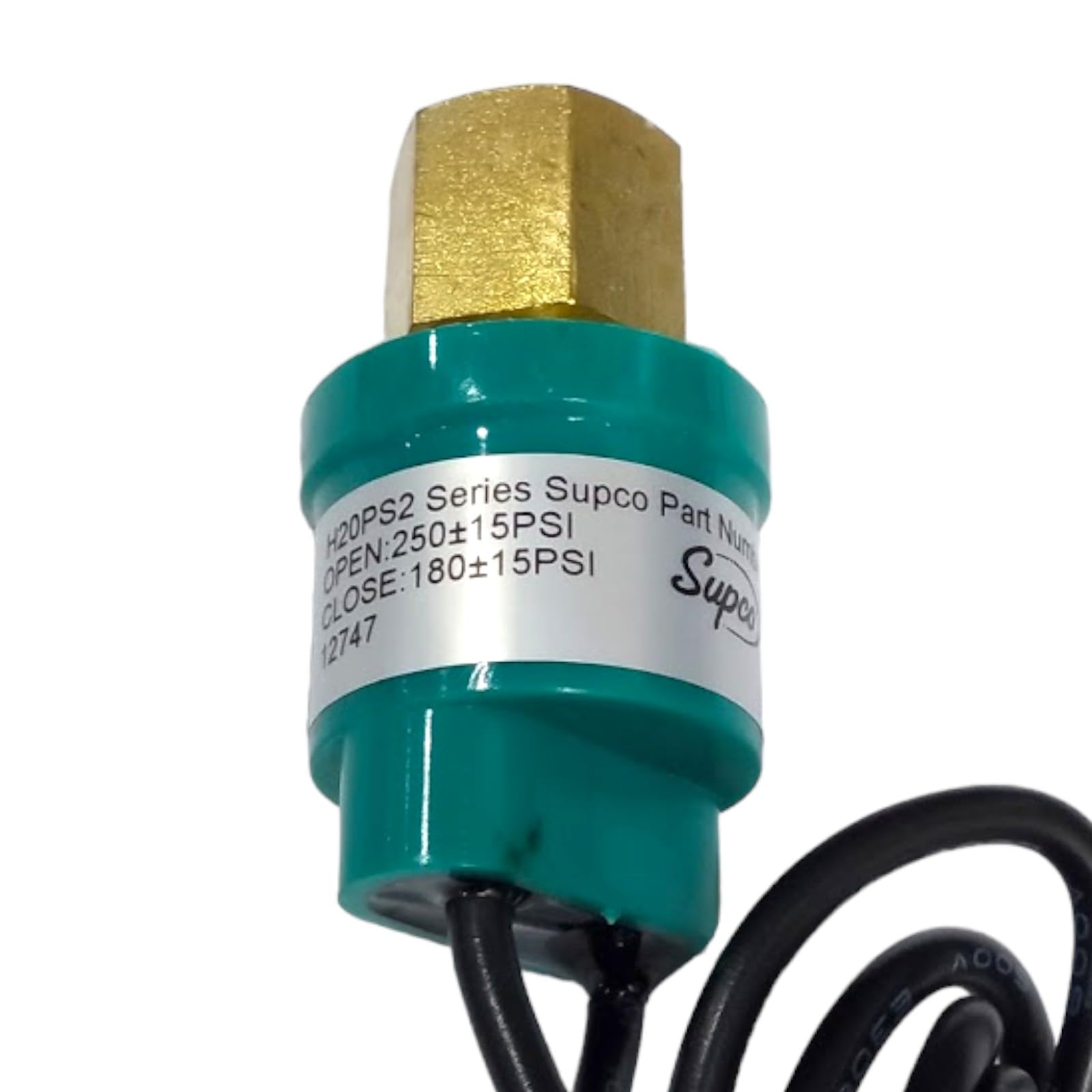

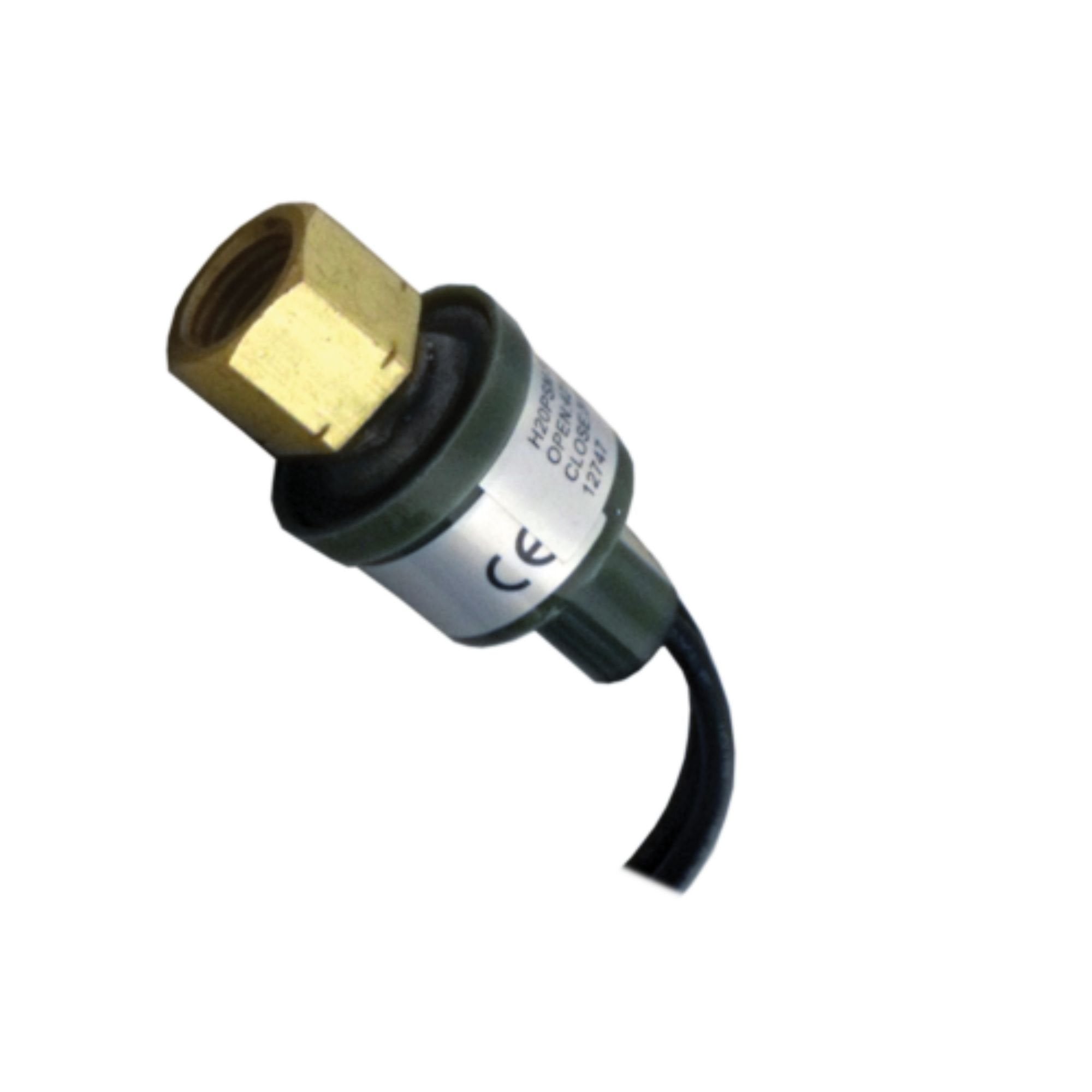

The SUPCO SHP250180 is a high-pressure switch that opens at 250 PSI and closes at 180 PSI, designed for HVAC and refrigeration applications. It features a ¼" SAE 45 female flare fitting with a valve core depressor. The switch is compatible with HFC, HCFC, and CFC refrigerants and has an automatic reset function.

• Opens on pressure rise at 250 PSI, closes at 180 PSI
• Features ¼" SAE 45 female flare fitting with valve core depressor
• Rated Voltage 24/120/240 VAC @ 50/60 Hz

Product Highlights

This high-pressure switch is suitable for various HVAC and refrigeration systems, offering precise control and durability with a life of 100,000 cycles at rated load.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SHP250180

Technical Specifications

• Open: 250 PSI
• Close: 180 PSI
• Fitting: ¼" SAE 45 female flare fitting with valve core depressor
• Life at rated load: 100,000 cycles
• Rated Voltage: 24/120/240 VAC @ 50/60 Hz
• Temperature Range: -31F to 149F (-35C to 65C)
• Max Pressure: 700PSI
• MPN: SHP250180
• Brand: Supco
• Maximum FLA: 2.9 Amps @ 240VAC
• Maximum LRA: 17.4 Amps @ 240VAC
• Ambient Temperature: -22°F to 275°F (-30°C to 135°C)
• Fluid Temperature: -4°F to 302°F (-20°C to 150°C)
• Burst Pressure: 5000 PSI
• Tolerance: +/- 15 PSI
• DC Voltage: 6Vdc/12Vdc/36Vdc
• Agency Approvals: UL® Recognized, CE®
