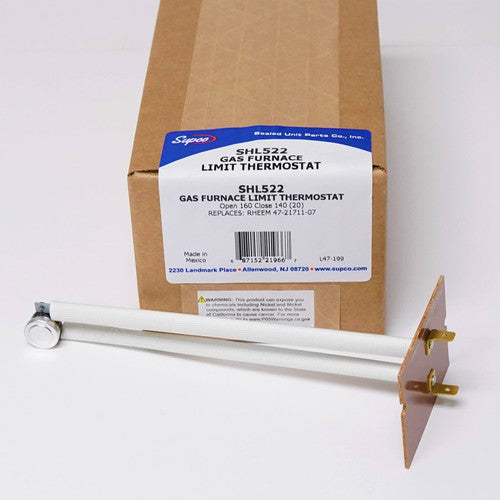

Supco SHL522 plenum thermostat 140 degree f-160 degree f

Product Description

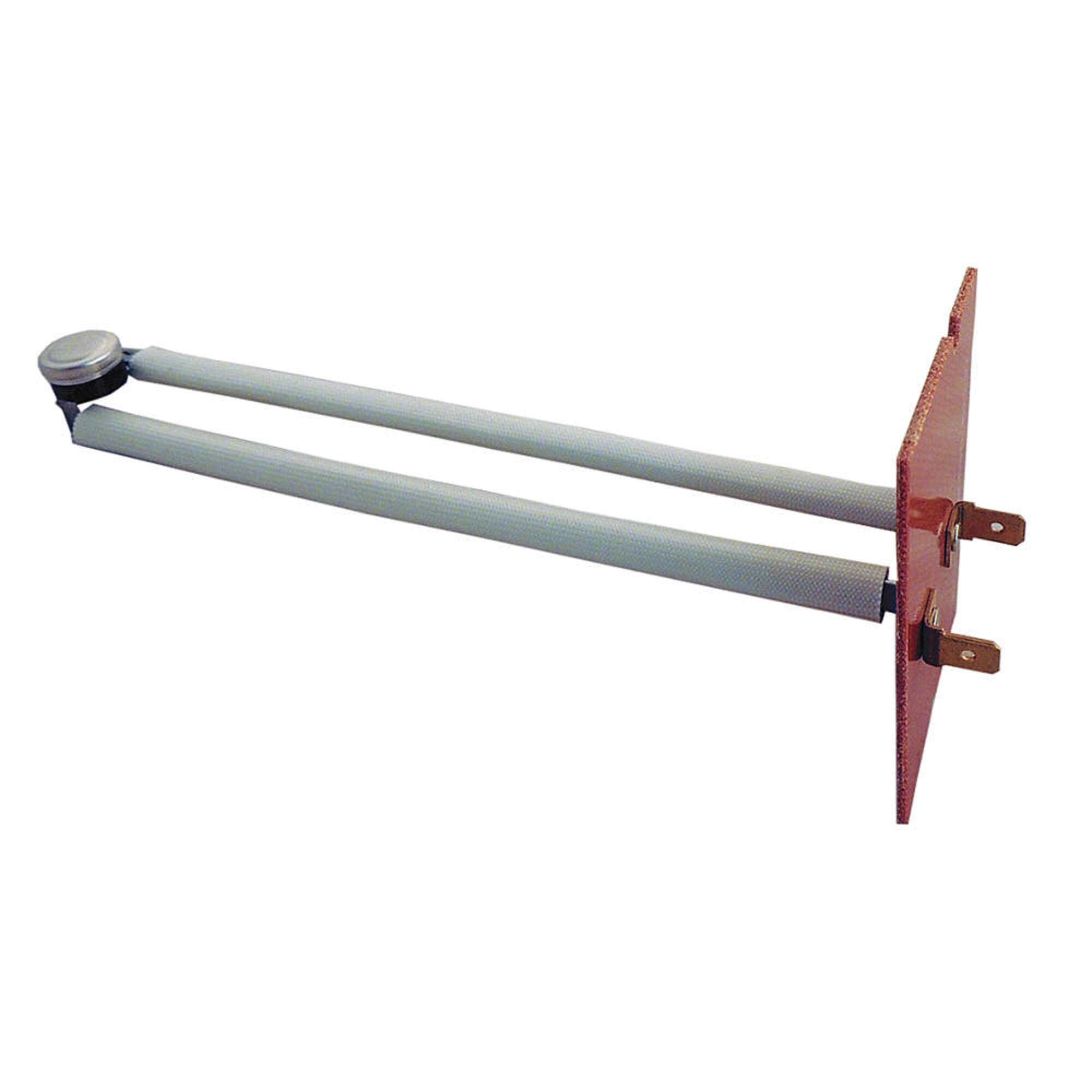

The SUPCO SHL522 plenum thermostat offers reliability in a compact and cost-effective design. This SPST thermostat has a temperature range of 140 to 160 degrees Fahrenheit and an element insertion length of 7 inches. It is UL recognized and CSA approved. Use cases include furnace plenum high limit thermostat.

• Economical
• Direct OEM replacements
• UL recognized
• CSA approved

Product Highlights

The SUPCO SHL522 is a reliable and compact plenum thermostat with a temperature range of 140 to 160 degrees Fahrenheit.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SHL522
• Country of Origin: United States

Technical Specifications

• Brand: Supco
• Manufacturer: Sealed Unit Parts Co., Inc
• Model / MPN: SHL522
• Number of Items: 1.0
• Depth (In.): 2.796875 in
• Switch Type: SPST
• Width (In.): 1.875 in
• Differential: 20
• Temp. Range (F): 140 to 160
• Switch Opens @ (F): 160 Degrees F
• Switch Closes @ (F): 140 Degrees F
• Inductive Amps @ 120V: 3
• Inductive Amps @ 240V: 1.5
• Resistive Amps @ 120V: 15
• Resistive Rating 240V: 10
• Element Insertion Length (In.): 7 in
• Open: 160 F
• Close: 140 F
• Board Width: 1.88 inches
• Board Height: 2.8 inches
• Insertion Length: 7.12 inches
