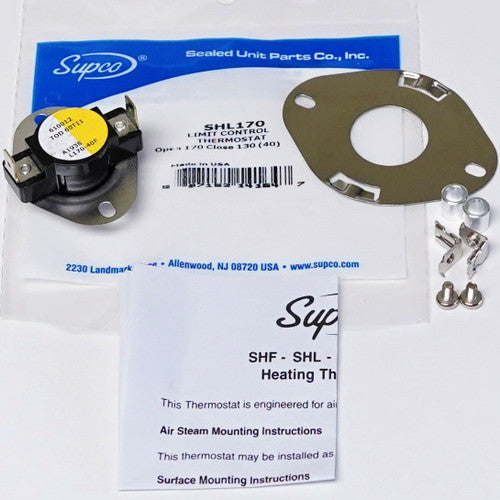

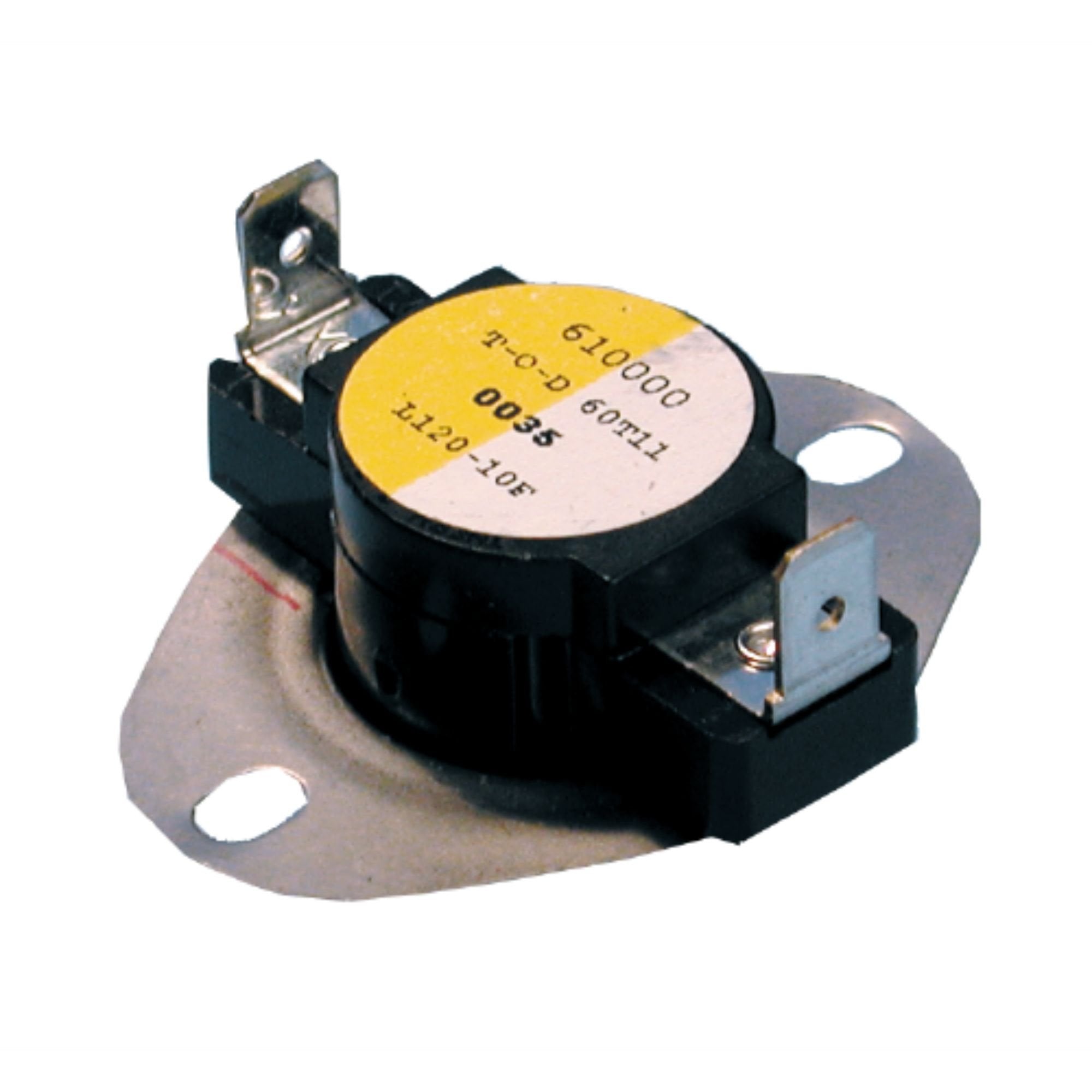

Supco SHL170 Thermostat Limit Control 170 Degree F

Product Description

The SUPCO SHL170 thermostat limit control offers proven reliability in a versatile, cost-effective design. It can handle loads up to 25 amps at 240VAC. The bimetal disc temperature control is designed to open on temperature rise. It features welded construction for integrity of current-carrying components.

• Welded construction for integrity of current-carrying components
• Available with automatic and manual reset spst or automatic reset spdt switch configurations
• Limit - open on rise

Product Highlights

The SHL170 thermostat limit control is UL recognized and CSA approved.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SHL170
• Country of Origin: United States

Technical Specifications

• Cut Out Temperature: 170 Degree F
• Amps: 25 Amp
• Voltage: 240Vac
• Cut out temp (°F): 170°F
• Cut in temp ( °F): 130 °F
• Differential °: 40 °F
• FLA @ 120VAC: 10A
• FLA @ 240VAC: 5A
• LRA @ 120VAC: 60A
• LRA @ 240VAC: 30A
• Pilot Duty @ 120VAC / 240VAC: 125 VA
• RLA @ 120VAC / 240VAC: 25A
• Agency: UL®, CSA®
• Differential: 40 deg F
• Domestic/Import: Domestic
• Electrical Connections: 120/240 VAC
• Pilot Duty Rating: 125 VA
• Resistive Rating: 25 A
• Series: SHL
• Opens at: 170 Degrees Fahrenheit
• Closes at: 130 Degrees Fahrenheit
• Electrical Ratings: 60T
• Terminals: 1/4" quick disconnect
