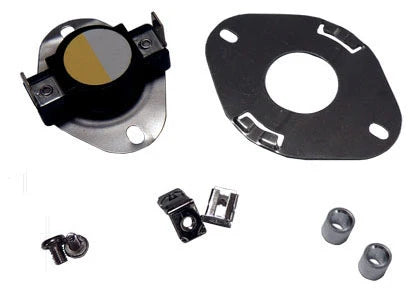

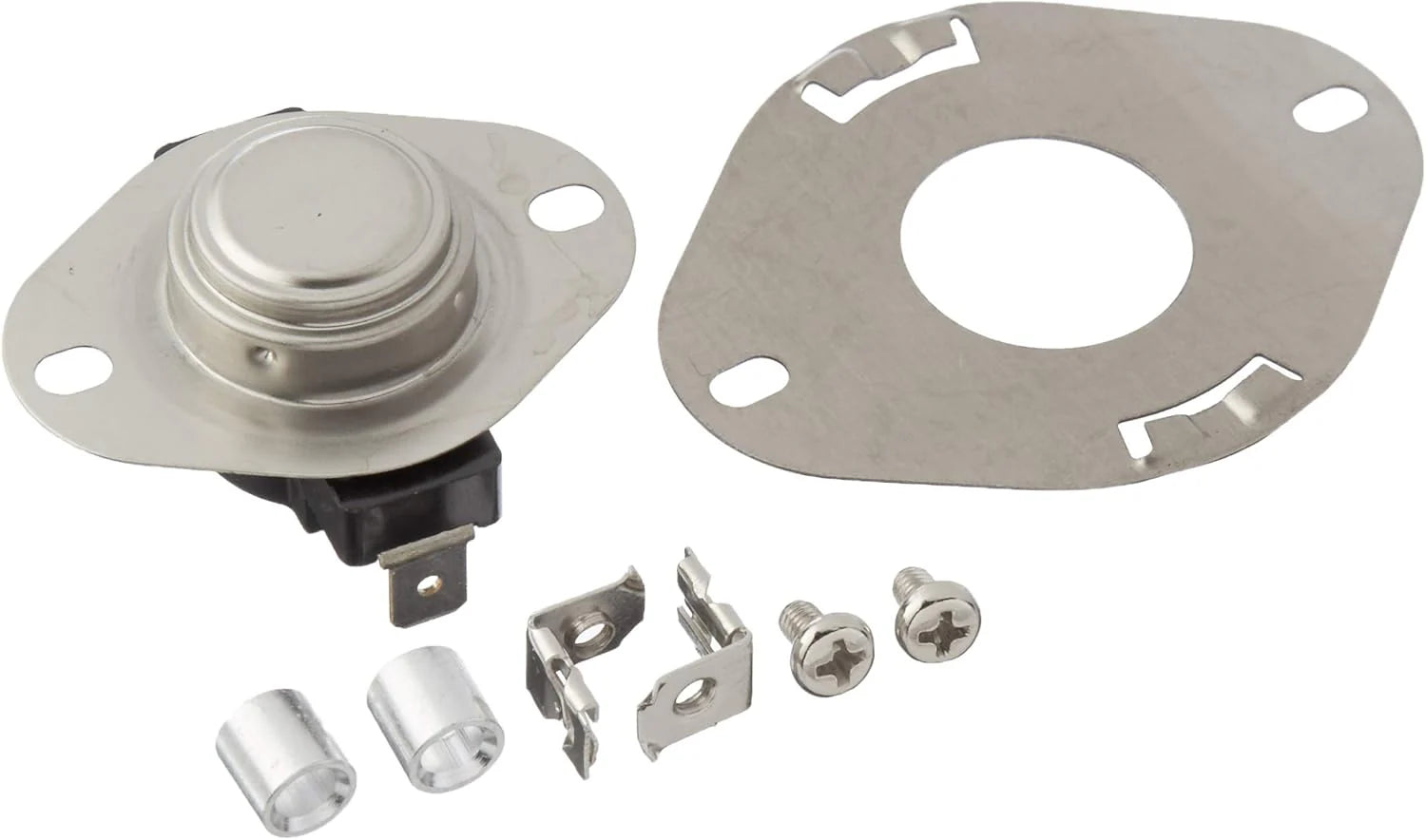

Supco SHF140 Fan Thermostat 120/240V SPST 1 Inch Pack 1

Product Description

Supco SHF140 is a robust fan control thermostat designed for efficient temperature regulation in HVAC systems. This product, from the reliable brand Supco, ensures optimal fan operation with its bi-metal disc temperature control technology. It's suited for both industrial and commercial applications.

• Automatic reset and snap action mechanism.
• Temperature control between 120 degrees Fahrenheit and 140 degrees Fahrenheit.
• UL and CSA approved, ensuring safe operation.

Product Highlights

The thermostat features a simple 3/4 inch snap disc for rapid response and reliability. It is designed for easy installation and automatic operation, enhancing system efficiency and safety.

Product Information

Standard Information

• Brand: Supco
• MPN: SHF140
• Type: Fan Control, Snap Action, Automatic Reset

Technical Specifications

• Voltage: 120/240 Volt AC
• Current Rating: 10 Amp at 120 Volt AC/5 Amp at 240 Volt AC (Full Load)
• Temperature Rating: 120 Deg F (Open), 140 Deg F (Close), 20 Deg F (Differential)
• Size: 3/4 Inch
• Disc Material: Bi-Metal
• Ambient Temperature Rating: Up to 350 Deg F
