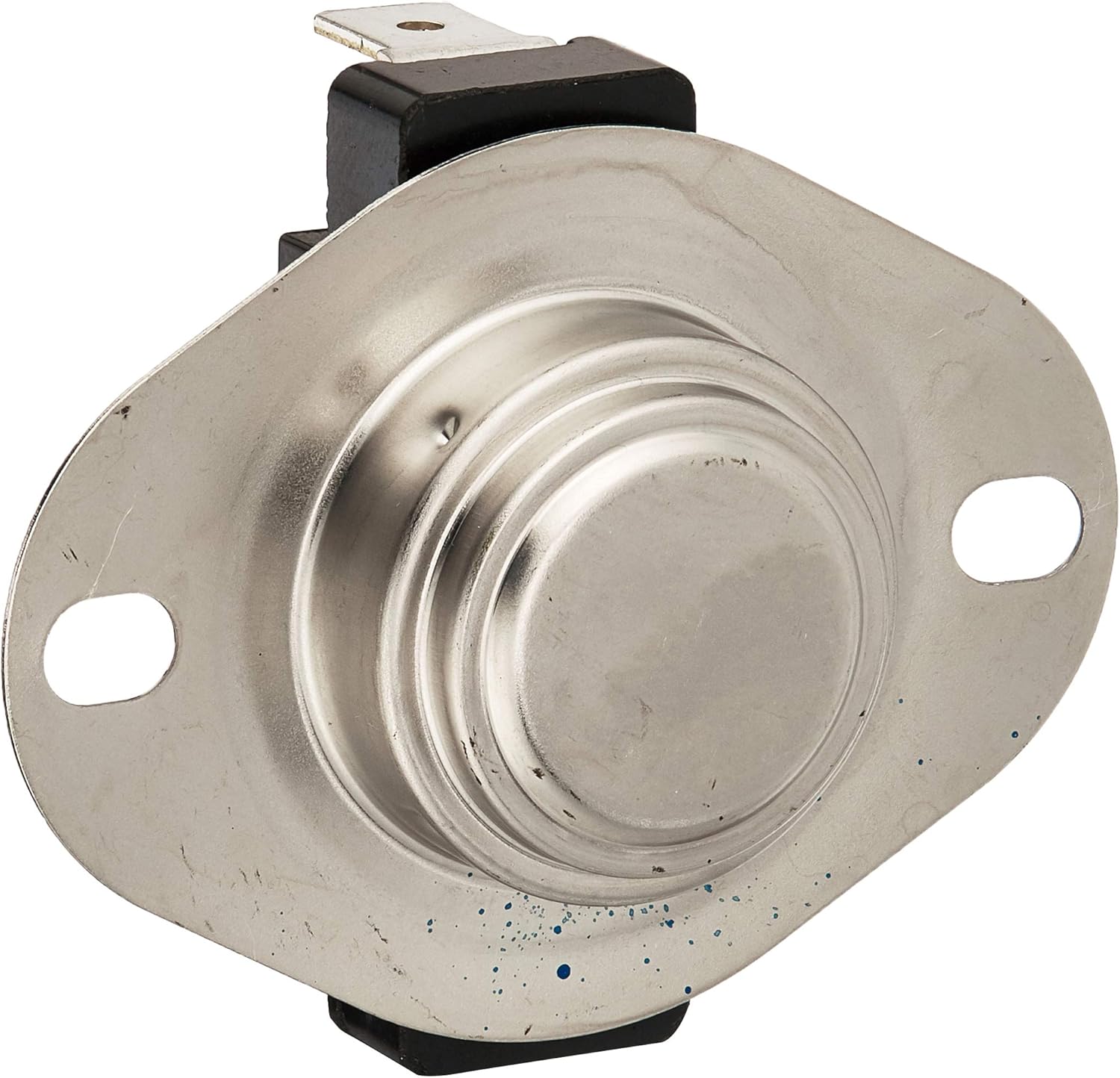

Supco SHF120 Thermostat Fan Control 120/240 VAC 10 A at 120 VAC/5 A at 240 VAC

Product Description

Explore the Supco SHF120, a reliable thermostat fan control designed for professional HVAC systems. This SPST switch reliably controls fan operation with an automatic reset and a close on rise functionality.

• Designed to handle 120/240 Volt AC.
• Current capacity of 10 Amp at 120 Volt AC and 5 Amp at 240 Volt AC.
• Temperature control with 110 degrees F cut-out and 120 degrees F cut-in.

Product Highlights

The SHF120 model is appraised for its welded construction which enhances integrity of current-carrying components. Its bimetal disc temperature control offers proven reliability in a cost-effective design.

Product Information

Standard Information

• Brand: Supco
• Model: SHF120
• Type: Thermostat Fan Control

Technical Specifications

• Voltage Rating: 120/240 Volt AC
• Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC
• Switch Type: SPST
• Temperature Rating: 110 degrees F (Cut-Out), 120 degrees F (Cut-In)
• Approval: UL, CSA
• Disc Material: Bi-Metal
• Ambient Temperature Rating: -40 to 350 degrees F

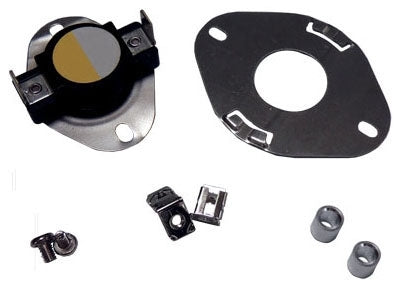

• Includes: Adapter Flange Plate
