Supco SFPC Freeze Protection Control 120/240 VAC 5.8 A at 120 VAC/2.9 A at 240 VAC FLA

Product Description

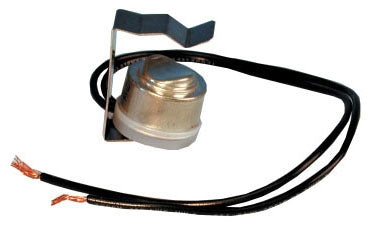

The Supco SFPC is a freeze protection control designed to protect air conditioning evaporator coils from freezing. This device operates at 120/240 volts AC and is rated for five point eight amps at 120 volts AC and two point nine amps at 240 volts AC. It opens at thirty-five degrees Fahrenheit and closes at fifty degrees Fahrenheit, providing essential temperature monitoring for HVAC applications.

• Voltage Rating: 120/240 VAC
• Current Rating: 5.8 A at 120 VAC / 2.9 A at 240 VAC
• Temperature Settings: Opens at 35°F, Closes at 50°F

Product Highlights

This control is suitable for use in HVAC systems, especially in applications where protecting components from freezing is critical. It fits up to seven eighths inch OD tubing and includes a clip for secure installation.

Product Information

Standard Information

• Brand: Supco
• Manufacturer Part Number: SFPC

Technical Specifications

• Current Rating: 5.8 Amp at 120 VAC / 2.9 Amp at 240 VAC (Full Load), 34.8 Amp at 120 VAC / 17.4 Amp at 240 VAC (Locked Rotor)
• Power Rating: 125 Volt Amp at 120/240 VAC (Pilot Duty)
• Switch Type: SPST
• Temperature Rating: 35°F Open, 50°F Close, 15°F Differential
• Ambient Temperature Rating: 350°F
• Including Clip: Yes
