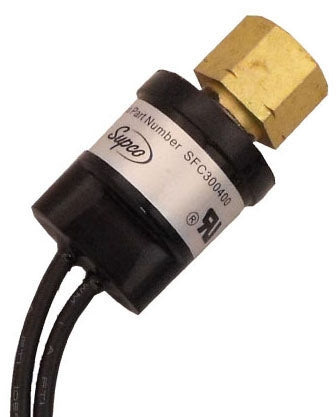

Supco SFC300400 Fan Cycling Pressure Switch 24/120/240 VAC 300 PSI / 400 PSI

Product Description

The Supco SFC300400 is a fan cycling pressure switch designed to control refrigeration and air conditioning systems. This switch operates at 24/120/240 VAC and supports a maximum pressure of 650 PSI. Other ratings include an open pressure of 300 PSI and a close pressure of 400 PSI. It is suitable for various refrigerants and is built for durability.

• Encapsulated and non-adjustable design for reliable operation
• Suitable for refrigeration systems, air conditioning, and heat pumps
• Snap-acting with stainless steel hermetically sealed sensor

Product Highlights

This pressure switch features excellent set point repeatability, ensuring it will perform accurately over time.

Product Information

Standard Information

• Brand: Supco
• MPN: SFC300400

Technical Specifications

• Operating Pressure Range: 0 to 650 PSI
• Cut-Out Pressure Rating: 300 PSI (Open)
• Cut-In Pressure Rating: 400 PSI (Close)
• Voltage Rating: 24/120/240 Volt AC
• Contact Configuration: SPST
• Temperature Rating: Ambient 20 to 176 Degrees Fahrenheit, Fluid 60 to 250 Degrees Fahrenheit
• Connection Type: 1/4 Inch SAE Female Flare
• Life Cycle Rating: 100,000 Average at Rated Load
