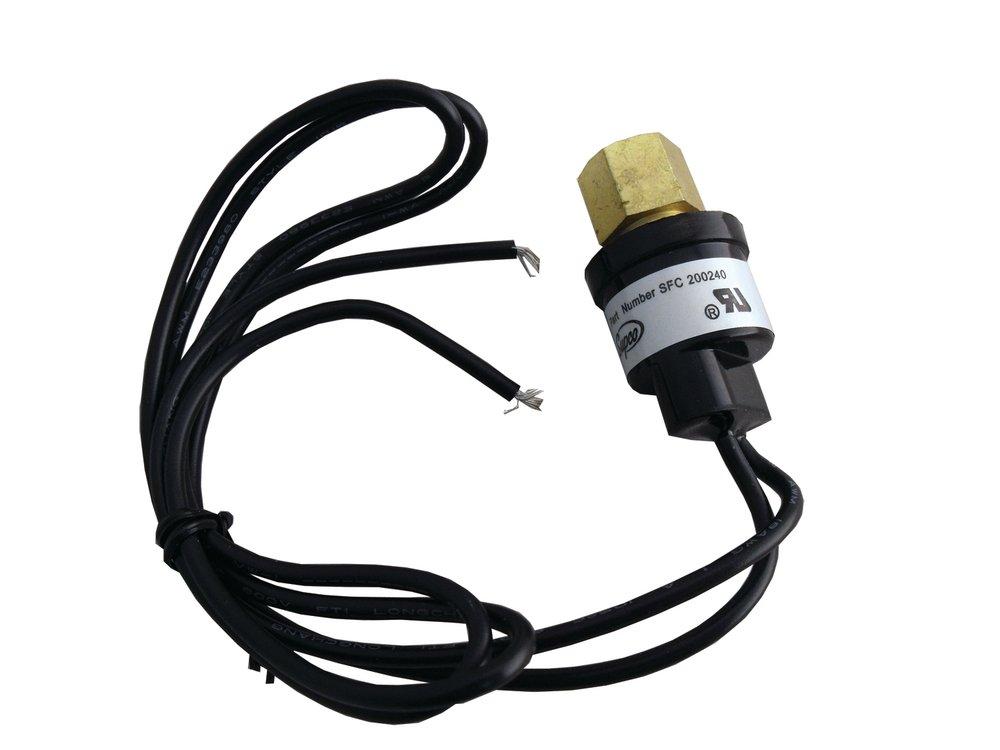

Supco SFC200240 200 psi Fan Cycling Pressure Switch

Product Description

The Supco SFC200240 is a fan cycling pressure switch designed for HVAC systems. This switch operates at 200 psi cut-out and 240 psi cut-in. It features a small size that allows for easy direct mounting. It is built to last with reliable materials and can handle high cycling loads.

• Rated for 100,000 cycles at load.
• Features a stainless steel hermetically sealed sensor.
• Pressure range of zero to 650 psi.

Product Highlights

This versatile switch is suitable for various applications including fans and blowers in HVAC equipment. It ensures excellent repeatability and stability of set points.

Product Information

Standard Information

• Brand: Supco
• MPN: SFC200240

Technical Specifications

• Operating Voltage: 24/120/240 Volts
• Temperature Range: Ambient 20°F to 176°F, Fluid 60°F to 250°F
• Burst Pressure: 5000 PSI
• Connection Size: 1/4 SAE female flare
• Weight: 0.14 lbs
• Dimensions: 2.95 inches (Length) x 4.2 inches (Width) x 1.55 inches (Height)
• Pressure Type: SPST close on pressure rise
