Supco SFB220T Adapter Tee 1 / 4 inches x 1 / 8 inches

Product Description

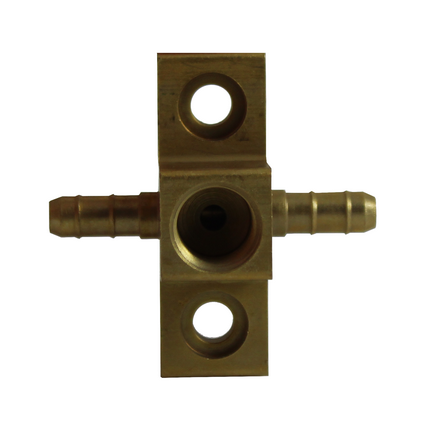

The SUPCO SFB220T is a compact, one-piece brass adapter tee with two 1 / 4" barb connections to a 1 / 8" FPT connection. It is suitable for pneumatic systems, humidifiers, filters, test apparatus, and climate control circuits. The adapter tee offers excellent vibration resistance and does not require clamps.

• Compact design
• Constructed from CDA 360 brass
• No clamps required

Product Highlights

This adapter tee features a compact, one-piece brass construction, excellent vibration resistance, and no need for clamps.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SFB220T
• Country of Origin: CHINA

Technical Specifications

• Working Temperature: -65°F to 90°F (-53°C to 32°C)
• Maximum Working Pressure: 150 PSI (10 BAR)
• Style: Tube to FPT
• Connection 1: 1 / 4" Barb
• Connection 2: 1 / 4" Barb
• Connection 3: 1 / 8" FPT
• Applications: Pneumatic systems, Humidifiers, Filters, Test apparatus, Climate control circuits
• Conn. Size: 1/4" x 1/8"
