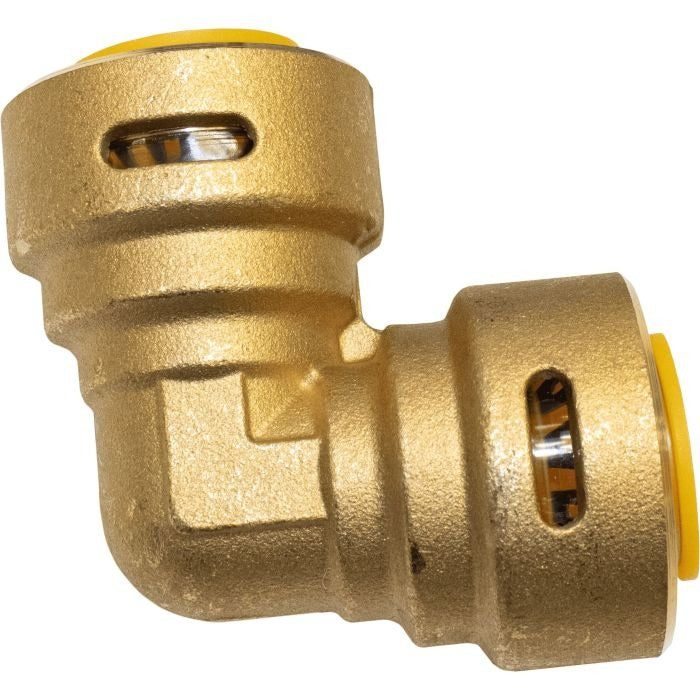

Supco SBE34 90 Deg Elbow (3/4 In)

Product Description

The Supco SBE34 is an SB1 series 3/4 in quick-connect 90 deg elbow fitting for refrigeration and HVAC systems. It provides solder-free, flame-free, tool-free push-fit connections and is constructed of C3771 brass with polycarbonate components and a chloroprene O-ring. The fitting is rated to 870 PSI MRP, -40 to 250 F operating range, 1.732 in length, 1.457 in outside diameter, and supports a 30 micron vacuum.

• Solder-free, flame-free, tool-free SB1 quick-connect push-fit fitting constructed of C3771 brass with polycarbonate components and chloroprene O-ring.
• Rated 870 PSI maximum rated pressure, 3600 PSI minimum burst pressure, and temperature range -40 to 250 F; vacuum capability 30 microns.
• Approved for 1/4 in to 7/8 in copper tubing (hard drawn and annealed) and compatible with a wide range of refrigerants including R134a, R410A, R1234yf and others.

Product Highlights

SB1 series 3/4 in quick-disconnect 90 deg elbow; 1.732 in length, 1.457 in OD; 870 PSI MRP; compatible with common refrigerants and 1/4–7/8 in copper tubing; UL listed and vibration resistant.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SBE34
• Country of Origin: US
