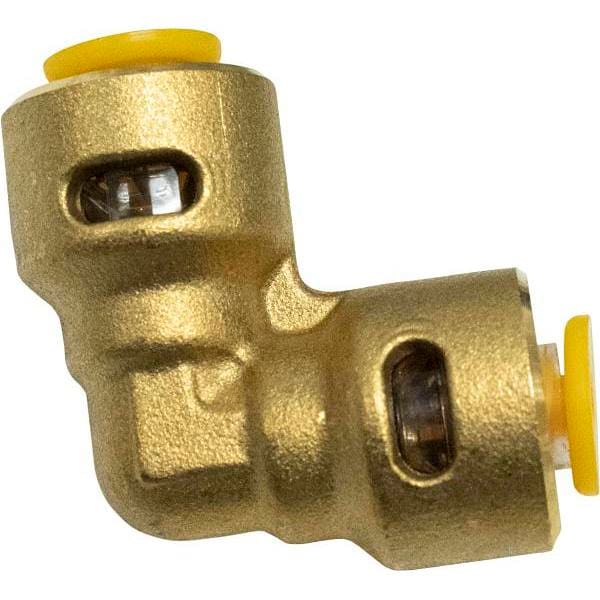

Supco SBE14 Coupler Solder Free 1/4 (90°)

Product Description

The Supco SBE14 is a solder-free SB1 series quick-connect refrigerant coupler designed for 1/4 in copper tubing. It provides flame-free, tool-free installation without brazing or nitrogen purge and features a C3771 brass body with polycarbonate components and a chloroprene O-ring. The fitting is rated to 870 psi, continuous operating temperature up to 250°F (121°C), and is compatible with a broad range of refrigerants and copper tubing types.

• Flame-free, tool-free quick-connect coupler with solder-free installation for 1/4 in tubing
• C3771 brass body, polycarbonate components, chloroprene O-ring; length 1.161 in
• Rated 870 psi (60 bar) MRP, minimum burst ~3600 psi, vacuum capability 30 microns; approved for many refrigerants

Product Highlights

Solder-free 1/4 in quick-connect coupler; C3771 brass body; rated 870 psi and 250°F; compatible with multiple refrigerants and copper tubing types.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SBE14
• Country of Origin: South Korea

Technical Specifications

• Brand: SUPCO
• Manufacturer Part Number: SBE14
• Series: SB1
• Product Type: Coupler, solder free
• Fitting Type: 90 deg elbow / coupler
• Connection Size: 1/4 in (nominal tubing size)
• Connection Type: Quick-Disconnect
• Connection Thread: None
• Length: 1.161 in
• Body Material: C3771 brass
• Component Material: Polycarbonate
• O-Ring Material: Chloroprene
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Maximum Rated Pressure (MRP): 870 PSI / 60 Bar
• Minimum Burst Pressure: 3600 PSI / ~250 Bar
• Vacuum Capability: 30 microns
• Tubing Compatibility Standards: ASTM B280, UNI EN 12735
• Approved Refrigerants: R134a, R404A, R290, R407A, R600a, R507, R22, R410A, R32, R407C, R448A, R449A, R454B, R500, R1234yf, R1234ze
• UL Listings/Approvals: UL Listed 207 (refrigeration fittings)
• Temperature Rating: 250°F
• Pressure Rating: 870 PSI
• Compatible Applications: Refrigeration and glycol/non-potable water service
