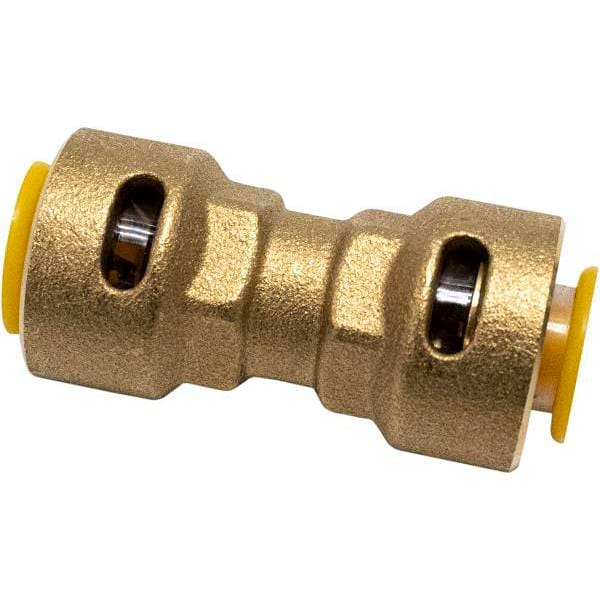

Supco SBC38 Coupler Solder Free (3/8 in)

Product Description

Supco SBC38 is a solder-free SB1 series quick-connect refrigerant coupler for 3/8 in copper tubing. It uses a C3771 brass body with polycarbonate components and a chloroprene O-ring, and is rated to 870 psi and 250°F (121°C). The fitting supports vacuum capability to 30 microns, fits 1/4 in to 7/8 in copper types, and is approved for A2L and common HFC/HFO refrigerants without brazing or nitrogen purge.

• Flame-free, tool-free quick-connect design for installation without brazing or nitrogen purge
• C3771 brass body, polycarbonate components, chloroprene O-ring; UL listed and vibration resistant (UL 1963)
• Rated 870 psi (60 bar) maximum, 3600 psi minimum burst, continuous to 250°F (121°C); vacuum capability 30 microns

Product Highlights

3/8 in quick-disconnect refrigerant coupler with C3771 brass construction, wide refrigerant compatibility, and UL listings

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SBC38
• Country of Origin: South Korea

Technical Specifications

• Brand: Supco
• Manufacturer: NSi Industries
• MPN: SBC38
• Series: SB1 Series
• Connection Size: 3/8 in (0.375 in)
• Connection Type: Quick-disconnect coupler
• Body Material: C3771 brass
• Components Material: Polycarbonate
• O-Ring Material: Chloroprene (super neoprene)
• Continuous Operating Temperature: 250°F (121°C)
• O-Ring Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Maximum Rated Pressure (MRP): 870 psi (60 bar)
• Minimum Burst Pressure: 3600 psi (≈250 bar)
• Vacuum Pressure Capability: 30 microns
• Length (overall): 1.969 in
• Approved Refrigerants: R134a, R404A, R290, R407A, R600a, R507, R22, R410A, R32, R407C, R448A, R449A, R454B, R500, R1234yf, R1234ze
• Approved for Hard Drawn Copper: 1/4 in to 7/8 in (Type ACR, M, L, K)
• Approved for Annealed (Soft) Copper: 1/4 in to 7/8 in (Type ACR, L, K)
• Compatibility - Tubing Tolerance: ASTM B280, UNI EN 12735
• UL Listings / Ratings: UL 207 (SA #44910 SDTW(7))
• Vibration Resistant Rating: UL 1963
• For Use With: A2L refrigerants
