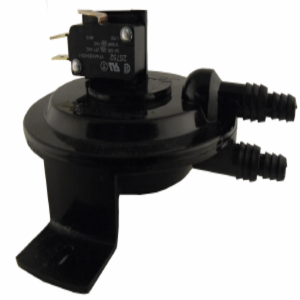

Supco RSS498013 Adjustable Air Pressure Sensing Switch, 1.0 - 4.0 Inch WC, 0.1 Inch WC Differential

The Supco RSS498013 Adjustable Air Pressure Sensing Switch is the perfect choice for residential and light commercial applications. This switch is factory calibrated and factory fixed set points, NEMA rated housings, manual resets and gold contacts. It is adjustable from 1.0 - 4.0 Inch WC with a 0.1 Inch WC Differential and 14 Inch WC Maximum. It has a SPDT, Barbed, 5 A at 120/277 VAC Non-Inductive, 5 A at 28 VDC Noninductive, 1 A at 120 VA Pilot Duty, 100000 Cycle, -40 to 190 deg F, 1/4 Inch Spade, Glass Filled Polycarbonate Housing, 4 Inch H x 3-1/4 Inch W x 2-1/8 Inch D. The contractor kit includes the hardware, replacement hose and an adjustment tool for easy installation and calibration.

• Supco RSS498013 Adjustable Air Pressure Sensing Switch
• 1.0 - 4.0 Inch WC, 0.1 Inch WC Differential
• SPDT, Barbed, 5 A at 120/277 VAC Non-Inductive
• 5 A at 28 VDC Noninductive, 1 A at 120 VA Pilot Duty
• 100000 Cycle, -40 to 190 deg F, 1/4 Inch Spade
