Supco PCQ104 Electric Heat Sequencer Control DPST 24 Volt replacement Q104 24A34-4 525-37325-000 DGS104 33244 33845

Product Description

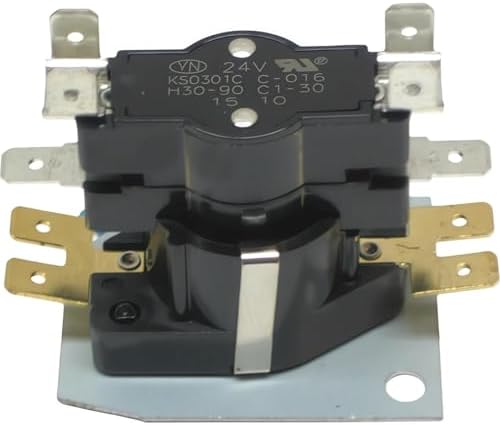

The SUPCO PCQ104 is an electric heat sequencer control, DPST, operating at 24 volts. It is designed for Q104, 24A34-4, and 525-37325-000 systems. This sequencer features 1 timing and 2 switches, with off times ranging from 1-30 seconds and on times from 30-90 seconds. PSQ models are direct replacements for most fan/heat sequencing functions.

• Direct replacement for Carrier HN67QC006, Diversitech DGS104, Klixon 51172-22, Mars 33244, 33845, Napco NS104, Supco Q104, White Rodgers 24A34-4, Watsco TDR25, York 525-37325-000
• Features terminal markings equivalent to competitive types.
• Combined load rating of 30A @ 240 VAC total, 23A non-inductive + 7 FLA / 42 LRA inductive.

Product Highlights

The SUPCO PCQ104 heat sequencer ensures efficient and reliable operation for fan and heat sequencing applications, offering broad compatibility and precise timing control.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: PCQ104

Technical Specifications

• Type: DPST
• Timing: 1 Timing / 2 Switch
• Off Time: 1-30 Seconds
• On Time: 30-90 Seconds
• Volts: 24
