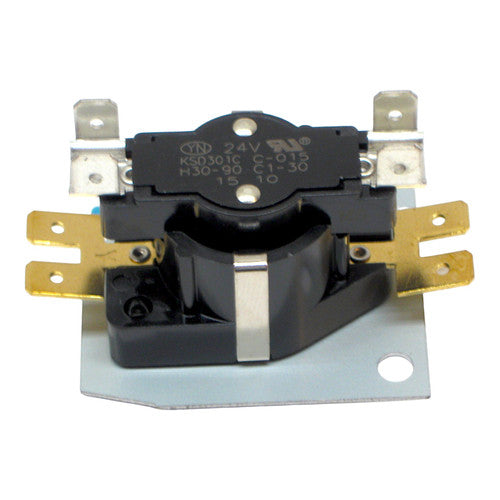

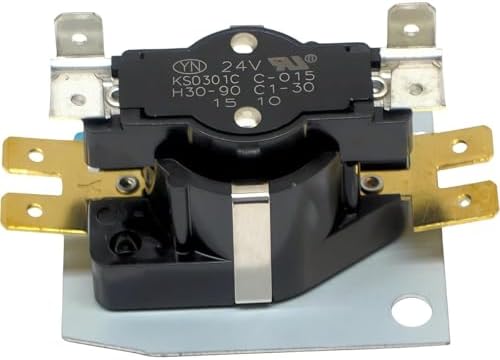

Supco PCQ102 Electric Heat Sequencer Control SPST 24 Volt for Q102 / 24A34-2 / DGS102

Product Description

The SUPCO PCQ102 electric heat sequencer control is a SPST 24 Volt unit designed for Q102 / 24A34-2 / DGS102. It replaces Carrier 40CF680020, Diversitech DGS102, Klixon 51172-22, Mars 33222, Napco NS102, Packard HS24A342, Supco Q102, White Rodgers 24A34-2, Watsco TDR15, and York 525-37322-000.

• Direct replacement for most fan/heat sequencing functions.
• Terminal markings are equivalent to competitive types.
• M1-M2 and M3-M4 are always the first switches to turn ON and the last to turn OFF.

Product Highlights

This electric heat sequencer control offers a direct replacement for fan/heat sequencing with equivalent terminal markings.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: PCQ102

Technical Specifications

• Voltage: 24 Volts
• Type: SPST
• Timing/Switch: 1 Timing / 1 Switch
• Off Time: Off 1-30 Seconds
• On Time: On 30-90 Seconds
• Part Number: RIV05860
• Item model number: NTTP05860
• Material: Plastic
• Wattage: 1 watts
