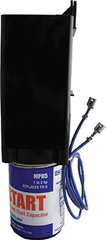

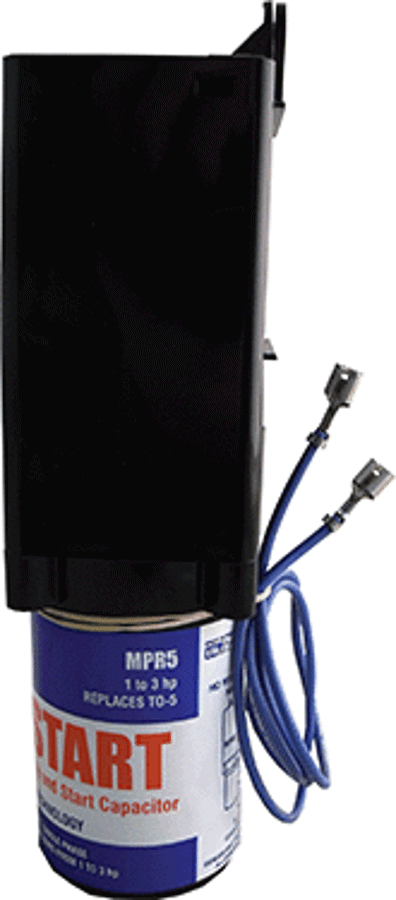

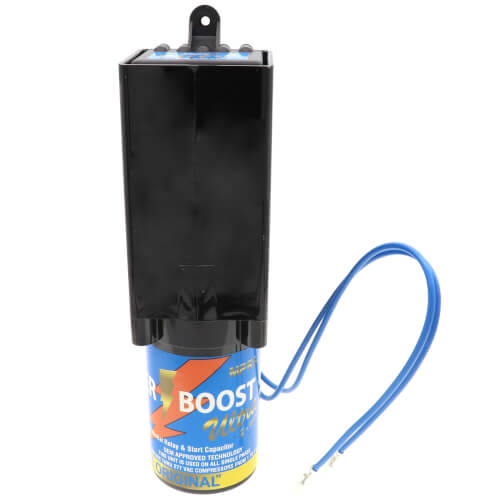

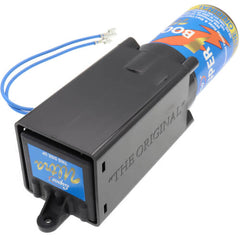

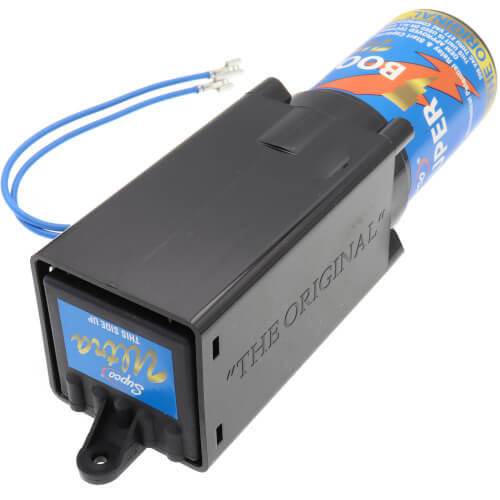

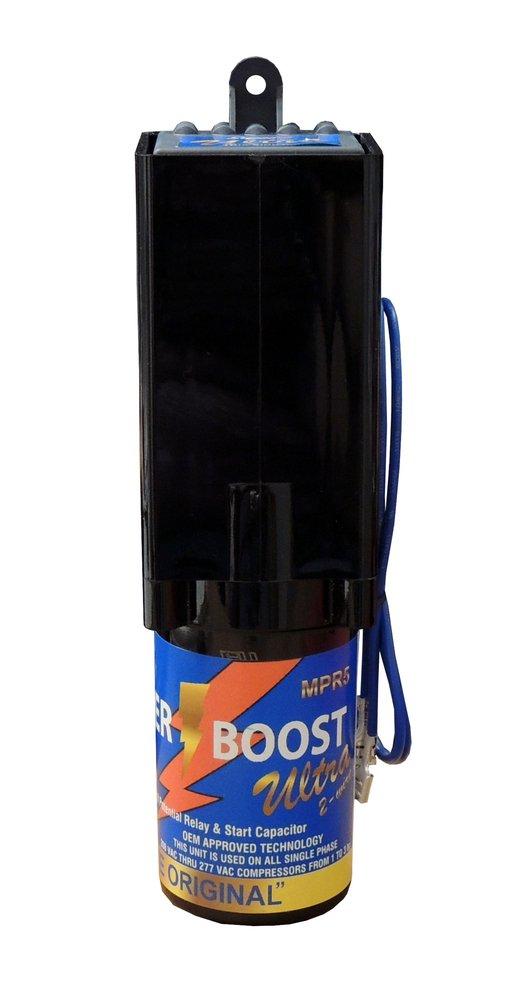

Supco MPR5 Ultra Start 1 - 3 hp 330V Round 2-Wire Mechanical Potential Relay

Product Description

Supco MPR5 is a mechanical potential relay designed for hard start applications in HVAC systems. This device helps to enhance the starting capabilities of compressors within the one to three horsepower range at 330 volts. The MPR5 utilizes a voltage-sensitive relay to facilitate an instant restart of equipment, making it essential for efficient HVAC operation.

• Voltage-sensitive relay for immediate compressor restart
• Compatible with PSC and CSIR type compressors
• OEM approved technology ensures reliability

Product Highlights

The Supco MPR5 hard start kit includes a mechanical potential relay and a start capacitor, providing an easy two-wire installation that reduces labor time.

Product Information

Standard Information

• Brand: Supco
• MPN: MPR5

Technical Specifications

• Operating Voltage: 208 to 277 VAC
• Capacitor Voltage: 330 VAC
• HP Range: 1 to 3 HP
• Capacitor (MFD): 189 to 227 MFD
• Amps: 0-35
• Relay Type: Potential or Start
• Cycle/Hertz: 50/60 Hz
• Dimensions: Height: 2.25 inches, Length: 8.25 inches, Width: 2.25 inches
• Weight: 1 pound
• Phase: Single
• Country of Origin: BRA
