Supco ML60 thermostat 1200 watt 3/4 inch disc 12 inch lead 60 degree replaces WR50X60 PS303547 AP2071242

Product Description

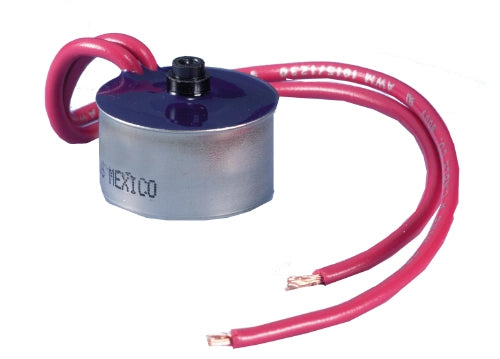

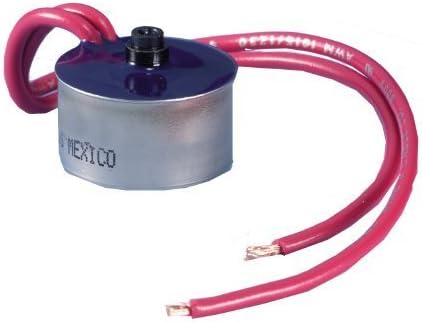

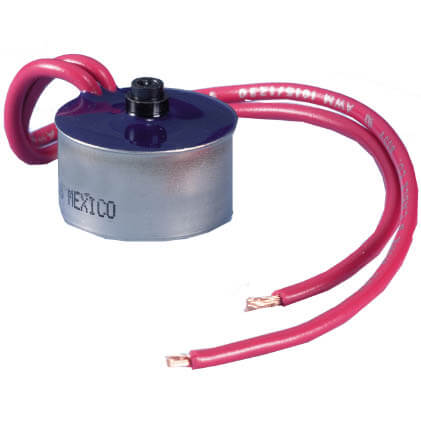

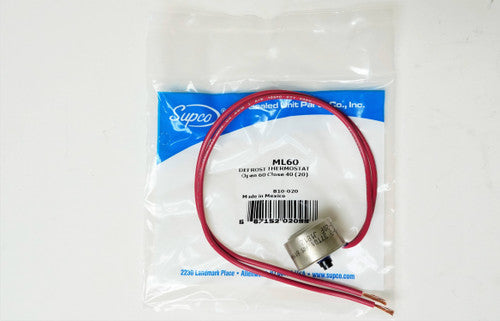

The SUPCO ML60 is a bi-metal disc thermostat designed for temperature control in various applications. It features a sealed, moisture-resistant design and handles electrical loads up to 10 amps at 120VAC and 5 amps at 240VAC, with a power rating of 1200 watts. This SPST switch type thermostat has a temperature rating of 60 Deg F (open) and 20 Deg F (close), with a 40 Deg F differential. It is UL and CSA approved, suitable for defrost, ice maker, residential, and commercial use.

• Sealed construction provides moisture resistance for moisture-prone environments.
• High-speed contact separation ensures long contact life.
• Rated for 10A at 120V AC and 5A at 240V AC, with a 1200 Watt power rating.

Product Highlights

Bi-metal disc thermostat with UL/CSA approval, ideal for defrost and general temperature control.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: ML60
• Country of Origin: China

Technical Specifications

• Type: Bi-Metal Disc
• Voltage Rating: 120/240 Volt AC
• Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC
• Power Rating: 1200 Watt
• Switch Type: SPST
• Temperature Rating: 60 Deg F (Open), 20 Deg F (Close), 40 Deg F (Differential)
• Approval: UL, CSA
• Disc Size: 3/4 Inch
• Lead Size: 12 Inch
• Case Material: Waterproof Epoxy Potting Metal
• Application: Defrost/Ice Maker, Residential and Commercial
• Style: 37TAM
• Category: HVAC/R & Fans
• Additional MPN: 611446
• Series: ML
• UNSPSC Code: 41112209
• Reference ID: SUPCOML60
• Shape: Rectangular
• Thermostat Type: L60-20F
• Replaces Part Numbers: WR50X60, PS303547, AP2071242
• Alternate Part Number: SEA ML60
