Supco M814520 Electro-mechanical Defrost Control 240V

Product Description

The SUPCO M814520 electro-mechanical defrost control is designed to meet a wide variety of customer requirements. These controls are used on many different types of commercial refrigeration equipment, including walk-in boxes, reach-in boxes, refrigerated cases, and condensing units. Operates on 240 VAC and replaces Paragon 8145-20.

• Time Initiated Defrost Timer Mechanism
• Designed To Replace Paragon 8145-20
• Use For Electric Heat Defrosting and Hot Gas Defrosting

Product Highlights

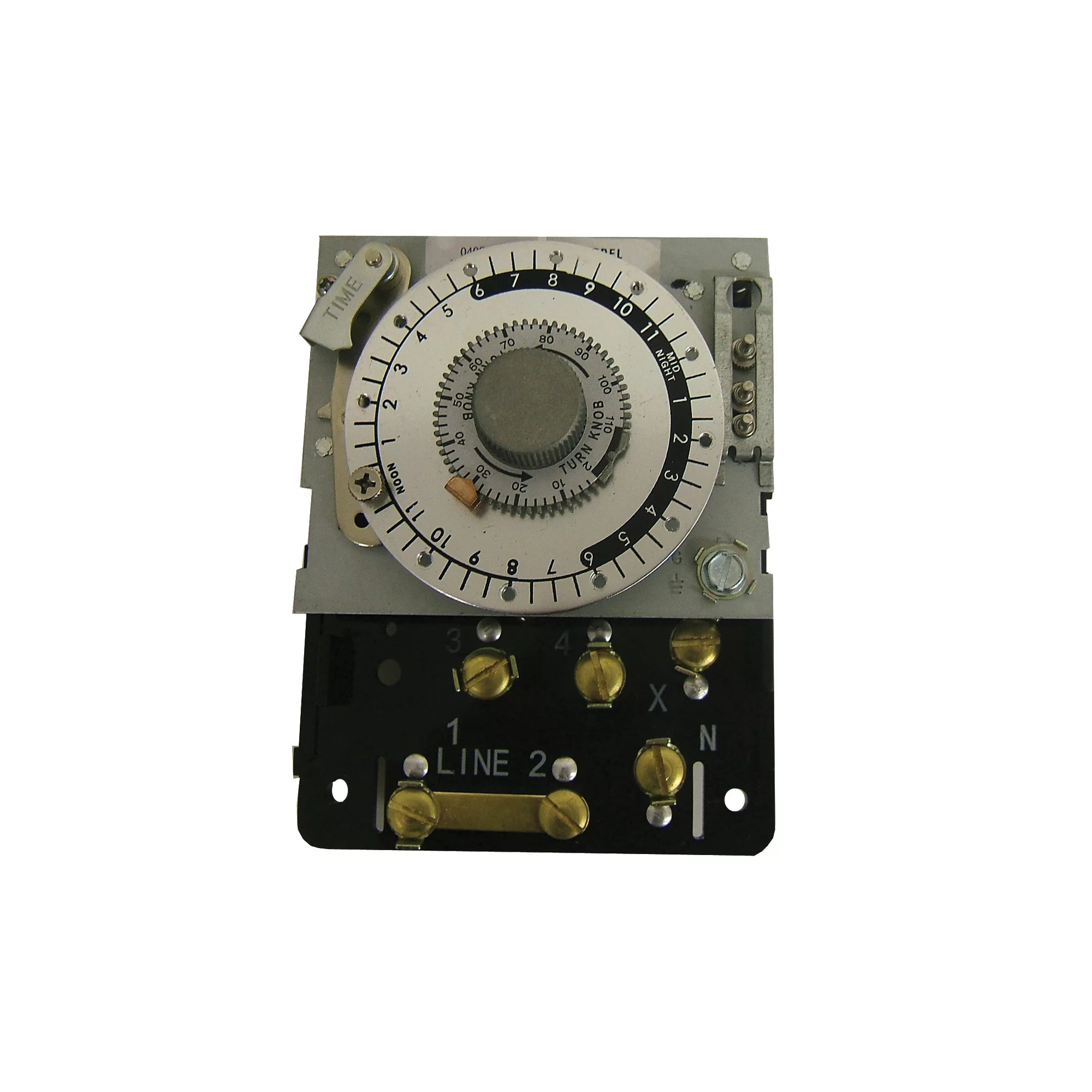

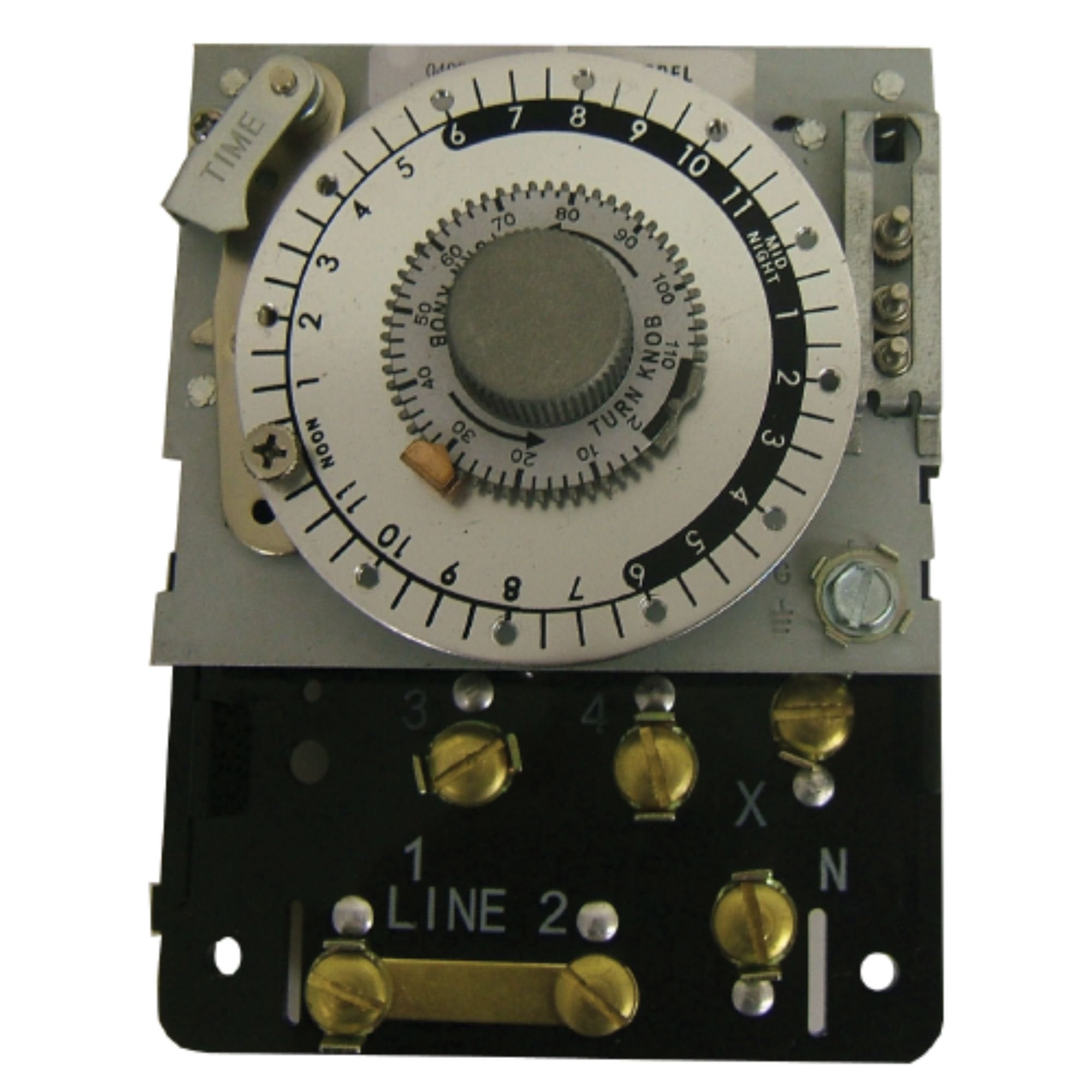

The SUPCO M814520 is a timer mechanism without a metal case, designed for commercial refrigeration equipment. It features a time-initiated defrost and can be used for electric heat or hot gas defrosting.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: M814520
• Country of Origin: BRA

Technical Specifications

• Brand: Supco
• Cycle/Hertz: 50/60 Hz
• Height: 2.25
• Length: 4
• Phase: Single
• Prop 65: Yes
• Stage: Single
• UPC: 687152208272
• Voltage: 240 VAC
• Width: 5.5
• Country of Origin: BRA
• Product Type: TIMER
• MPN: M814520
• Amperage: 40A non-inductive @ 120, 208 or 240 VAC
• Position: Normally Open, Normally Closed
• Switching: 1 NO/ 1 NC
• Operating temperate range: -35 °F to 175 °F (-37°C to 79°C)
• Frequency: 60Hz
• Compatible Brand: For Paragon
• Type: Defrost Control
• Item Number: M814520
