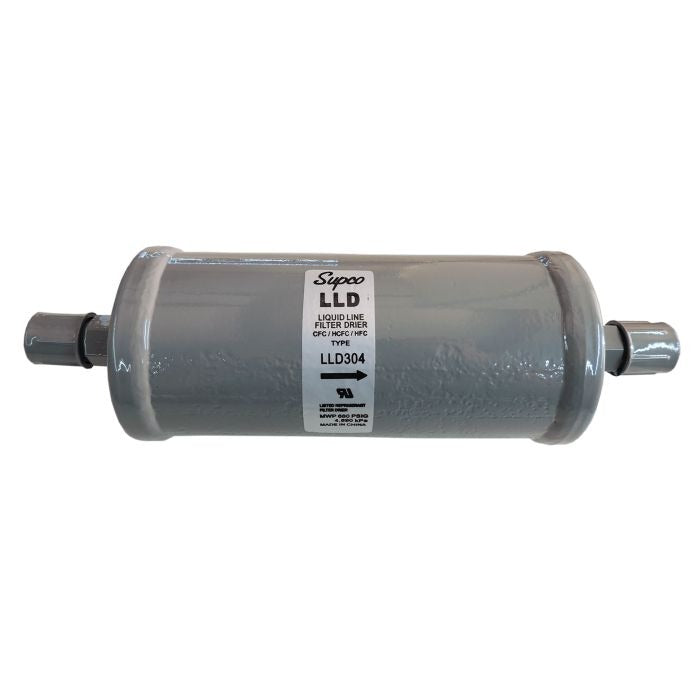

Supco LLD304 Liquid Line Drier 30 cu. in. (1/2 inches SAE)

Product Description

Supco LLD304 is a liquid line filter drier for HVAC and refrigeration systems that removes moisture and contaminants from the liquid refrigerant line. The unit uses a 30 cubic inch solid core desiccant (activated alumina with molecular sieve) and 40 micron filtration to capture acids and particulates. It features 1/2 inch SAE connections, shock-resistant steel construction with corrosion-resistant epoxy finish, and solid copper fittings for sealed refrigeration applications.

• 30 cu. in. capacity with 1/2" SAE connection and 40 micron filtration
• Desiccant blend: activated alumina with molecular sieve for high acid and moisture removal; Copeland approved for POE oils; compatible with CFC, HCFC, HFC and R290
• Shock-resistant steel body with corrosion-resistant epoxy powder paint and solid copper fittings; maximum working pressure 500 psig for 30 cu. in. size

Product Highlights

Solid core liquid line drier, 30 cu. in., 1/2" SAE, 40 micron filtration, activated alumina with molecular sieve desiccant

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: LLD304
• Country of Origin: China
