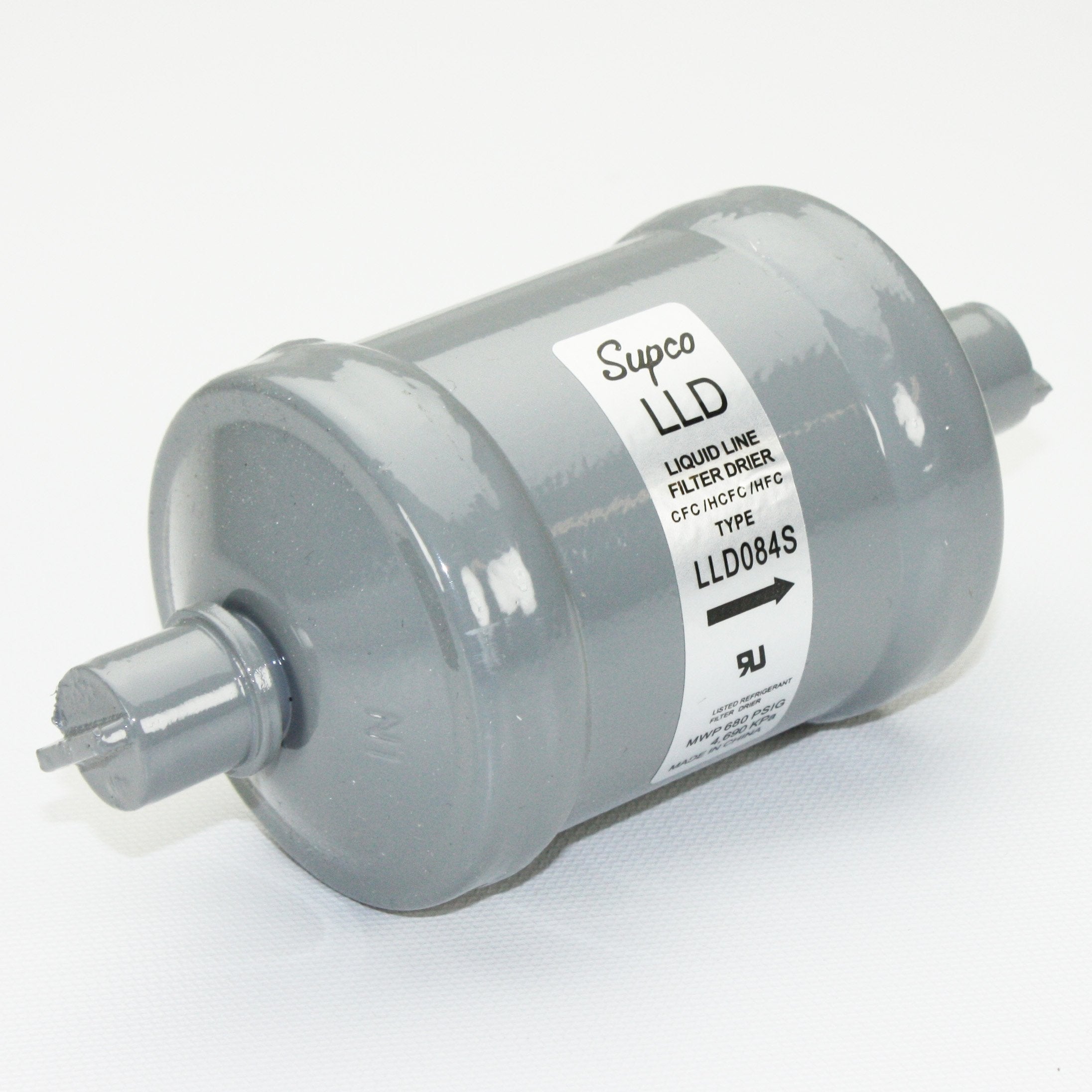

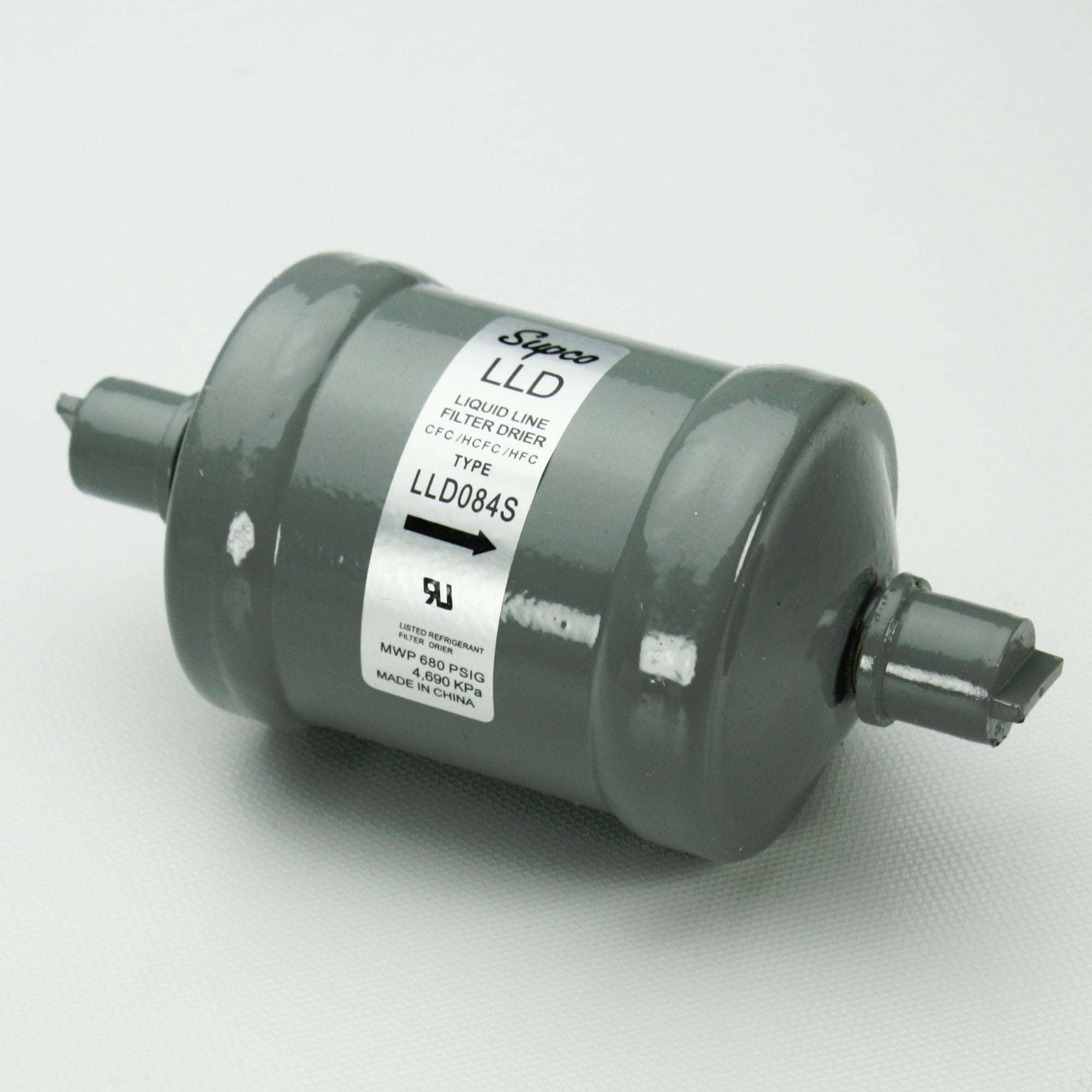

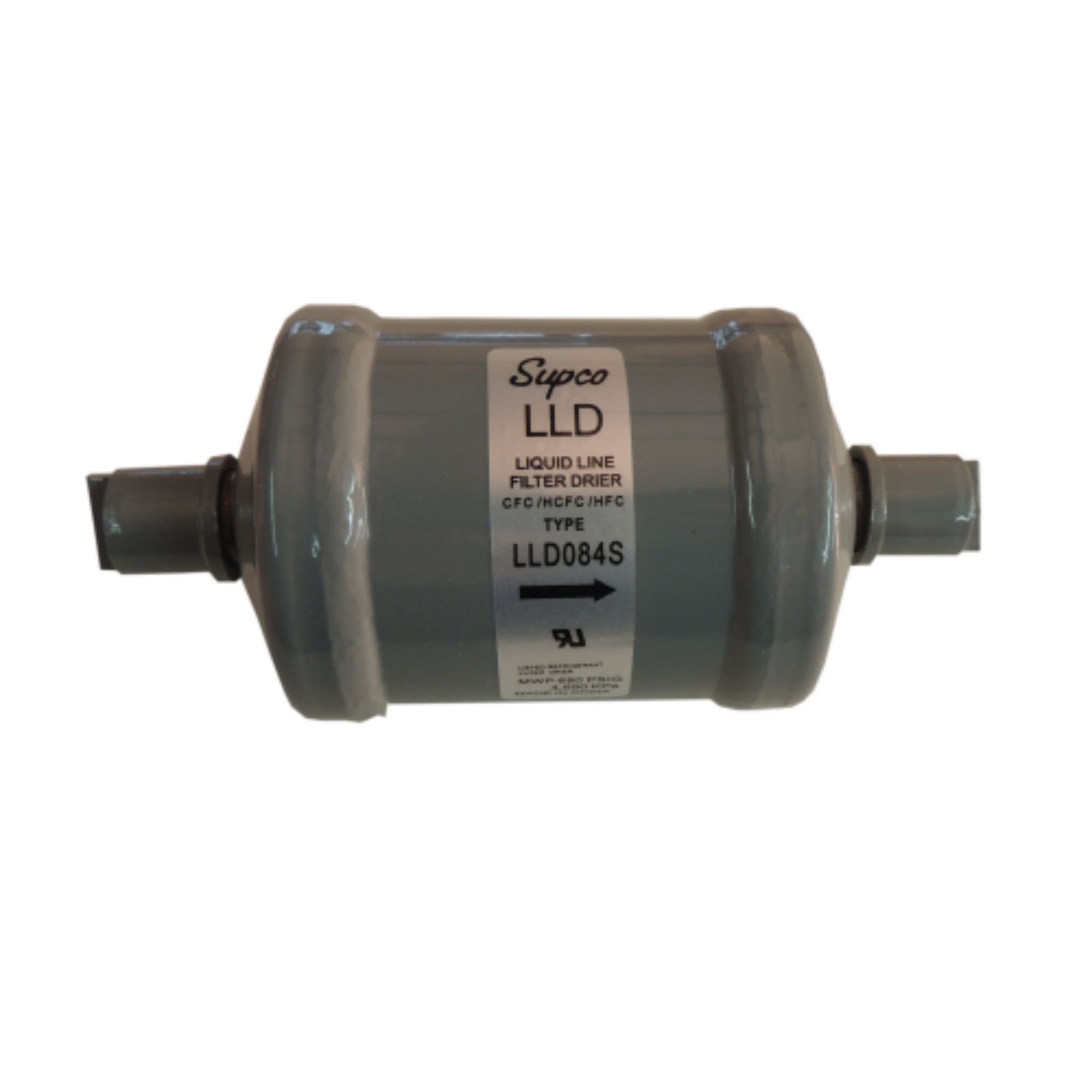

Supco LLD084S Liquid Line Drier 8 inchescu. Replacement LLD084S

Product Description

The Supco LLD084S liquid line drier is designed for use with CFC, HCFC, and HFC refrigerants. This solid core filter drier features an 8 cubic inch unit with a 1/2 inch ODF type connection. It is easy to install and ideal for air conditioning and refrigeration compressors.

• Supco LLD084SLIQUID LINE DRIER
• Supco Replacment Part
• easy to install

Product Highlights

The liquid line drier is compatible with all refrigerants, Copeland approved for POE oils, and features corrosion resistant epoxy powder paint finish.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: LLD084S
• Country of Origin: China

Technical Specifications

• Brand Name: Supco
• Part Number: LLD084S
• Number of Items: 1
• Made in: China
• Desiccant Blend: Activated alumina with molecular sieve
• Filtration: 40 microns
• Maximum working pressure: 600 psig
• Connection Size: 1/2"
• Connection Type: ODF
• Dimensions (End to End): 5 1/2"
• Dimensions (Top to Bottom): 2½"
• Tonnage: 1 to 7 Tons
• Applications: Air conditioning compressors, Refrigeration compressors
• Package Quantity: 1
• Product Type: Liquid Line Filter Dryer
• Body Material: Aluminum
• Finish: Powder Painted
• Compatible Product Type: Refrigeration
• Overall Length: 5.5 in
• Overall Diameter: 2.5 in
• Compatible Refrigerant Group: CFC; HCFC; HFC
• Compatible Refrigerant Type: R-12; R-134A; R-22; R-404A; R-410A; R-502; R-507
• System Size - R-22: 7.6 ton
• System Size - R-410A: 7.6 ton
• Core Type: Activated Alumina/Molecular Sieve
• Maximum Operating Pressure: 600 psi
