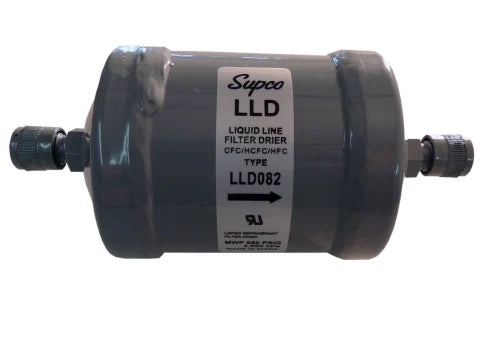

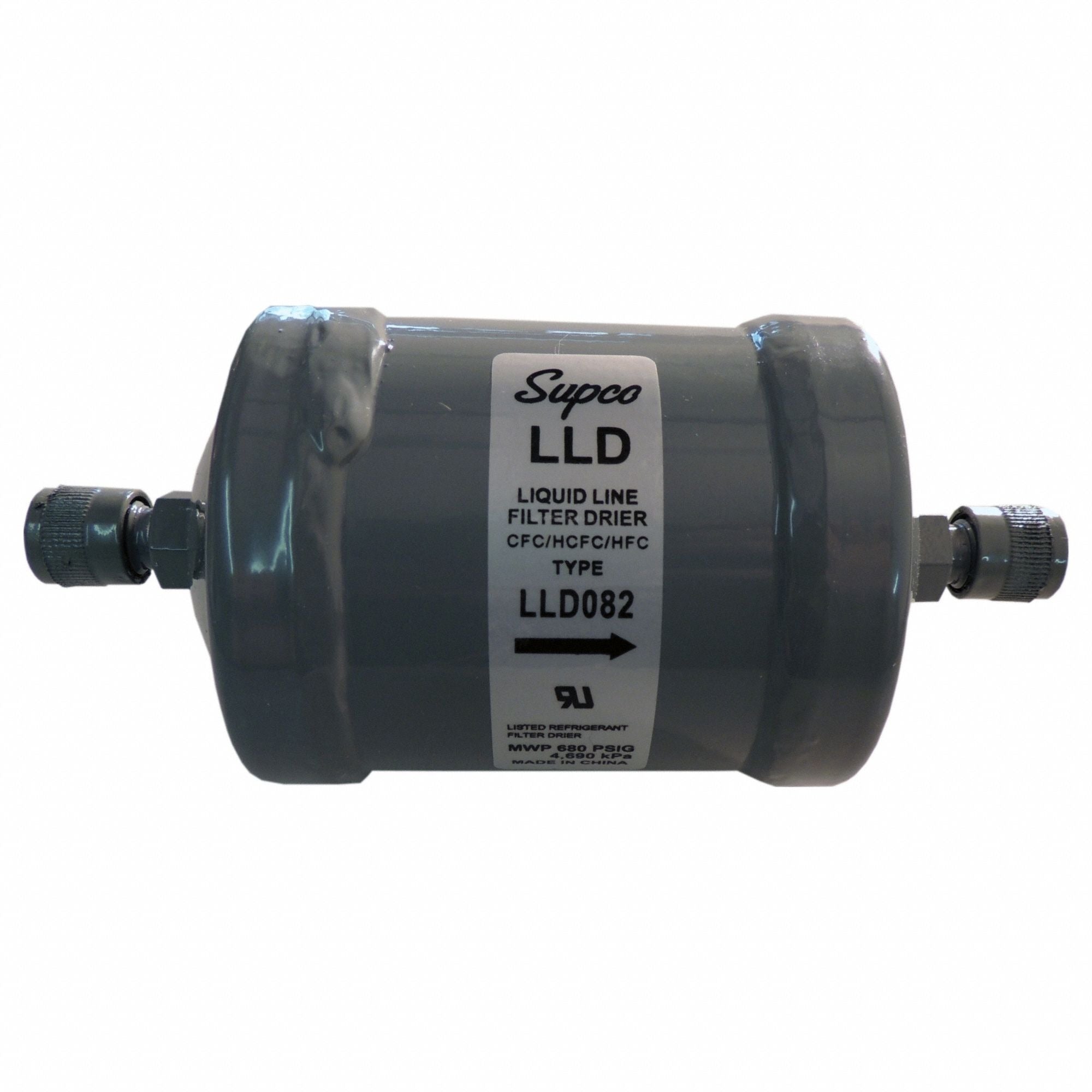

Supco LLD082 Liquid Line Filter Dryer 8 cu in (1 Pack) D082

Product Description

Supco LLD082 is a liquid line filter dryer for refrigeration and air conditioning systems. It features an activated alumina and molecular sieve core with 8 cu in capacity, 1/4 in SAE connection, and solid copper fittings. The unit has a shock-resistant steel body with epoxy powder paint, overall length 5 13/16 in and diameter 2 1/2 in, and is rated to 600 psig maximum working pressure; compatible with CFC, HCFC, and HFC refrigerants including R290 and approved for POE oils.

• Activated alumina and molecular sieve core for moisture and contaminant removal; filtration rated 40 microns
• 1/4 in SAE flare connection, 8 cu in capacity; overall length 5 13/16 in, diameter 2 1/2 in
• Rated to 600 psig maximum working pressure; solid copper fittings; shock-resistant steel body with epoxy powder paint; Copeland approved for POE oils

Product Highlights

1/4 in SAE connection, 8 cu in capacity, activated alumina/molecular sieve core, 600 psig rating

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: LLD082
• Country of Origin: China
