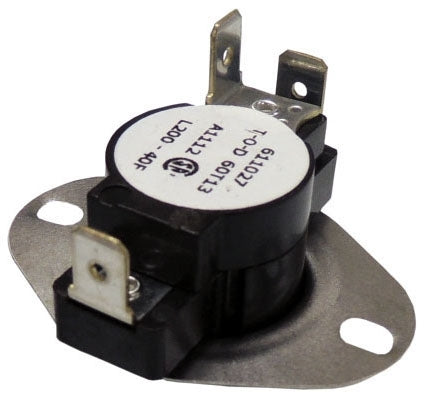

Supco LD200 Thermostat 120/240 VAC 10 A at 120 VAC/5 A at 240 VAC FLA

Product Description

The Supco LD200 is a thermostat designed to operate at 120/240 VAC with a current rating of ten amp at 120 VAC and five amp at 240 VAC. This thermostat features a temperature range for opening at 200 degrees Fahrenheit and closing at 160 degrees Fahrenheit. The unit also has a forty-degree differential and follows the SPDT switch type. Its applications include home laundry dryers and fan limit functions.

• Voltage Rating: 120/240 VAC
• Current Rating: 10 A at 120 V, 5 A at 240 V
• Temperature Rating: 200 °F (Open), 160 °F (Close)

Product Highlights

Supco LD200 provides reliable temperature control in HVAC systems.

Product Information

Standard Information

• Manufacturer: Supco
• Switch Type: SPDT

Technical Specifications

• Voltage Rating: 120/240 VAC
• Current Rating: 10 A at 120 V, 5 A at 240 V
• Temperature Rating: 200 °F (Open), 160 °F (Close), 40 °F (Differential)
• Size: 1.67 inches Width x 2 inches Height
• Approval: UL, CSA
• Disc Material: Bi-Metal
• Ambient Temperature Rating: -40 to 350 °F
• Terminal Type: 1/4 Inch Quick Disconnect
