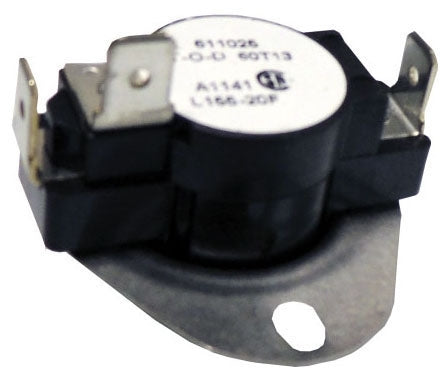

Supco LD155 Thermostat 120/240 VAC 10 A at 120 VAC/5 A at 240 VAC FLA

Product Description

The Supco LD155 is a thermostat designed for HVAC applications. It operates at 120/240 VAC with a current rating of 10 A at 120 VAC and 5 A at 240 VAC. The thermostat features a SPDT configuration, opening on rise, with snap action for reliable performance.

• Temperature rated at 155 degrees Fahrenheit for open and 135 degrees Fahrenheit for close.
• Meets UL and CSA approval standards.
• Suitable for applications such as home laundry dryers and fan limits.

Product Highlights

The Supco LD155 is built for durability and efficiency in temperature control functions in HVAC systems.

Product Information

Standard Information

• Brand: Supco
• MPN: LD155

Technical Specifications

• Type: Open on Rise, Snap Action
• Voltage Rating: 120/240 Volt AC
• Current Rating: 10 Amp at 120 Volt AC / 5 Amp at 240 Volt AC (Full Load)
• Power Rating: 125 Volt Amp at 120/240 Volt AC (Pilot Duty)
• Size: 1.67 inches Width x 2 inches Height
• Temperature Rating: 155 Deg F (Open), 135 Deg F (Close), 20 Deg F (Differential)
• Approval: UL, CSA
• Disc Size: 3/4 Inch
• Ambient Temperature Rating: -40 to 350 Deg F
