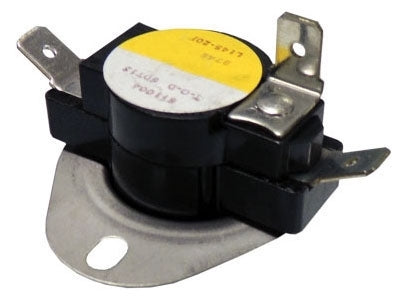

Supco LD145 Thermostat 120/240 VAC 10 A at 120 VAC/5 A at 240 VAC FLA Replacement MPN

Product Description

The Supco LD145 is a thermostat designed for HVAC applications. This unit operates at a voltage rating of 120/240 VAC and a current rating of 10 A at 120 VAC, and 5 A at 240 VAC. It features SPDT switches that open on rise, which makes it suitable for applications such as home laundry dryers and fans. The temperature differential is 20 degrees Fahrenheit, with a temperature rating of 145 degrees Fahrenheit for open and 125 degrees Fahrenheit for close.

• Voltage Rating: 120/240 Volt AC
• Applications: Home laundry dryer and fan limit control
• Manufactured by: Supco

Product Highlights

This thermostat provides reliable temperature control in various settings. Its bimetal disc design enhances durability and ensures long-lasting performance.

Product Information

Standard Information

• Part Number: LD145
• UPC: 68715202019

Technical Specifications

• Current Rating: 10 A at 120 VAC / 5 A at 240 VAC (Full Load)
• Power Rating: 125 VA at 120/240 Volt AC
• Temperature Rating: 145 Deg F (Open), 125 Deg F (Close)
• Size: 1.67 inches Width x 2 inches Height
• Approval: UL, CSA
• Disc Size: 3/4 inches
• Ambient Temperature Rating: -40 to 350 Deg F
• Mounting Type: Air Stream
