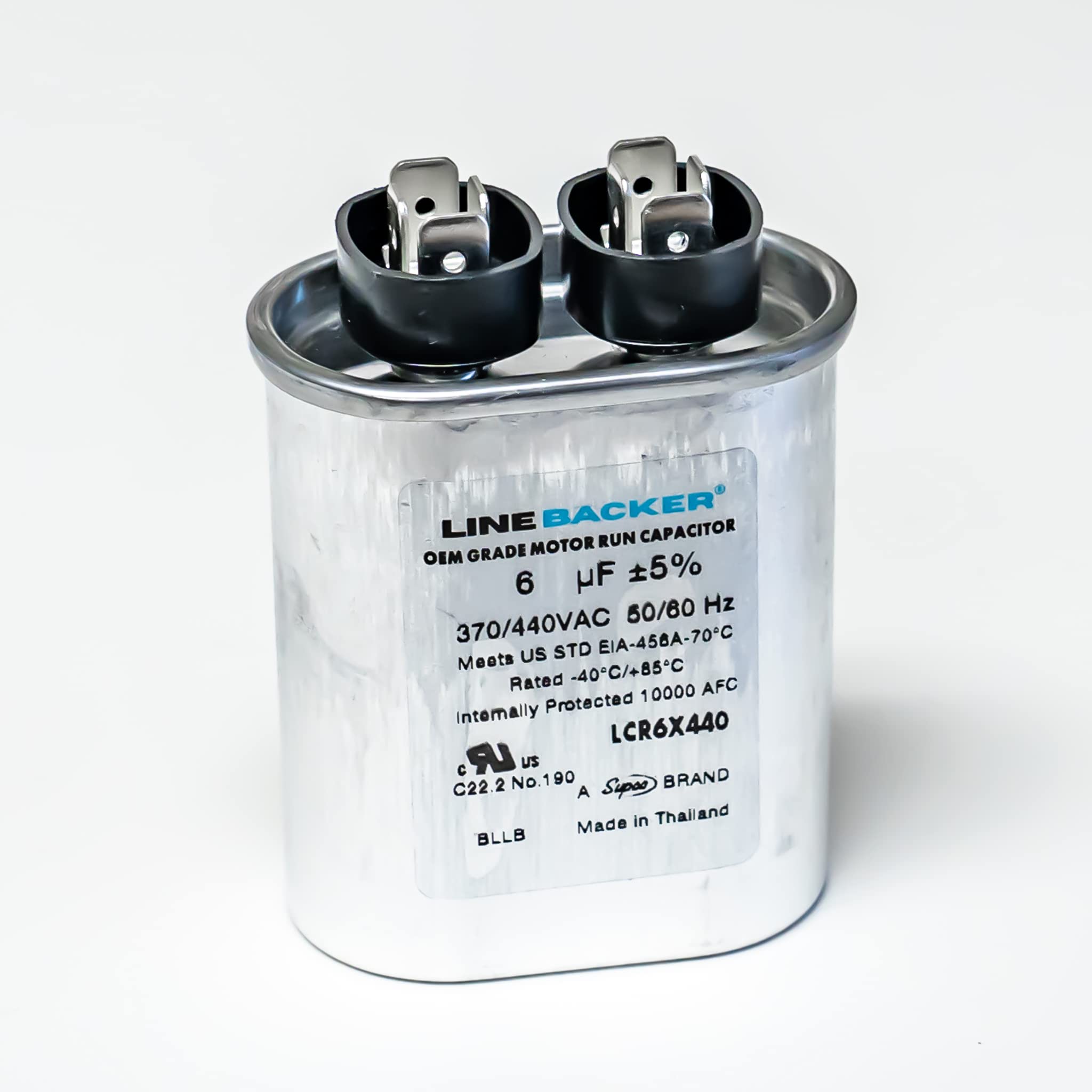

Product Description
The SUPCO LCR6X440 is an oval run dual motor run capacitor with 6 Mfd uf. These Linebacker motor run capacitors are engineered for longevity and performance and manufactured with thick polypropylene foil to handle increased operating temperatures. It is suitable for air conditioning compressors, refrigeration compressors, furnace blower motors and condenser fan motors.
- Built Tough | Meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours
- Woks Harder | Life tested to 85 degrees C operating temperature for 10,000 working hours
- Non-PCB-free oil to prevent over-heating
Product Highlights
The SUPCO LCR6X440 capacitor ensures reliable operation and is suitable for various motor applications. It has undergone continuous life, oil leak, and dielectric testing for insulation effectiveness.
Product Information
Standard Information
-
Brand: SUPCO
-
Manufacturer Part Number: LCR6X440
Technical Specifications
-
Capacitor Voltage: 370/440VAC
-
Style: Oval
-
Capacitor (MFD): 6 Mfd uf
-
Tolerance (MFD): + / - 5%
-
Operating Temperature: -40 to 85 degrees C
-
Agency: UL, VDE
-
Voltage: Up to 440 VAC
-
Foil Thickness: 6.0 µm +/- 5%
-
Standard Tolerance: +/- 5%
-
MFD Value: 6
-
Applications: Condenser fan motors, Furnace blower motors, Refrigeration Compressors, Air conditioning compressors
