Supco LCR4X440 Capacitor Oval Run 4 uf 370/440 Volts

Product Description

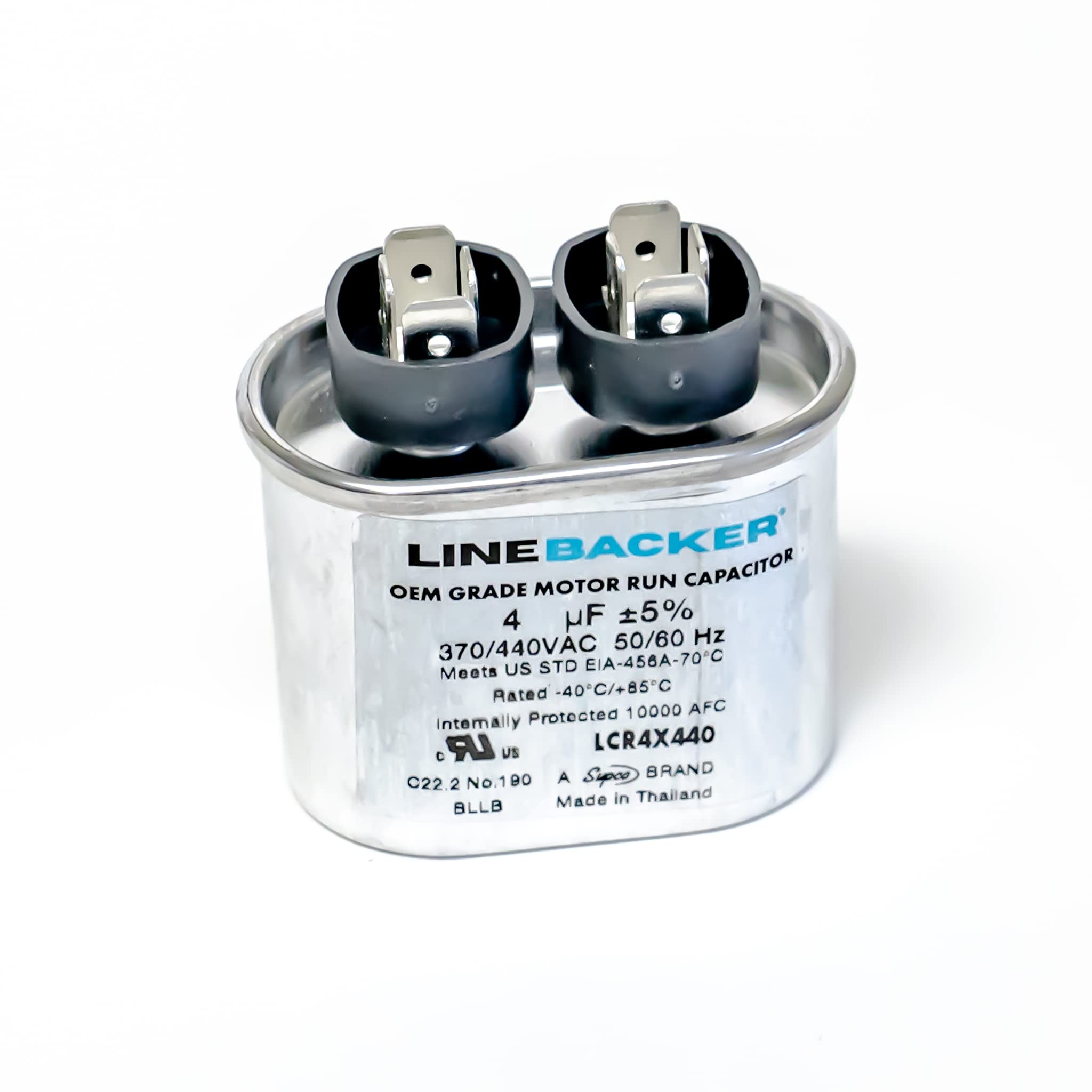

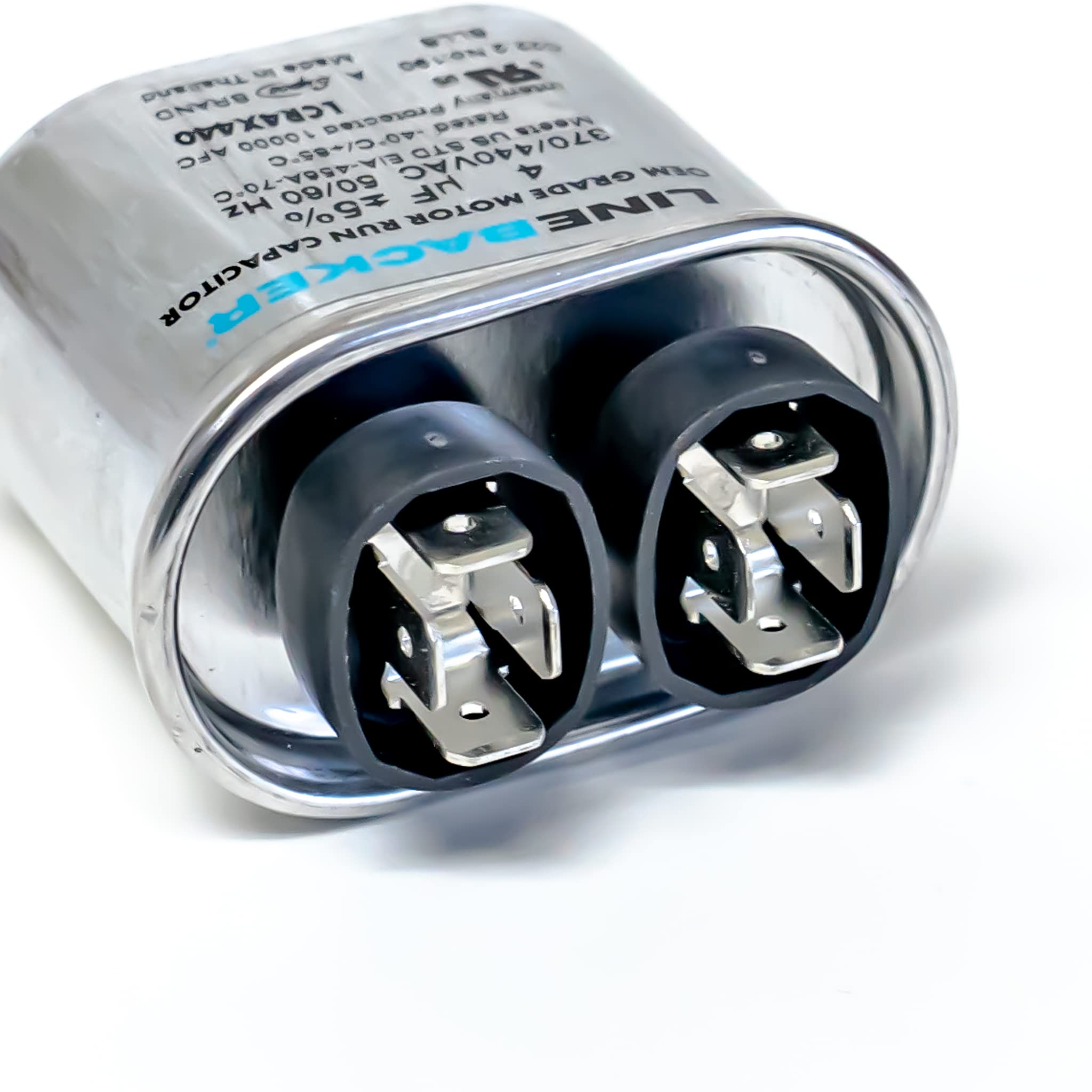

The SUPCO LCR4X440 is an oval run capacitor with 4 Mfd uf and a voltage rating of 370/440VAC. Linebacker motor run capacitors are engineered for longevity and performance and manufactured with thick polypropylene foil to handle increased operating temperatures. It is suitable for air conditioning compressors, refrigeration compressors, furnace blower motors and condenser fan motors.

• Dimensions: 2.03 in x 1.24 in x 1.57 in
• Meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours
• 10,000 AFC pressure sensitive short circuit interrupting capability

Product Highlights

The LCR4X440 capacitor is continuous life tested, oil leak tested and dielectric tested for insulation effectiveness. It is UL and VDE approved.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: LCR4X440

Technical Specifications

• Capacitor Voltage: 370/440VAC
• Capacitance: 4 Mfd uf
• Tolerance (MFD): + / - 5%
• Operating Temperature: -40 to 85 degrees C
• Agency: UL, VDE
• Style: Oval Run Capacitor
• Voltage: Up to 440 VAC
• Foil Thickness: 6.0 µm +/- 5%
• Standard Tolerance: +/- 5%
• MFD Value: 4
• Shape: Oval
• Applications: Condenser fan motors, Furnace blower motors, Refrigeration Compressors, Air conditioning compressors
• Voltage Rating: 440 V
• Temperature Rating: -40 to 185 deg F
