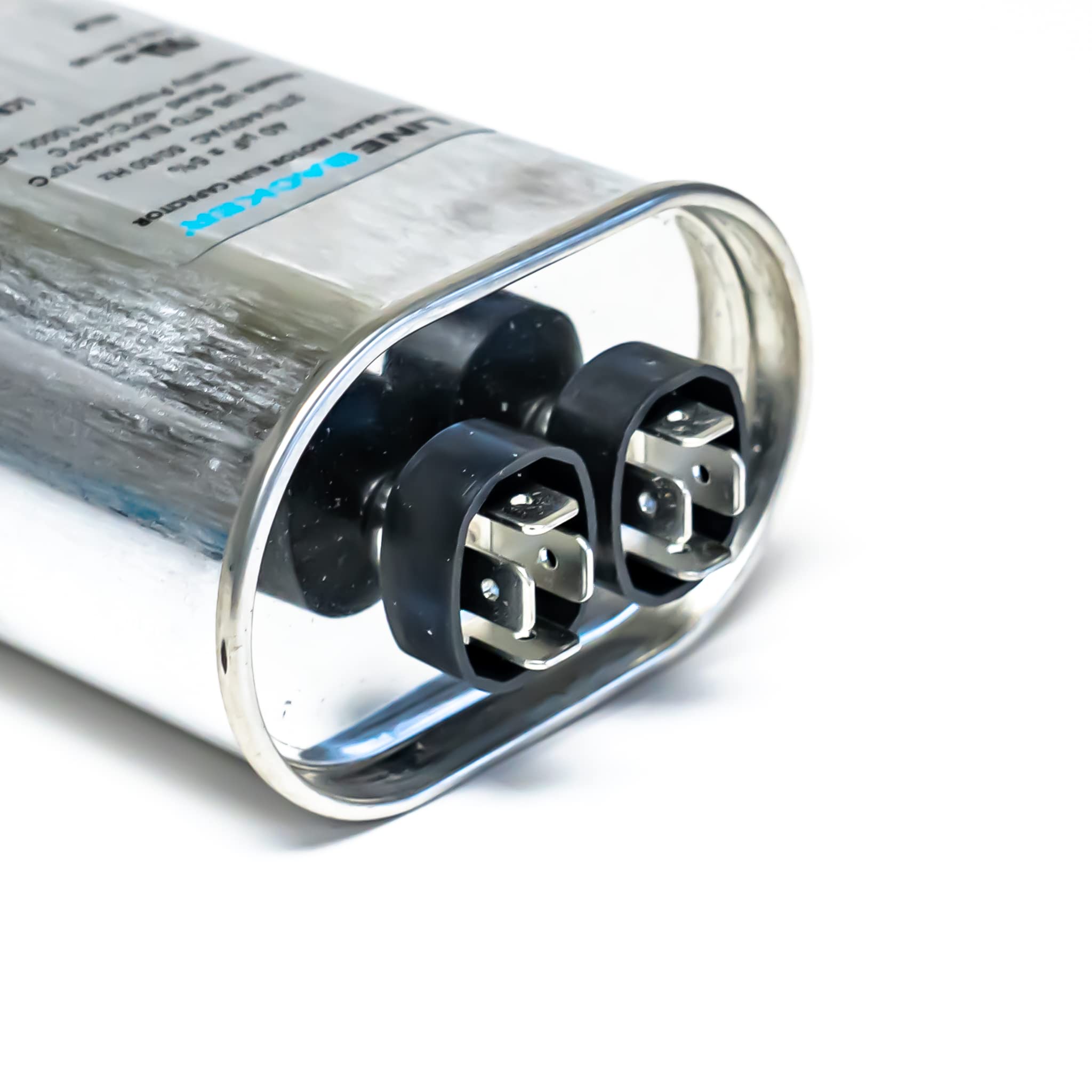

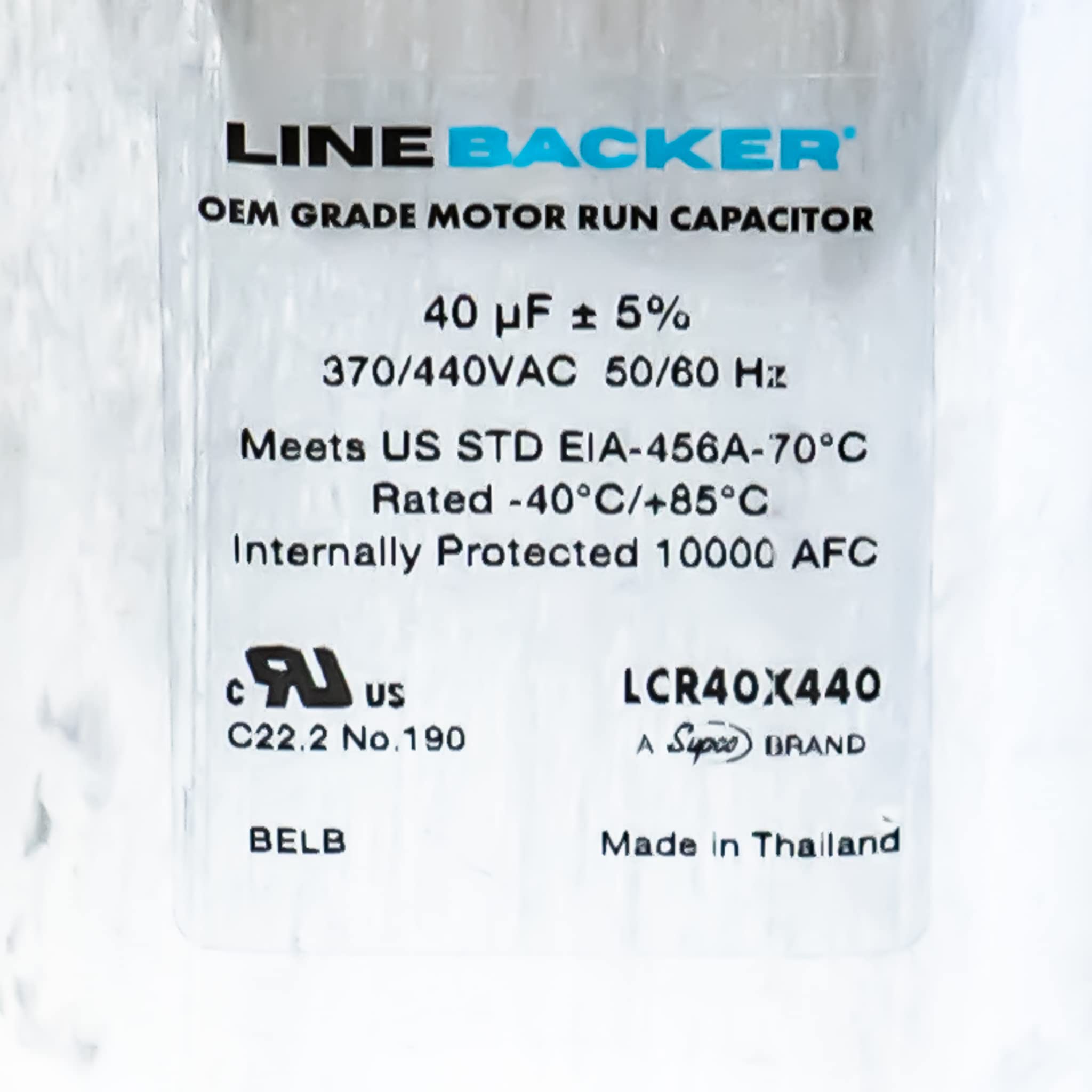

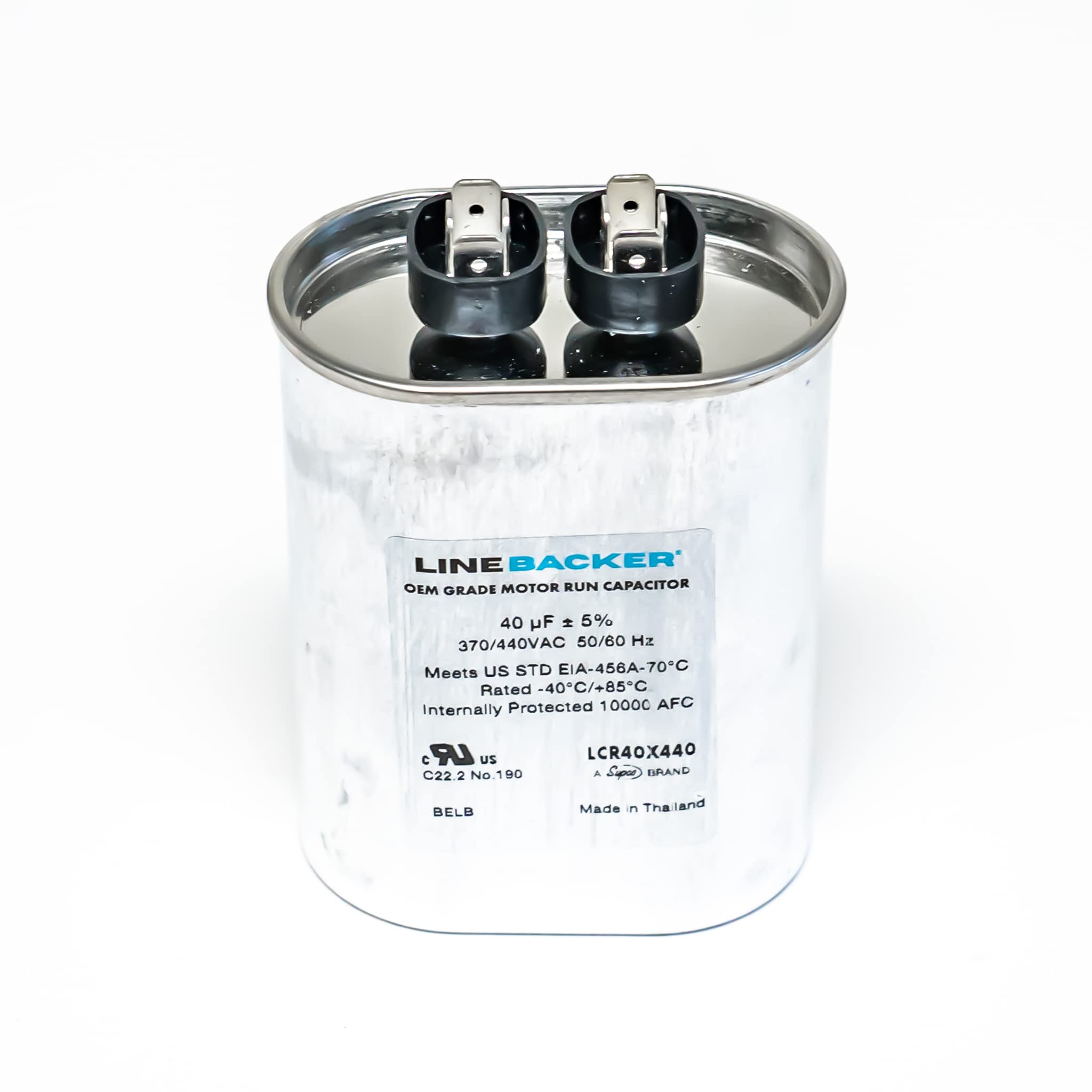

Supco LCR40X440 Capacitor Oval Run 40 uf 370/440 Volts

Product Description

The SUPCO LCR40X440 is a capacitor oval run designed for HVAC motors and compressors. This capacitor is engineered by an ISO manufacturer with over twenty years of experience in OEM capacitor fabrication. It meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours.

• Capacitor, Oval Run, 40 Mfd uf
• Dimensions: 2.8 in x 1.77 in x 3.54 in
• 10,000 AFC pressure sensitive short circuit interrupting capability

Product Highlights

The SUPCO LCR40X440 capacitor ensures longevity and performance for HVAC systems, withstanding high operating temperatures and preventing overheating.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: LCR40X440
• Country of Origin: China

Technical Specifications

• Brand: Supco
• Product Type: CAPACITOR
• Manufacturer: Supco
• Model / MPN: LCR40X440
• Voltage Rating: 440 V
• Shape: Oval
• Additional Information: -40 to 185 deg F Temperature Rating, 6 um +/-5% Foil Thickness, +/-5% Standard Tolerance
• Capacitor Voltage: 370/440VAC
• Style: Oval Run
• Capacitor (MFD): 40 Mfd uf
• Tolerance (MFD): + / - 5%
• Operating Temperature: -40 to 85 degrees F (-40 to 85 C)
• Agency: UL, VDE
• Capacitance: 40 uF
• Housing Material: Polypropylene Foil
• Overall Depth: 1.77 in
• Overall Height: 3.54 in
• Overall Width: 2.8 in
• Model: LCR40X440
• MPN: LCR40X440
• Country of Origin: China
